Three 20micro F capacitors are star-connected across a 400V, 50Hz, three-phase, three-wire supply. a) Calculate the...

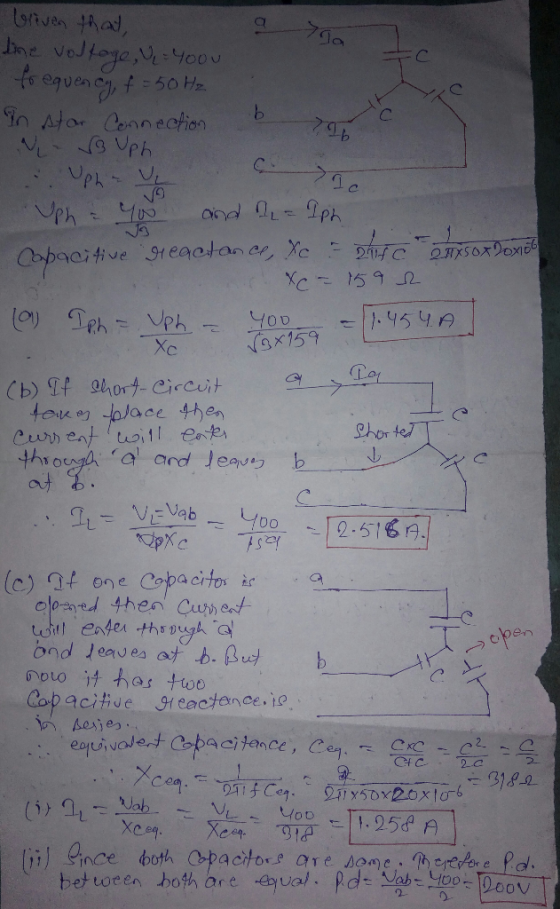

Three 20micro F capacitors are star-connected across a 400V, 50Hz, three-phase, three-wire supply. a) Calculate the current in each line. b) If one of the capacitors is short-circuited, calculate the line currents. c) If one of the capacitors is open-circuited, calculate: (i) the line currents, (ii) the p.d. across each of the other two capacitors.
Homework Answers
Add Answer to:
Three 20micro F capacitors are star-connected across a 400V,
50Hz, three-phase, three-wire supply. a) Calculate the...
