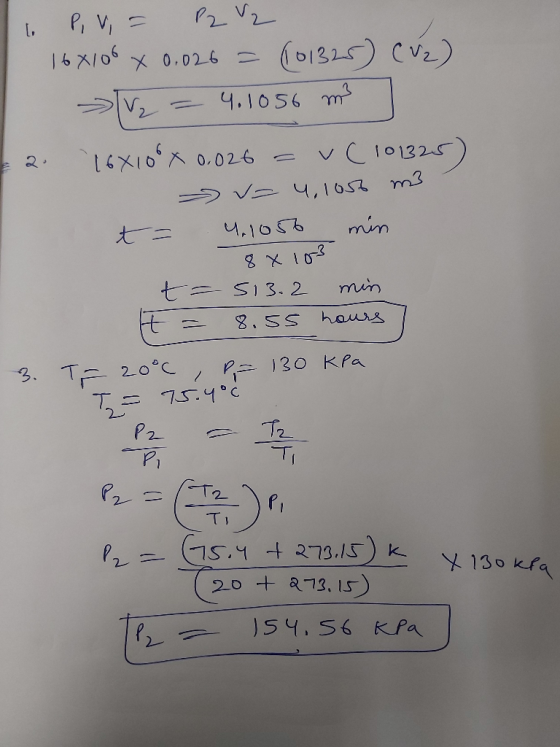

1. A patient with emphysema is breathing pure O2 through a face mask. The cylinder of O2 contains 0.0260 m3 of O2 gas at a pressure of 16.0 MPa.
What volume would the oxygen occupy at atmospheric pressure (and the same temperature)? (Atmospheric pressure = 101,325 Pa.)
______m^3
2. A patient with emphysema is breathing pure O2 through a face mask. The cylinder of O2 contains 0.0260 m3 of O2 gas at a pressure of 16.0 MPa.
If the patient takes in 8.00 L/min of O2 at atmospheric pressure, how long will the cylinder last?
________h
3. Incandescent lightbulbs are filled with an inert gas to lengthen the filament life. With the current off (at T = 20.0°C), the gas inside a lightbulb has a pressure of 130 kPa. When the bulb is burning, the temperature rises to 75.4°C. What is the pressure at the higher temperature?
___________kPa
1. A patient with emphysema is breathing pure O2 through a face mask. The cylinder of...
A cylinder of O2(g) used in breathing by emphysema patients has a volume of 8.00 L at a pressure of 16.0 atm. If the temperature of the cylinder is 33.8°C, what mass (in g) of oxygen is in the cylinder?
A 6.0-cm-diameter, 11-cm-long cylinder contains 100 mg of oxygen (O2) at a pressure less than 1 atm. The cap on one end of the cylinder is held in place only by the pressure of the air. One day when the atmospheric pressure is 100 kPa, it takes a 177 N force to pull the cap off. What is the temperature of the gas?
4. A piston/cylinder contains pure oxygen at ambient conditions 20°C, 100 kPa. The piston is moved to a volume that is seven times smaller than the initial volume in a polytropic process with exponent n = 1.25. Find the final pressure and temperature, the specific work, and the specific heat transfer. Use table A.8 to find the internal energy at each state. Plot the process in a P – v diagram. 300 TABLE A.8 Ideal Gas Properties of Various Substances,...
