A pendulum with a 1.0 m length and a 2.0 kg mass is given an initial...
A pendulum with a 1.0 m length and a 2.0 kg mass is given an initial angle of θ0 = 10◦ . Due to air resistance, the mass loses 0.05 J of energy between when it begins moving and when it crosses through equilibrium. With what speed does it cross equilibrium? [Hint: you can convert angle to height by using the formula h = L(1 − cos θ). Use this to find the initial gravitational potential energy.]

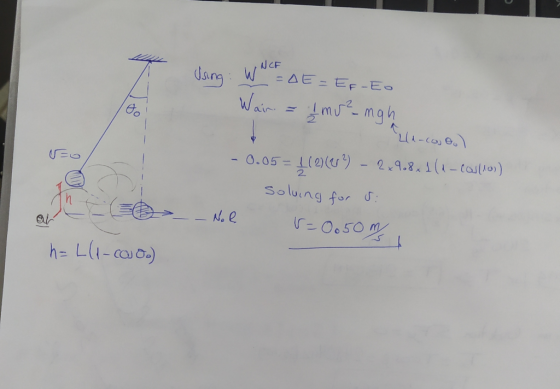

Can you draw a picture to help explain this as well as solve it
Homework Answers
Add Answer to:
A pendulum with a 1.0 m length and a 2.0 kg mass is given an
initial...
Derive the expression for the initial velocity v of a ballistic pendulum in terms of the...
Derive the expression for the initial velocity v of a ballistic pendulum in terms of the swept-out angle theta. Use the following equations of momentum and energy conservation... When the projectile and the pendulum stick together, they have total mass m + M and we define their combined velocity to be V⃗ . The relationship from conservation of momentum is: mv = (m + M)V⃗ Conservation of energy requires the initial kinetic energy of the pendulum system to equal the...
A pendulum of length L = 1.0 meter and bob with mass m = 1.0 kg...
A pendulum of length L = 1.0 meter and bob with mass m = 1.0 kg is released from rest at an angle 0 = 30' from the vertical. When the pendulum reaches the vertical position, the bob strikes a mass M= 3.0 kg that is resting on a frictionless table that has a height h = 0.85m. (a). When the pendulum reaches the vertical position, calculate the speed of the bob just before it strikes the box. (6 marks]...
A simple pendulum has a mass 6.3 kg, length 2.42 meters, and initial velocity 4.8 in...
A simple pendulum has a mass 6.3 kg, length 2.42 meters, and initial velocity 4.8 in meters/second when the pendulum is vertical downward. What is the largest angle \theta θ in degrees that the mass will later reach?
The length of a simple pendulum undergoing SHM is 2.0 m. If the amplitude is 15...
The length of a simple pendulum undergoing SHM is 2.0 m. If the amplitude is 15 degrees, what is the gravitational potential energy of the pendulum's bob if it has a mass of 0.100 kg? How fast does the pendulum's bob pass through the equilibrium position?
NEED ASAP A pendulum is made up of a massless rod of length 1.6 m attached...
NEED ASAP A pendulum is made up of a massless rod of length 1.6 m attached to a 4 kg mass. It’s released from rest when the pendulum is horizontal. When the pendulum is vertical, the mass is moving at 4.8 m/s. a) Taking the gravitational potential energy to be zero at the bottom of the swing, what is the initial total mechanical energy? b) How much energy is lost due to air resistance as the pendulum moves from its...
C yeTAUTO 73.WA.U26. My Notes Ask Your Teach A pendulum bob with a mass of 0.35...
C yeTAUTO 73.WA.U26. My Notes Ask Your Teach A pendulum bob with a mass of 0.35 kg is attached to a 1.5 m long string as shown 1.5 m B As the pendulum bob swings from point A, where the angle 0 pendulum bob-earth system. 34, to point B at the bottom of its arc, determine the change in the gravitational potential energy of the 0.8796 Where is a convenient location for zero gravitational potential energy? What is it about...
A simple pendulum has a rod of length LL with a bob of mass m=0.100 kg...
A simple pendulum has a rod of length LL with a bob of mass
m=0.100 kg at the end of the rod. The rod is supposed to be very
light and all the mass is imagined to be concentrated in the
bob.
A) What is the tension in the string when the pendulum swings by
an angle θ=5.00∘?
B) What is the magnitude of the restoring force on the bob when
θ=5.00∘?
C) If you drop a perpendicular from the...
A simple pendulum with mass m = 2.1 kg and length L = 2.3 m hangs...
A simple pendulum with mass m = 2.1 kg and length L = 2.3 m hangs from the ceiling. It is pulled back to an small angle of θ = 11.9° from the vertical and released at t = 0. 1)What is the period of oscillation? 2)What is the magnitude of the force on the pendulum bob perpendicular to the string at t=0? 3)What is the maximum speed of the pendulum? 5)What is the magnitude of the tangential acceleration as...
A pendulum consists of a mass m suspended from a string of length L. When the...
A pendulum consists of a mass m suspended from a string of length L. When the pendulum is swinging, how much greater is the mass’s potential energy when the string is displaced from the vertical by the angle θ than when the mass is at the lowest position?
A simple pendulum of mass 0.2 kg and length 0.4 m oscillates freely. At the end...
A simple pendulum of mass 0.2 kg and length 0.4 m oscillates
freely.
At the end of its swing (point B), it has 0.45 J of
gravitational potential energy with respect to its lowest
point.
Determine the total mechanical energy of the pendulum when it is
halfway in height (point A) between its lowest point and the end of
its swing.
Show your calculations/explain your reasoning.
В A lowest point
A pendulum of length L = 1.0 meter and bob with mass m = 1.0 kg is released from rest at an angle 0 = 30' from the vertical. When the pendulum reaches the vertical position, the bob strikes a mass M= 3.0 kg that is resting on a frictionless table that has a height h = 0.85m. (a). When the pendulum reaches the vertical position, calculate the speed of the bob just before it strikes the box. (6 marks]...
C yeTAUTO 73.WA.U26. My Notes Ask Your Teach A pendulum bob with a mass of 0.35 kg is attached to a 1.5 m long string as shown 1.5 m B As the pendulum bob swings from point A, where the angle 0 pendulum bob-earth system. 34, to point B at the bottom of its arc, determine the change in the gravitational potential energy of the 0.8796 Where is a convenient location for zero gravitational potential energy? What is it about...
A simple pendulum has a rod of length LL with a bob of mass
m=0.100 kg at the end of the rod. The rod is supposed to be very
light and all the mass is imagined to be concentrated in the
bob.
A) What is the tension in the string when the pendulum swings by
an angle θ=5.00∘?
B) What is the magnitude of the restoring force on the bob when
θ=5.00∘?
C) If you drop a perpendicular from the...
A simple pendulum of mass 0.2 kg and length 0.4 m oscillates
freely.
At the end of its swing (point B), it has 0.45 J of
gravitational potential energy with respect to its lowest
point.
Determine the total mechanical energy of the pendulum when it is
halfway in height (point A) between its lowest point and the end of
its swing.
Show your calculations/explain your reasoning.
В A lowest point
