A simple ideal Brayton cycle is modified to incor- porate multistage compression with intercooling, multistage expansion...

A simple ideal Brayton cycle is modified to incor- porate multistage compression with intercooling, multistage expansion with reheating, and regeneration without chang- ing the pressure limits of the cycle. As a result of these modifications,
(a) Does the net work output increase, decrease, or remain the same?
(b) Does the back work ratio increase, decrease, or remain the same?
(c) Does the thermal efficiency increase, decrease, or remain the same?
(d) Does the heat rejected increase, decrease, or remain the same?

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

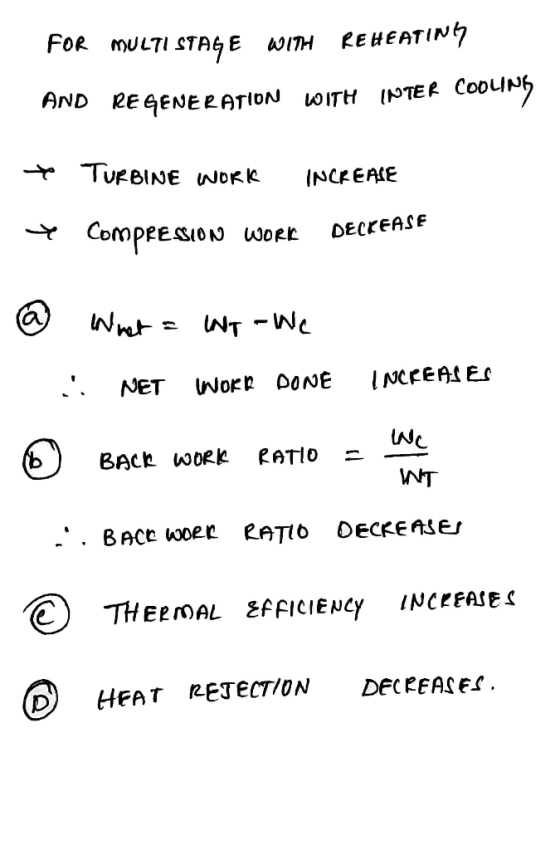

Answer #1

0 0
Add a comment
