A motor circuit is providing 480 volts and 25 amps to a 3-phase motor that is...

A motor circuit is providing 480 volts and 25 amps to a 3-phase motor that is rated at 10 HP

Apparent power =20.784 KVA

True Power = 7.46 KW

Power Factor = 36 %

Reactive Power = 19.4 kVAR

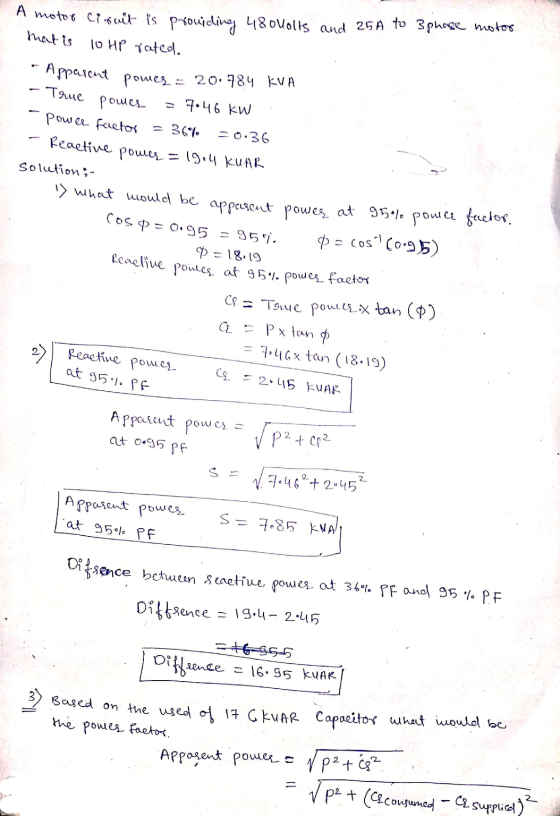

What would the apparent power be at 95% power factor?

What would the reactive power be at 95% power factor?

What is the difference between the two reactive powers?

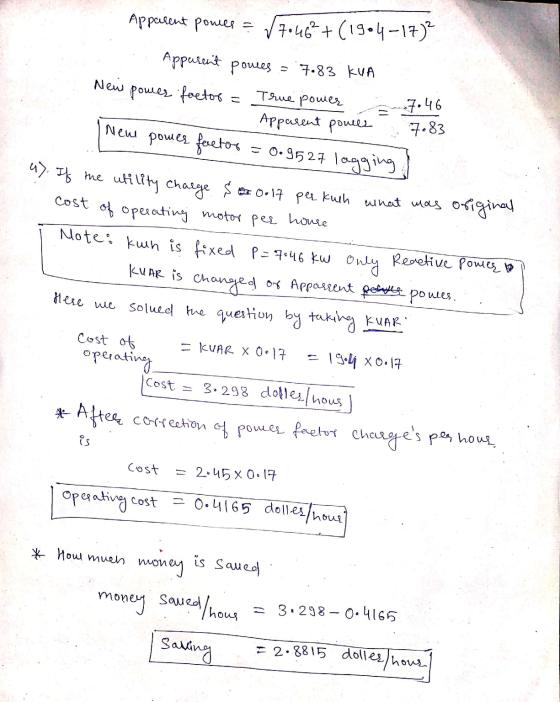

Based on the use of 17 CkVAR of capacitance, what would the new power factor be?

If the utility charged $0.17 per kWh, what was the original cost of operating the motor per hour before correction?

If the utility charged $0.17 per kWh, what was the original cost of operating the motor per hour after correction?

If the utility charged $0.17 per kWh, how much money is saved per hour with the power factor corrected?

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
