1. Two 5.0 F capacitors are connected in parallel. A third 5.0 F capacitor is connected...

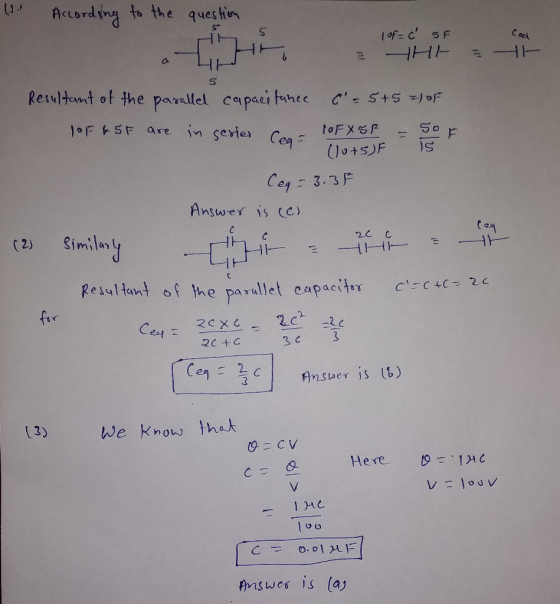

1. Two 5.0 F capacitors are connected in parallel. A third 5.0 F capacitor is connected in series to the first two. What is the equivalent capacitance? (a) 5.0 F (b) 15.0 F (c) 3.3 F (d) 6.7 F
2. Two capacitors, each with a capacitance of C, are connected in parallel. Those two are then connected in series to another capacitor with capacitance of C. What is the equivalent capacitance of this arrangement of capacitors? (a) C/3 (b) 2C/3 (c) 3C (d) 3C/2
3. Determine the capacitance of a device whose plates store 1.0 μc of charge when connected across 100 v of potential difference. (a) 0.01 μF (b) 10 μF (c) 1 μF (d) 100 μF
Homework Answers
Add Answer to:
1. Two 5.0 F capacitors are connected in parallel. A third 5.0 F
capacitor is connected...
Two capacitors connected in parallel produce an equivalent capacitance of 40.0 μF but when connected in...
Two capacitors connected in parallel produce an equivalent capacitance of 40.0 μF but when connected in series the equivalent capacitance is only 7.1 μF . What is the individual capacitance of each capacitor?
Two capacitors, C1 = 4.41 μF and C2 = 13.9 μF, are connected in parallel, and...
Two capacitors, C1 = 4.41 μF and C2 = 13.9 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Two capacitors, C1 = 4.35 μF and C2 = 12.5 μF, are connected in parallel, and...
Two capacitors, C1 = 4.35 μF and C2 = 12.5 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Two capacitors, C1 = 4.74 μF and C2 = 10.8 μF, are connected in parallel, and...
Two capacitors, C1 = 4.74 μF and C2 = 10.8 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Two capacitors connected in parallel produce an equivalent capacitance of 45.0 μF but when connected in...
Two capacitors connected in parallel produce an equivalent capacitance of 45.0 μF but when connected in series the equivalent capacitance is only 4.4 μF . What is the individual capacitance of each capacitor? Enter your answers in ascending order. Express your answers using two significant figures separated by a comma.
5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a...
5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a 100-V battery. The battery is then removed and the separation between the plates of one of the capacitors is doubled. Find the charge on each capacitor 6. For the circuit shown below, Find: (a) The equivalent capacitance (b) The charge on each capacitor (c) The voltage across each capacitor (d) The total energy stored 0.3 F 10.0V 1.0 uF 0.25 uf
The C1 -2.0 uF and 3.0 uF capacitor equivalent capacitance is X1-5.0 μF. Likewise, the C2-3.0...
The C1 -2.0 uF and 3.0 uF capacitor equivalent capacitance is X1-5.0 μF. Likewise, the C2-3.0 μF and 6.0 μF capacitors are also in parallel and have an equivalent capacitance of Y1-9.0屹The upper branch in Figure 26.11b now consists of a 4.0 μF capacitor and a 5.0 μF In series, which combine to give x2 according to the following equation. rs are in parallel and combine according to Ceq C1+C2. Their Likewise, the lower branch in Figure 26.11b consists of...
Four capacitors are connected in parallel. Two of the capacitors are each 20.6 nF. The third...
Four capacitors are connected in parallel. Two of the capacitors are each 20.6 nF. The third capacitor is 14.3 nF. The fourth capacitor has a capacitance of 73.4 nF. What is the value of the equivalent capacitance? Select one: a. 129 nF b. 108 nF c. 38.5 nF d. 143 nF e. 24.2 nF
Two capacitors,C1 = 19.0 μF andC2 = 45.0 μF, are connected in series,and...
Two capacitors,C1 = 19.0 μF andC2 = 45.0 μF, are connected in series, and a 21.0-V battery is connected across them.(a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor.equivalent capacitance 13.3 μFtotal energy stored 2.93e-3 J(b) Find the energy stored in each individual capacitor.(c) Show that the sum of these two energies is the same as the energy found in part (a). Will this equality always be true, or does it depend on the number of capacitors and their...
Two capacitors, C1 = 2.0 F and C2 = 16.0 F, are connected in parallel. What...
Two capacitors, C1 = 2.0 F and C2 = 16.0 F, are connected in parallel. What is the equivalent capacitance of the combination? Calculate the equivalent capacitance of the two capacitors if they are connected in series.
5. A parallel combination of two identical 2.0 uF parallel plate capacitors is connected to a 100-V battery. The battery is then removed and the separation between the plates of one of the capacitors is doubled. Find the charge on each capacitor 6. For the circuit shown below, Find: (a) The equivalent capacitance (b) The charge on each capacitor (c) The voltage across each capacitor (d) The total energy stored 0.3 F 10.0V 1.0 uF 0.25 uf
The C1 -2.0 uF and 3.0 uF capacitor equivalent capacitance is X1-5.0 μF. Likewise, the C2-3.0 μF and 6.0 μF capacitors are also in parallel and have an equivalent capacitance of Y1-9.0屹The upper branch in Figure 26.11b now consists of a 4.0 μF capacitor and a 5.0 μF In series, which combine to give x2 according to the following equation. rs are in parallel and combine according to Ceq C1+C2. Their Likewise, the lower branch in Figure 26.11b consists of...
Four capacitors are connected in parallel. Two of the capacitors are each 20.6 nF. The third capacitor is 14.3 nF. The fourth capacitor has a capacitance of 73.4 nF. What is the value of the equivalent capacitance? Select one: a. 129 nF b. 108 nF c. 38.5 nF d. 143 nF e. 24.2 nF
