Ethylene gas and steam at 473.15 K (200°C) and atmospheric pressure are fed to a reaction...

Ethylene gas and steam at 473.15 K (200°C) and atmospheric pressure are fed to a reaction process as an equi-molar mixture. The process produces ethanol with complete conversion by the reaction:

The liquid ethanol exits the process at 298.15 K (25°C). What is the heat transfer associated with this overall process per mole of ethanol produced?

Calculate using Heat of Reaction method and Heat of Formation method.

Take and . (HINT: Take 100 mol basis).

engineering   Chemical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

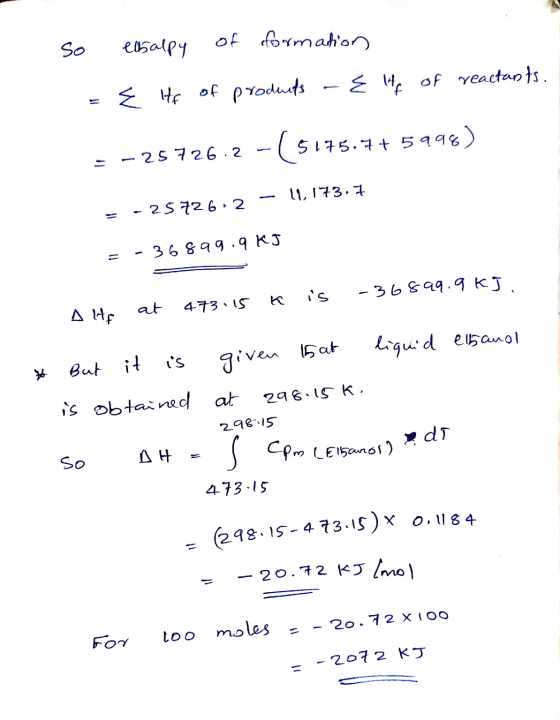

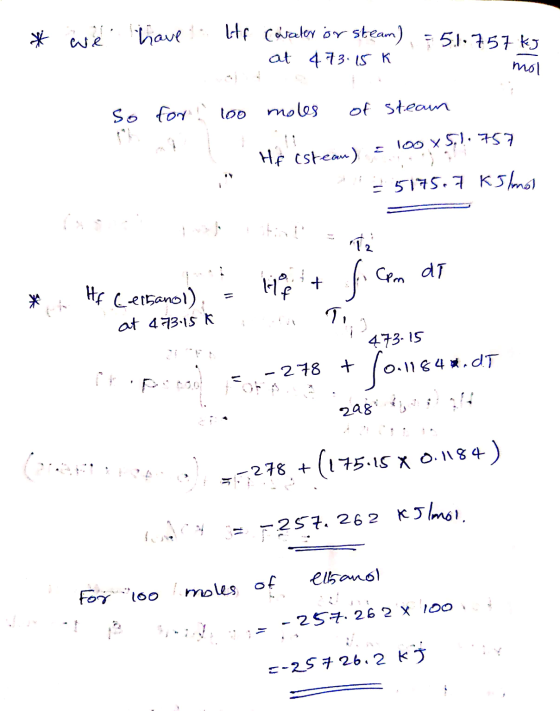

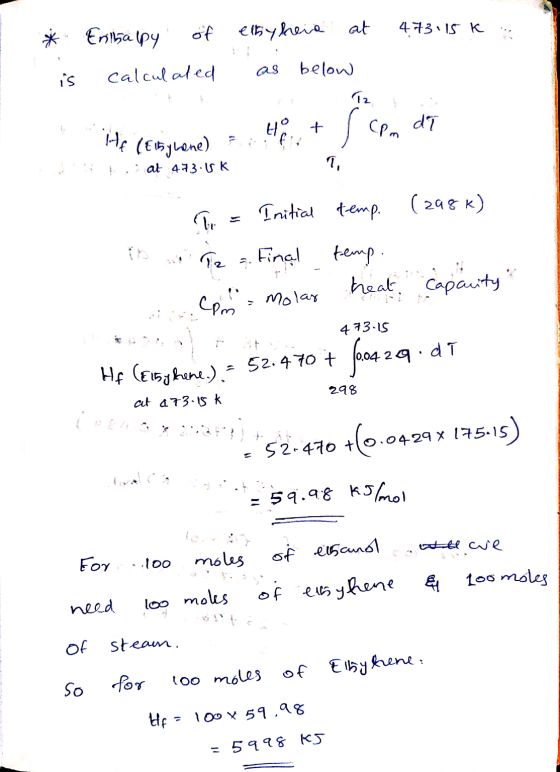

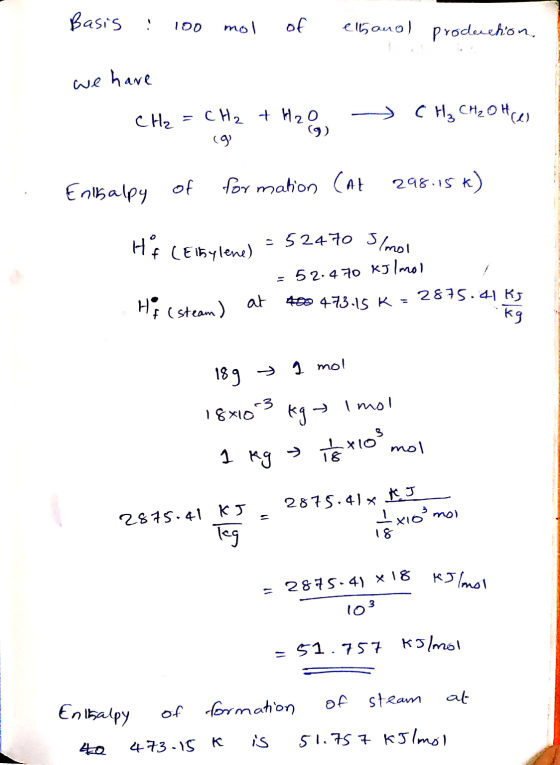

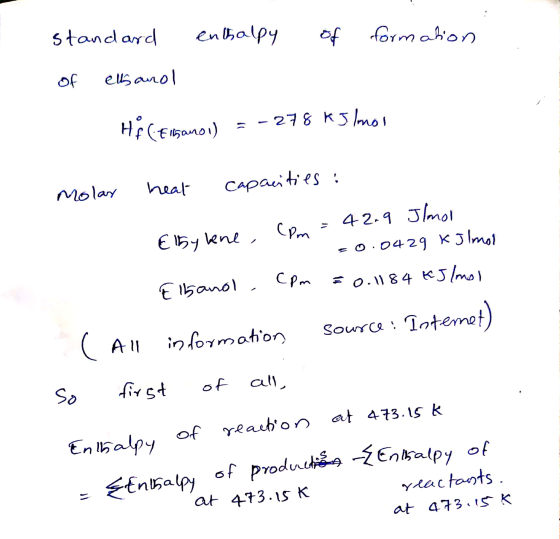

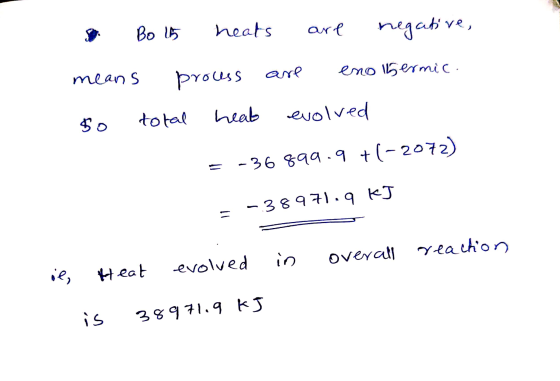

Answer #1

0 0
Add a comment
