Question

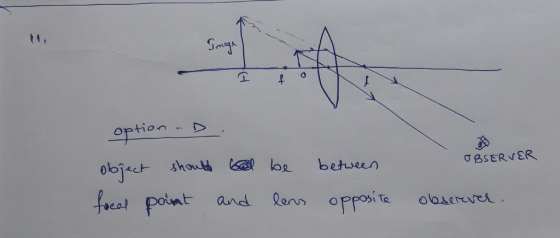

11. In order to produce a magnified image using a converging lens where should you put the object?

A. between the focal point and the lens, on the opposite side from the image

B. between the focal point and the lens, on the same side as the observer

C. outside the focal point, on the same side as the observer

D. between the focal point and the lens, on the opposite side from the observer

E. outside the focal point, on the opposite side from the observer

12. Which arrangement always leads to a negative image distance?

A. an inverted image

B. light rays converging on a virtual point, opposite the side of the lens they exited

C. a converging lens

D. an object located at essentially infinite distance

E. light rays converging on a point, on the same side of the lens where they exited

Answer 1

12. option B because then the image is formed on the same side of the object, hence negative, as shown in the figure of previous problem.
