For N=3, L=4000, B=9600, p=1024, H=16, S=0.2, D=0.001, compute the end-to-end delay for circuit, virtual-circuit, and...

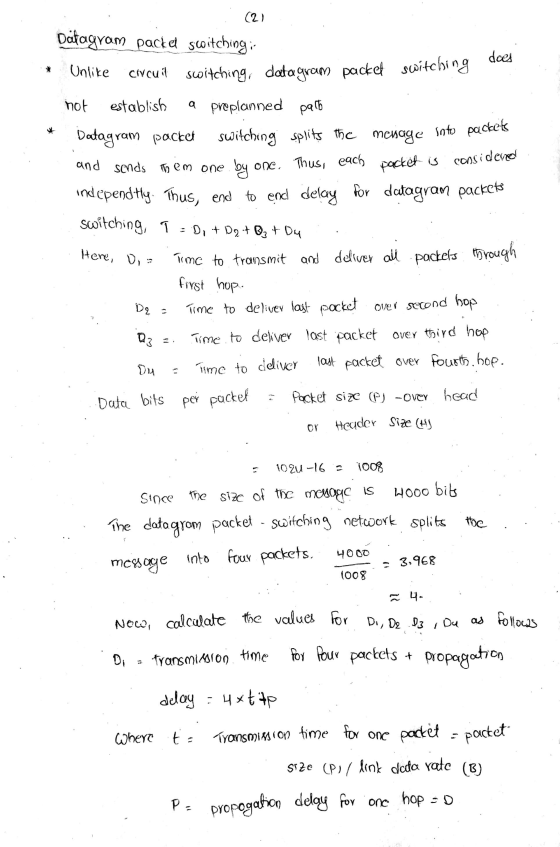

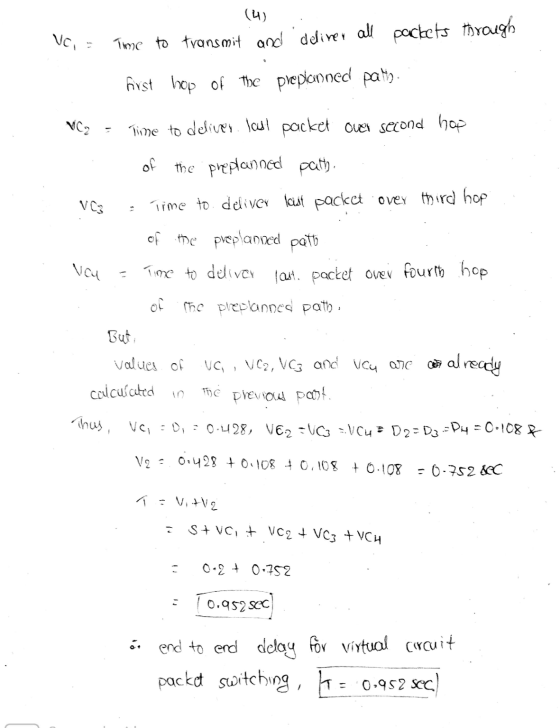

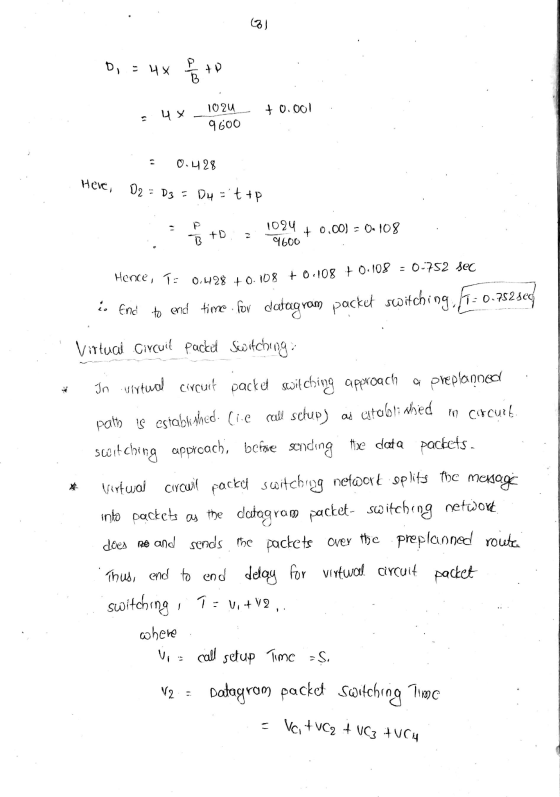

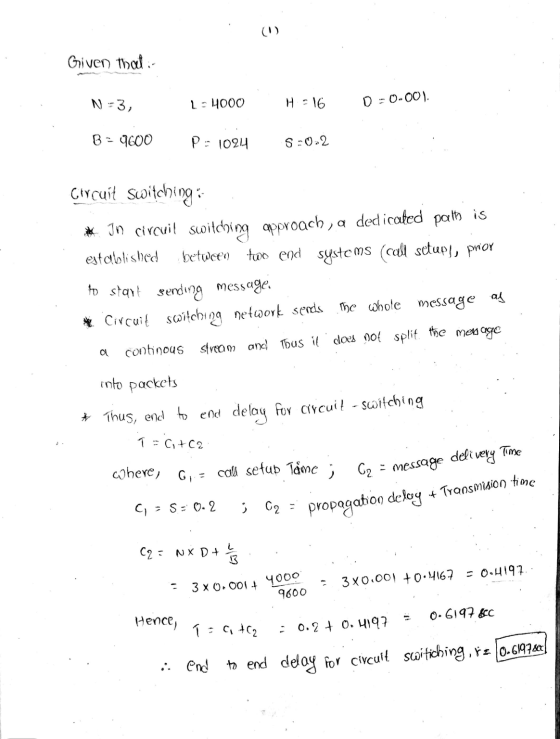

For N=3, L=4000, B=9600, p=1024, H=16, S=0.2, D=0.001, compute the end-to-end delay for circuit, virtual-circuit, and packet switching. Assume there are no acknowledgements, and no processing delay at the nodes.
Homework Answers
please give positive rating if you
understood the answer.. thanksAdd Answer to:
For N=3, L=4000, B=9600, p=1024, H=16, S=0.2, D=0.001, compute
the end-to-end delay for circuit,
virtual-circuit, and...
