1) a. Describe how 1-bit adder circuits can be used to build a 4-bit adder. Include...

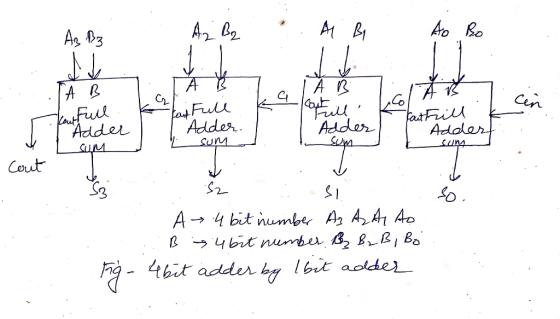

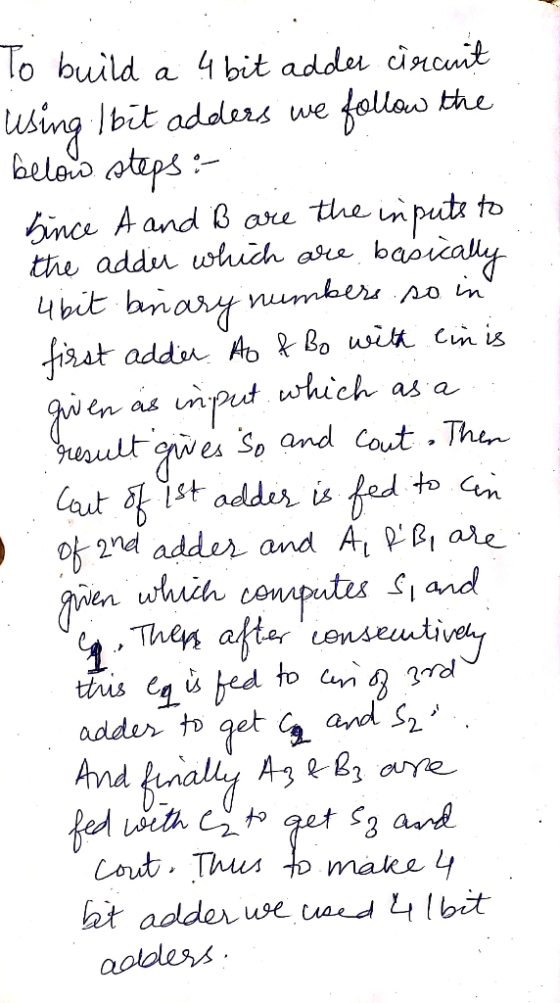

1) a. Describe how 1-bit adder circuits can be used to build a 4-bit adder. Include a block diagram.

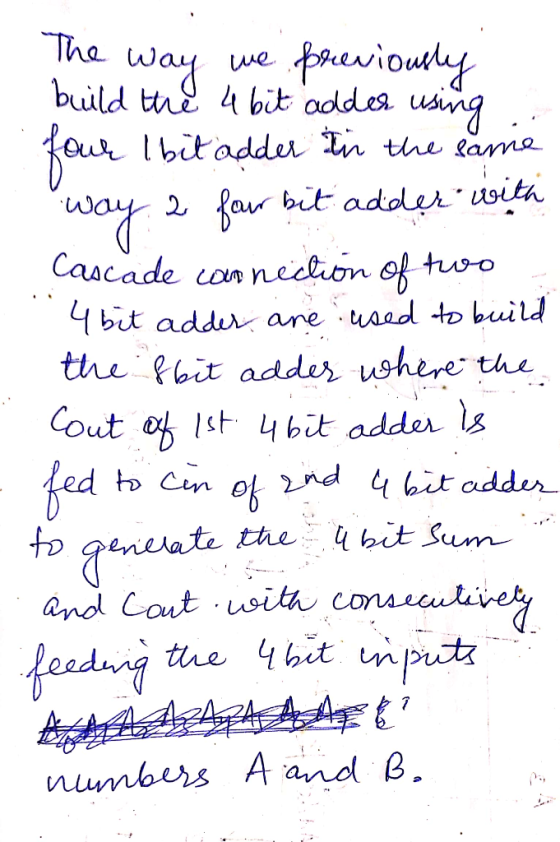

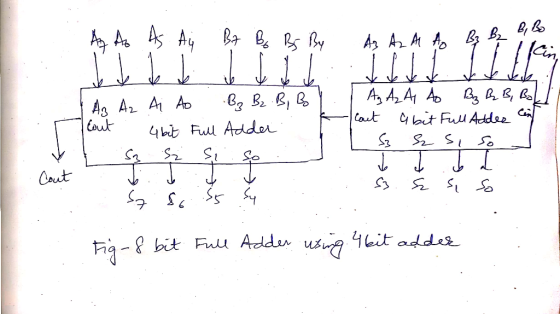

b. Describe how two 4-bit adder circuits can be used to build an 8-bit adder. Include a block diagram, using bus notation.

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
