2. Design an AC-coupled emitter-follower, following the design steps given in the text, section 2.2.5. Your...

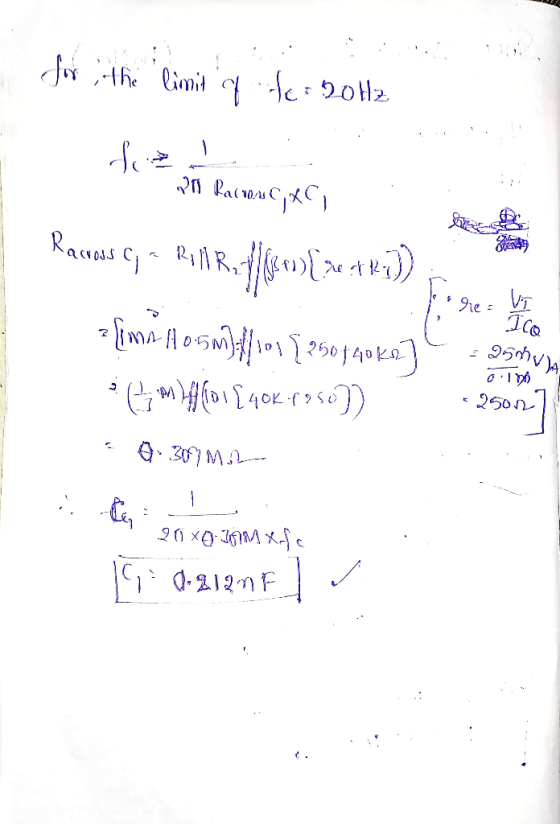

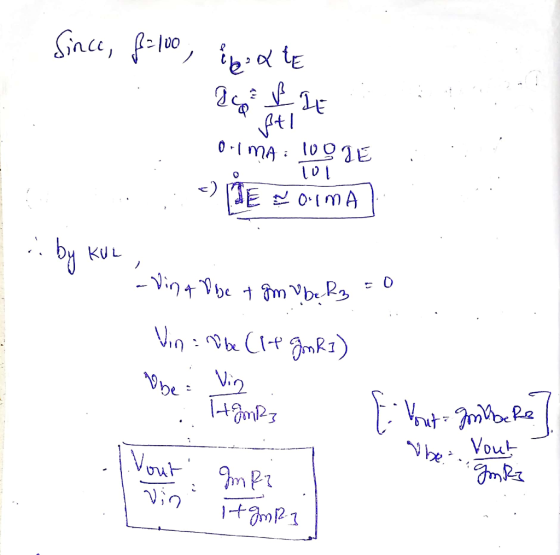

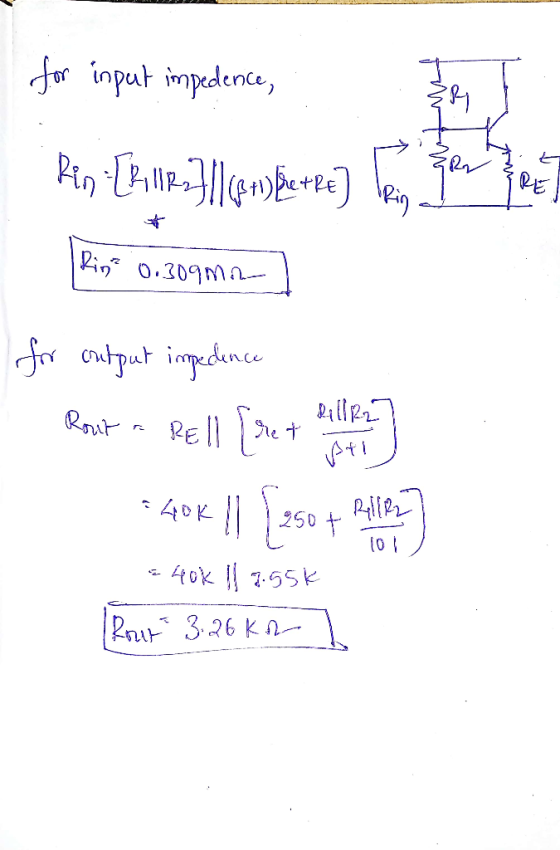

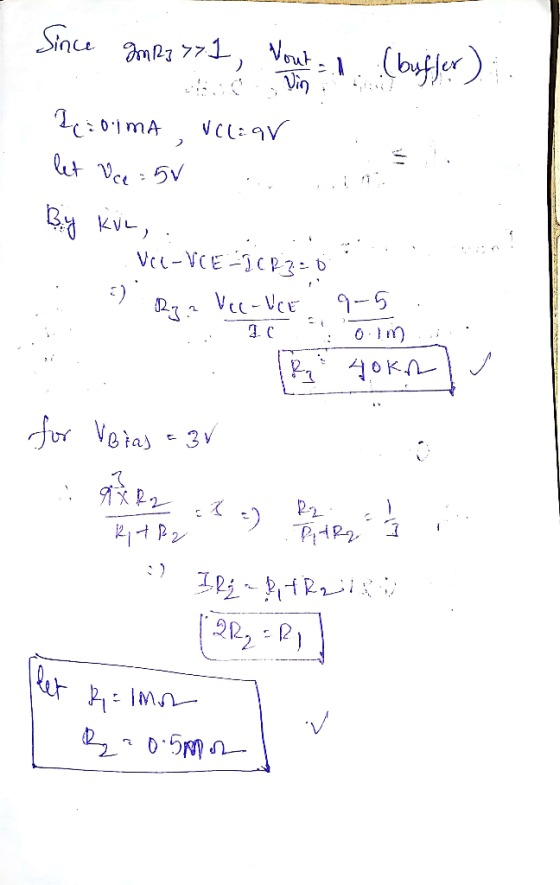

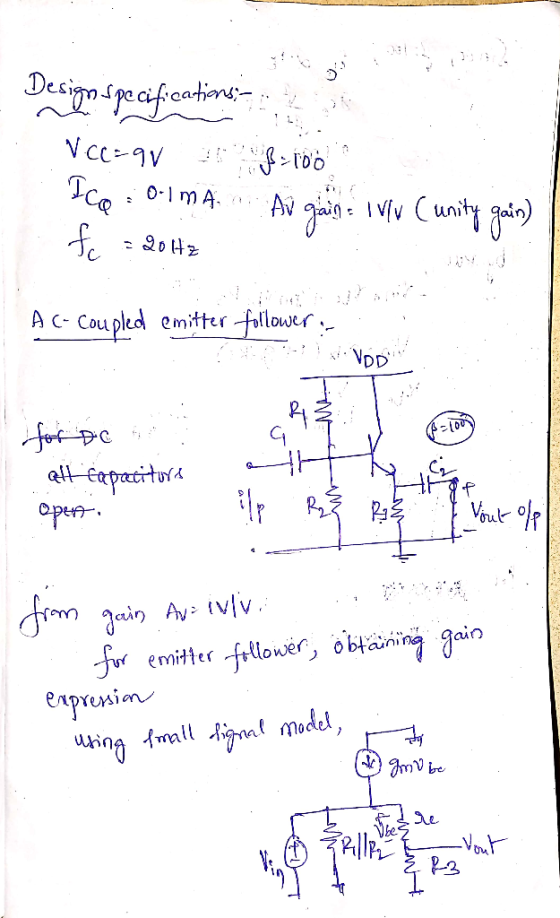

2. Design an AC-coupled emitter-follower, following the design steps given in the text, section 2.2.5. Your design must use the following criteria: VCC = 9.0V, and quiescent current of about 0.1 mA. The frequency range should be above 20 Hz. After completing your design, determine the input and output impedance, assuming β = 100.
Homework Answers
