Consider the following capacitors: C1 has an area of 2.0 cm2 and a separation distance of...

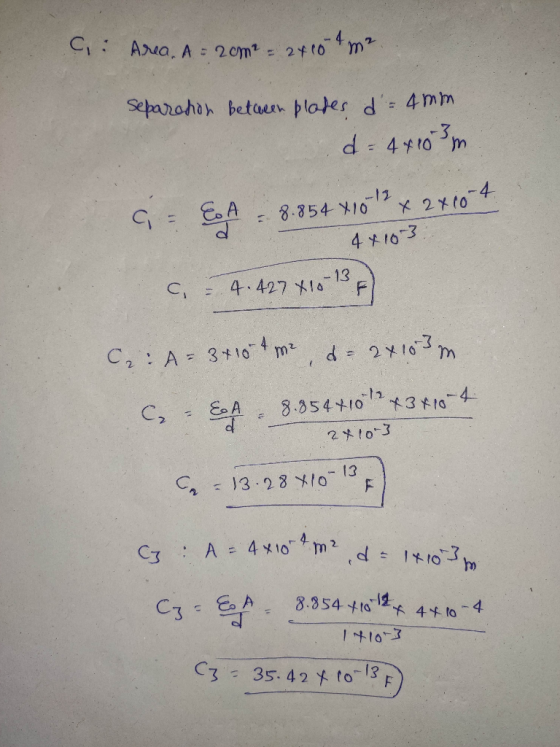

Consider the following capacitors: C1 has an area of 2.0 cm2 and a separation distance of 4.0 mm; C2 has an area of 3.0 cm2 and a separation distance of 2.0 mm; C3 has an area of 4.0 cm2 and a separation distance of 1.0 mm; C4 has an area of 2.0 cm2 and a separation distance of 2.0 mm. Rank the capacitors based on their capacitance from highest to lowest. Show one sample calculation of how you determined the capacitance.

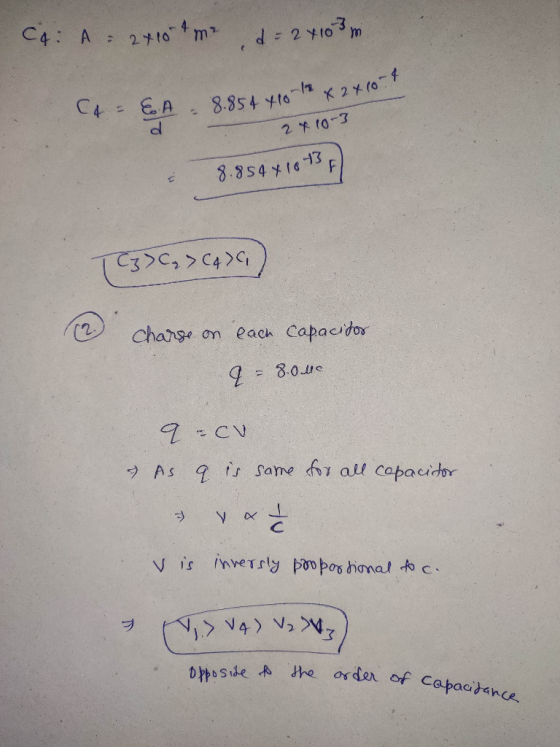

2. Each of the capacitors in the previous problem is given a charge of 8.0 µC. Rank the potential of each capacitor from highest to lowest. Show one sample calculation.
Homework Answers
Add Answer to:
Consider the following capacitors: C1 has an area of 2.0 cm2 and
a separation distance of...
1 of 1 PHYSICS 1404 Lab Homework - Capacitance her was a spordi det 20. Charles...
1 of 1 PHYSICS 1404 Lab Homework - Capacitance her was a spordi det 20. Charles cakestatief how you did the capacitance 13 2. Bachof the capacitors in the previous problem is peace Rank chapter from west Showman (10 PHYSICS 1404 Lab Homework - Capacitance This homework will be due at 11:59 PM on Tuesday, June 30. 1. Consider the following capacitors: C has an area of 4.0 cm and a separation distance of 2.0 mm: C, has an area...
Problem 5 In the figure below C1 2.0 μF, G 10.0pE, C3 3,0 μF , C.-6.0 μF.G-4.0 μ. The applied potential difference between a and b is Vab 10V. a) [4 points] Calculate the equivalent capacitance o...
Problem 5 In the figure below C1 2.0 μF, G 10.0pE, C3 3,0 μF , C.-6.0 μF.G-4.0 μ. The applied potential difference between a and b is Vab 10V. a) [4 points] Calculate the equivalent capacitance of the network between points a and b. b) [8 pointsl Calculate the charge on each capacitor and the potential difference across each capacitor. c) Once all the capacitors are charged, using an insulating handle, disconnect Ci and now you have C alone. Assume...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 V 2.5 V 4.0 V 2.0 V 3.0 V
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C3? C4 C1 C2 C3 1.25 V 3.0 V 4.0 V 2.0 V 2.5 V
Problem 5 In the figure below C1 2.0 μF, G 10.0pE, C3 3,0 μF , C.-6.0...
Problem 5 In the figure below C1 2.0 μF, G 10.0pE, C3 3,0 μF , C.-6.0 μF.G-4.0 μ. The applied potential difference between a and b is Vab 10V. a) [4 points] Calculate the equivalent capacitance of the network between points a and b. b) [8 pointsl Calculate the charge on each capacitor and the potential difference across each capacitor. c) Once all the capacitors are charged, using an insulating handle, disconnect Ci and now you have C alone. Assume...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 VO 2.5 V 4.0 V 2.0 V 3.0 V O 1.25 V
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and
C3=C4=4 F. The battery voltage
V0=5 V. When the circuit is connected what will be
voltage across C3?
1.25 V
3.0 V
4.0 V
2.0 V
2.5 V
C4 C1 C2 C3 G V.
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and
C3=C4=4 F. The battery voltage
V0=5 V. When the circuit is connected what will be
voltage across C4?
2.5 V
4.0 V
2.0 V
3.0 V
1.25 V
C4 C1 C₂ C3 V.
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F,...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C C2 C3 VO O 2.5 V 4.0 V 2.0 V O 3.0 V 01.25 V
The figure shows a circuit with an ideal battery and set of capacitors. The battery has...
The figure shows a circuit with an ideal battery and set of
capacitors. The battery has an emf
=12 V. The capacitors have capacitances C1 = C2 = C3 = C4 = 6
nF.
(a) What is the equivalent capacitance of the entire network of
capacitors?
(b) What is the electrical energy stored in the capacitor with
capacitance C2?
We were unable to transcribe this imageProblem 6 C. The figure shows a circuit with an ideal battery and set of...
1 of 1 PHYSICS 1404 Lab Homework - Capacitance her was a spordi det 20. Charles cakestatief how you did the capacitance 13 2. Bachof the capacitors in the previous problem is peace Rank chapter from west Showman (10 PHYSICS 1404 Lab Homework - Capacitance This homework will be due at 11:59 PM on Tuesday, June 30. 1. Consider the following capacitors: C has an area of 4.0 cm and a separation distance of 2.0 mm: C, has an area...
Problem 5 In the figure below C1 2.0 μF, G 10.0pE, C3 3,0 μF , C.-6.0 μF.G-4.0 μ. The applied potential difference between a and b is Vab 10V. a) [4 points] Calculate the equivalent capacitance of the network between points a and b. b) [8 pointsl Calculate the charge on each capacitor and the potential difference across each capacitor. c) Once all the capacitors are charged, using an insulating handle, disconnect Ci and now you have C alone. Assume...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 V 2.5 V 4.0 V 2.0 V 3.0 V
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C3? C4 C1 C2 C3 1.25 V 3.0 V 4.0 V 2.0 V 2.5 V
Problem 5 In the figure below C1 2.0 μF, G 10.0pE, C3 3,0 μF , C.-6.0 μF.G-4.0 μ. The applied potential difference between a and b is Vab 10V. a) [4 points] Calculate the equivalent capacitance of the network between points a and b. b) [8 pointsl Calculate the charge on each capacitor and the potential difference across each capacitor. c) Once all the capacitors are charged, using an insulating handle, disconnect Ci and now you have C alone. Assume...
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C1 C2 C3 VO 2.5 V 4.0 V 2.0 V 3.0 V O 1.25 V
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and
C3=C4=4 F. The battery voltage
V0=5 V. When the circuit is connected what will be
voltage across C3?
1.25 V
3.0 V
4.0 V
2.0 V
2.5 V
C4 C1 C2 C3 G V.
The circuit shown in the figure contains four capacitors whose
values are as follows: C1=6 F, C2=2 F, and
C3=C4=4 F. The battery voltage
V0=5 V. When the circuit is connected what will be
voltage across C4?
2.5 V
4.0 V
2.0 V
3.0 V
1.25 V
C4 C1 C₂ C3 V.
The circuit shown in the figure contains four capacitors whose values are as follows: C1=6 F, C2=2 F, and C3=C4=4 F. The battery voltage Vo=5 V. When the circuit is connected what will be voltage across C4? C4 C C2 C3 VO O 2.5 V 4.0 V 2.0 V O 3.0 V 01.25 V
The figure shows a circuit with an ideal battery and set of
capacitors. The battery has an emf
=12 V. The capacitors have capacitances C1 = C2 = C3 = C4 = 6
nF.
(a) What is the equivalent capacitance of the entire network of
capacitors?
(b) What is the electrical energy stored in the capacitor with
capacitance C2?
We were unable to transcribe this imageProblem 6 C. The figure shows a circuit with an ideal battery and set of...
