the intensity of the radiation from an object is found to be a maximum of 2000...

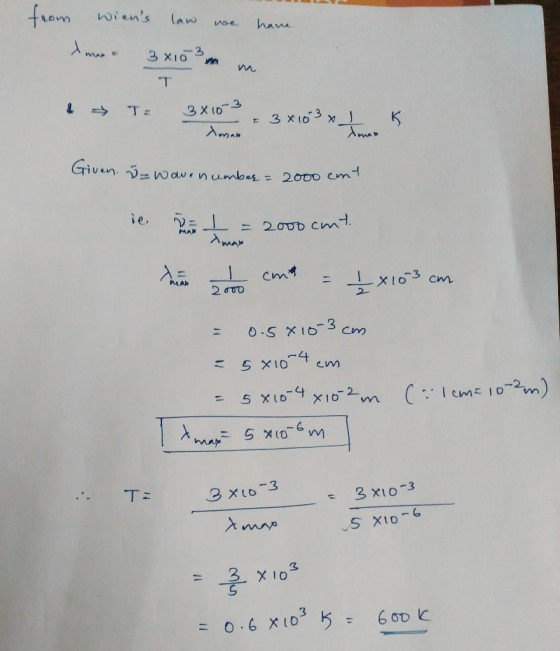

the intensity of the radiation from an object is found to be a maximum of 2000 cm-1. Assuming that the object is a black body, calculate its temperature
Homework Answers
thank
you vmuch.....Add Answer to:
the intensity of the radiation from an object is found to be a
maximum of 2000...
The intensity distribution of solar radiation peaks at a wavelength of approximately 500 nm. Assuming the...
The intensity distribution of solar radiation peaks at a wavelength of approximately 500 nm. Assuming the Sun radiates like a black body, calculate its surface temperature in K.
7. What is the relation between temperature and intensity of black body radiation? 8. What is...
7. What is the relation between temperature and intensity of black body radiation? 8. What is the relation between the temperature of a black body and the color of its radiation? 9. What is the closest thing to a black body in our everyday life? 10. What is the importance of Planck's radiation law for modern Physics?
The radiation intensity of an antenna is U=Um cos where Um is the maximum radiation intensity....
The radiation intensity of an antenna is U=Um cos where Um is the maximum radiation intensity. The radiation intensity U has a value only in upper hemisphere (0 ≤ ≤ /2 and 0 ≤ ≤ 2) and is zero in the lower hemisphere. 1. Express the radiation pattern in a polar plot 2. On the same diagram indicate the half power points 3. Calculate the half power beamwidth 4. Calculate the directivity in dBi.
8. Compute the ratio of the increase of intensity of black-body radiation at a wavelength of...
8. Compute the ratio of the increase of intensity of black-body radiation at a wavelength of 641 nm for an increase of temperature from 1200 to 1500 K
What is the intensity of radiation received at a distance of 2000 meters from the hot...
What is the intensity of radiation received at a distance of 2000 meters from the hot sphere?
2. The maximum wavelength of an ideal black body cavity radiation absorption is 6000 A. a....
2. The maximum wavelength of an ideal black body cavity radiation absorption is 6000 A. a. If the emission of thermal radiation from the cavity becomes 3 times, then what is the maximum wavelength and temperature? b. If the emission of thermal radiation from the cavity becomes times, then what is the maximum wavelength and temperature?
Demonstrate that the intensity of radiation from a black body in equilibrium with radiation is given by I = 1/4 cu. also show that the Stefan-Boltzmann constant is σ = 1/4 ca with a = 7.56 x10 ^ -16,...
Demonstrate that the intensity of radiation from a black body in equilibrium with radiation is given by I = 1/4 cu. also show that the Stefan-Boltzmann constant is σ = 1/4 ca with a = 7.56 x10 ^ -16, u is the density of the radiation energy
Which of the following statements concerning radiation heat transfer is false? The radiation emitted by a...
Which of the following statements concerning radiation heat transfer is false? The radiation emitted by a body is proportional to the fourth power of its absolute temperature. For a body of particular size and temperature, the maximum energy is emitted b a black body For an opaque body, the sum of absorptivity and reflectivity is always equal to unity. Radiation is always negligible at room temperature. None of these statements is false.
A python can detect thermal radiation from objects that differ in temperature from their environment as...
A python can detect thermal radiation from objects that differ in temperature from their environment as long as the received intensity of thermal radiation is greater than 0.60 W/m2. Your body emits a good deal of thermal radiation; a typical human body has a surface area of 1.8 m2, a surface temperature of 30∘C, and an emissivity e = 0.97 at infrared wavelengths. As we've seen, the intensity of a source of radiation decreases with the distance from the source.If...
At our distance from the Sun, the intensity of solar radiation is 1370 W/m2 . As...
At our distance from the Sun, the intensity of solar radiation is 1370 W/m2 . As discussed in class and in the textbook, the temperature of the Earth is affected by the greenhouse effect of the atmosphere. This phenomenon describes the effect of absorption of infrared radiation by the surface so as to make the surface temperature of the Earth higher than if it were airless. The average global surface temperature of the Earth is ~288 K. Calculate the surface...
7. What is the relation between temperature and intensity of black body radiation? 8. What is the relation between the temperature of a black body and the color of its radiation? 9. What is the closest thing to a black body in our everyday life? 10. What is the importance of Planck's radiation law for modern Physics?
8. Compute the ratio of the increase of intensity of black-body radiation at a wavelength of 641 nm for an increase of temperature from 1200 to 1500 K
2. The maximum wavelength of an ideal black body cavity radiation absorption is 6000 A. a. If the emission of thermal radiation from the cavity becomes 3 times, then what is the maximum wavelength and temperature? b. If the emission of thermal radiation from the cavity becomes times, then what is the maximum wavelength and temperature?
Which of the following statements concerning radiation heat transfer is false? The radiation emitted by a body is proportional to the fourth power of its absolute temperature. For a body of particular size and temperature, the maximum energy is emitted b a black body For an opaque body, the sum of absorptivity and reflectivity is always equal to unity. Radiation is always negligible at room temperature. None of these statements is false.
