A 6 pole D-C generator has an armature winding with 684 conductors connected in 12 parallel...

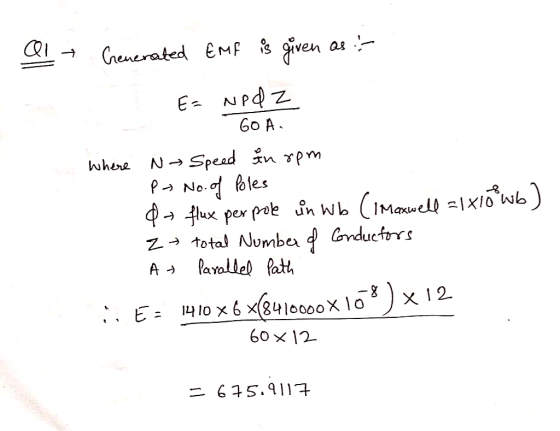

- A 6 pole D-C generator has an armature winding with 684 conductors connected in 12 parallel paths. Calculate the generated voltage in this machine if each pole produces 8410000 maxwells and the armature speed is 1410 rpm.
- 675.9117
- 677.9118
- 677.9117
- 675.9118

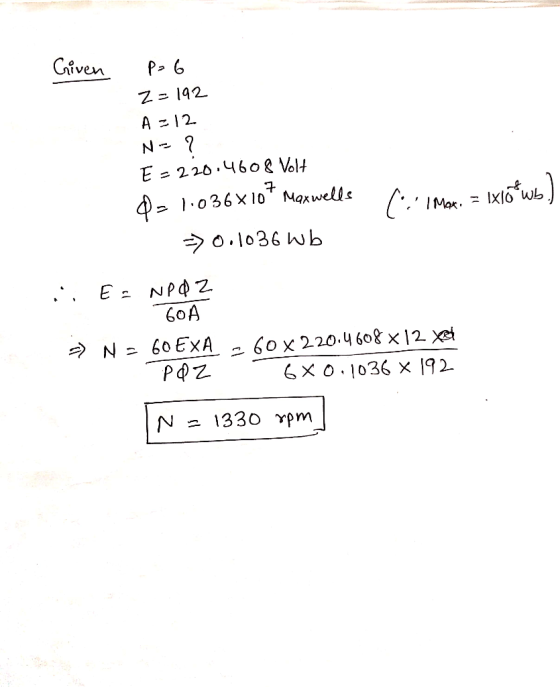

- The armature winding of a 6 pole D-C generator has 192 conductors connected in 12 parallel paths. At what speed should the machine be driven if it is to develop 220.4608 volts if each pole produces 1.036E+07 maxwells.
- 1335
- 1654
- 1652
- 1330

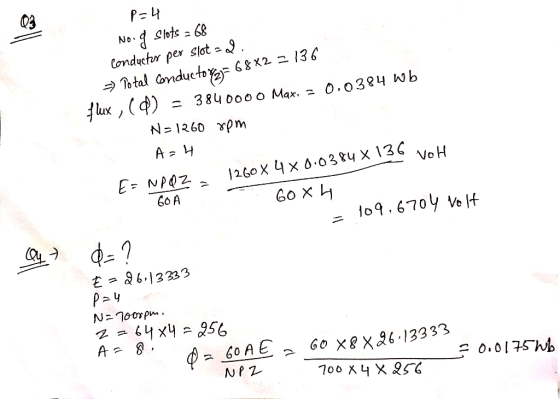

- Calculate the voltage generated by a 4 pole D-C machine given the following particulars: Number of slots in armature = 68; number of conductors per slot = 2 flux per pole = 3840000 Maxwell; speed = 1260 rpm. number of parallel paths in armature = 4
- 108.6705
- 109.6705
- 109.6704
- 108.6704
- To what value of flux per pole should the excitation be adjusted if the generated voltage of a 4 pole machine is 26.13333 volts when operated at 700 rpm? The number of armature slots is 64, and the armature winding has 8 parallel paths with 4 conductors in each slot.
- 1750000
- 1760000
- 1770000
