A machine of weight 1,000 kg. is mounted on a steel beam of negligible weight at...
A machine of weight 1,000 kg. is mounted on a steel
beam of negligible weight at centre. The rotor in the machine
generates a harmonic force of 3,000 kg. at a frequency 60 rad/sec.
Assume 10% damping, calculate amplitude of motion of machine, force
transmitted to supports and phase angle. Span of beam 3m ,E – 2 x
105 Mpa and I of beam 5000 cm4.
how much time it will take to count can anyone else also help?

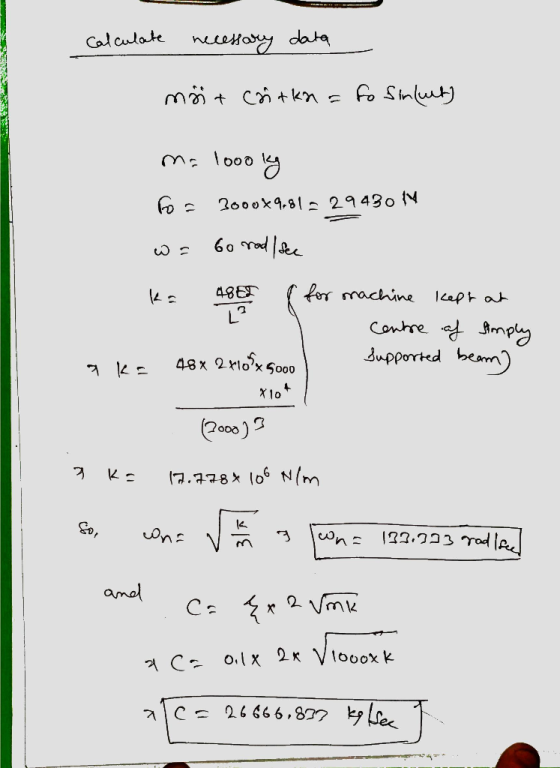

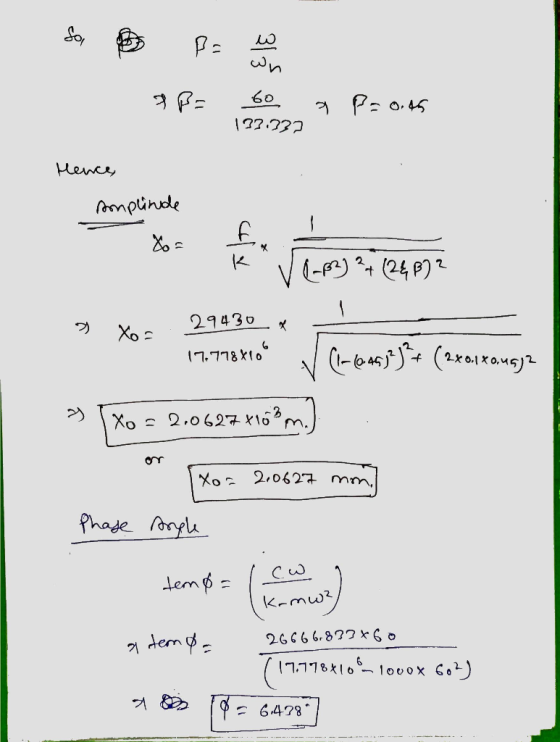

Homework Answers
Feel free to ask for further clarification.
Please up-vote if you liked this solution as it will encourage me to solve more and more questions and help students.
Thank you,
Happy HomeworkLibing
