A 3.0 kg wood block is launched up a wooden ramp that is inclinced at a...

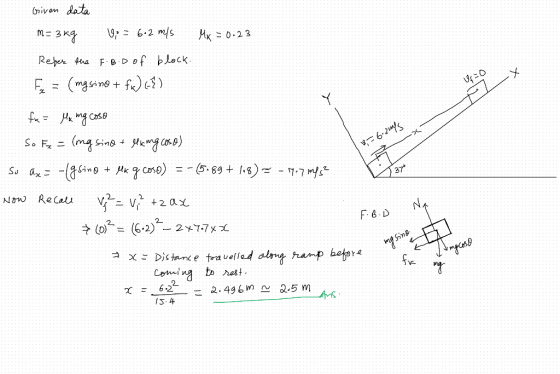

A 3.0 kg wood block is launched up a wooden ramp that is inclinced at a 37° angle above horizontal. The block's initial speed is 6.2 m/s. The corfficient of kinetic friction of wood on wood is μk=0.23. How far along the ramp does the block slide before stopping?

I am a beginner at physics so the most detailed answer would be super helpful with a free body diagram. Thank you.
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 3.0 kg wood block is launched up a wooden ramp that is inclinced at a...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 2.0 kg wood block is launched up a wooden ramp that is inclined at a...

    A 2.0 kg wood block is launched up a wooden ramp that is inclined at a 33 ∘ angle. The block's initial speed is 11 m/s . The coefficient of kinetic friction of wood on wood is μk=0.200. What vertical height does the block reach above its starting point? What speed does it have when it slides back down to its starting point?

  • A 2.0 kg wood block is launched up a wooden ramp that is inclined at a...

    A 2.0 kg wood block is launched up a wooden ramp that is inclined at a 35 ∘ angle. The block's initial speed is 7.0 m/s . The coefficient of kinetic friction of wood on wood is μk=0.200. What vertical height does the block reach above its starting point? What speed does it have when it slides back down to its starting point?

  • A 7.75 kg block is sent up a ramp inclined at an angle θ=36.5° from the...

    A 7.75 kg block is sent up a ramp inclined at an angle θ=36.5° from the horizontal. It is given an initial velocity of v0=15.0 m/s up the ramp. Between the block and the ramp, the coefficient of kinetic friction is μk=0.444 and the coefficient of static friction is μs=0.790. How far up the ramp in the direction along the ramp does the block go before it comes to a stop?

  • Steven carefully places a m 1.95 kg wooden block on a frictionless ramp so that the...

    Steven carefully places a m 1.95 kg wooden block on a frictionless ramp so that the block begins to slide dawn the ramp from rest. The ramp makes an angle of 55.3° up from the horizontal. Which forces do nonzero work on the block as it slides down the ramp? Прагпн! friction gravity spring How much total work has been done on the block after it slides down along the ramp a distance of 1.93 m? total work done on...

  • A block of wood of mass m = 1kg is pushed with an initial velocity of...

    A block of wood of mass m = 1kg is pushed with an initial velocity of 1m/s down a ramp that makes an angle of 30 degrees with the horizontal. The coefficient of kinetic friction is 0.6. How far along the ramp does it slide before coming to rest?

  • As shown in the figure below, a 2.25-kg block is released from rest on a ramp of height h.

    As shown in the figure below, a 2.25-kg block is released from rest on a ramp of height h. When the block is released, it slides without friction to the bottom of the ramp, and then continues across a surface that is frictionless except for a rough patch of width 15.0 cm that has a coefficient of kinetic friction μk = 0.520. Find h such that the block's speed after crossing the rough patch is 4.20 m/s. An object with a...

  • A 6.75 kg block is sent up a ramp inclined at an angle ?=31.5° from the...

    A 6.75 kg block is sent up a ramp inclined at an angle ?=31.5° from the horizontal. It is given an initial velocity ?0=15.0 m/s up the ramp. Between the block and the ramp, the coefficient of kinetic friction is ?k=0.368 and the coefficient of static friction is ?s=0.663. How far up the ramp in the direction along the ramp does the block go before it comes to a stop?

  • A 2.75 kg block is sent up a ramp inclined at an angle ?=31.5° from the...

    A 2.75 kg block is sent up a ramp inclined at an angle ?=31.5° from the horizontal. It is given an initial velocity ?0=15.0 m/s up the ramp. Between the block and the ramp, the coefficient of kinetic friction is ?k=0.368 and the coefficient of static friction is ?s=0.663 How far up the ramp in the direction along the ramp does the block go before it comes to a stop?

  • A 6.75 kg block is sent up a ramp inclined at an angle 0 = 33.5°...

    A 6.75 kg block is sent up a ramp inclined at an angle 0 = 33.5° from the horizontal. It is given an initial velocity Vo = 15.0 m/s up the ramp. Between the block and the ramp, the coefficient of kinetic friction is uk = 0.397 and the coefficient of static friction is us = 0.712. How far up the ramp in the direction along the ramp does the block go before it comes to a stop? - -...

  • 3.0 kg block slides down a frictionless ramp of height 3.0 meters starting from rest. it then tra...

    3.0 kg block slides down a frictionless ramp of height 3.0 meters starting from rest. it then traverses a 2.0 metter rough patch with a coefficient of kinetic friction 0.35 It then gets to a smooth area where it compresses a horizontal spring of spring constant 50 n/m. Please help me Solve the rest of the physics problem The answers to part A is x= 1.64 meters and part b is 1.58 meters Problem 1 A 3.0 kg block slides...
