Two 1.8-g spheres are suspended by 21.0-cm-long light strings (see the figure). A uniform electric field...

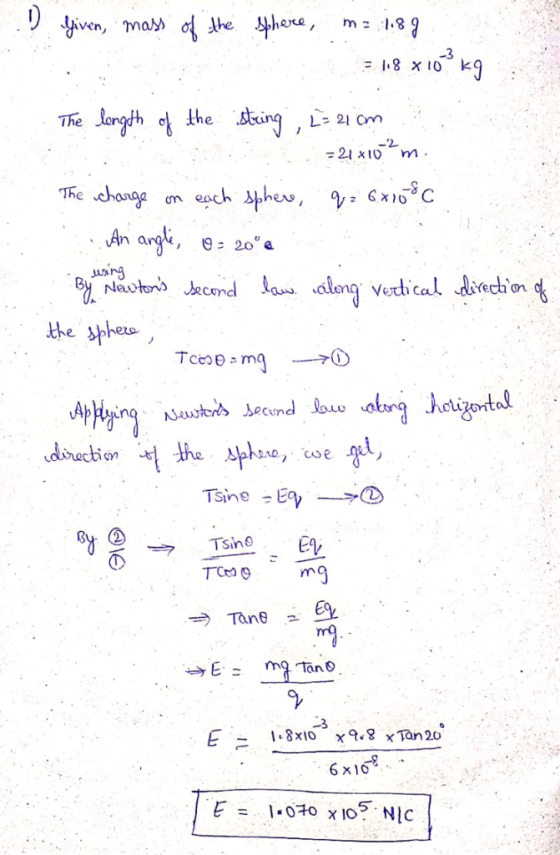

Two 1.8-g spheres are suspended by 21.0-cm-long light strings (see the figure). A uniform electric field is applied in the x-direction. If the spheres have charges of −6.0 ✕ 10−8 C and +6.0 ✕ 10−8 C, determine the electric field intensity that enables the spheres to be in equilibrium at θ = 20°. Charged spheres hang from the ends of each of two strings of identical length. The tops of each string are connected to a single attachment point on the ceiling. The sphere on the left has a negative charge and is displaced to the left of the vertical by an acute angle θ. The sphere on the right has a positive charge and is displaced to the right of the vertical by the same acute angle θ. Electric field vector E points to the right in the region of the spheres and strings.
