Consider an air-filled rectangular cavity with the side lengths measuring 3 cm, 4 cm, and 6...

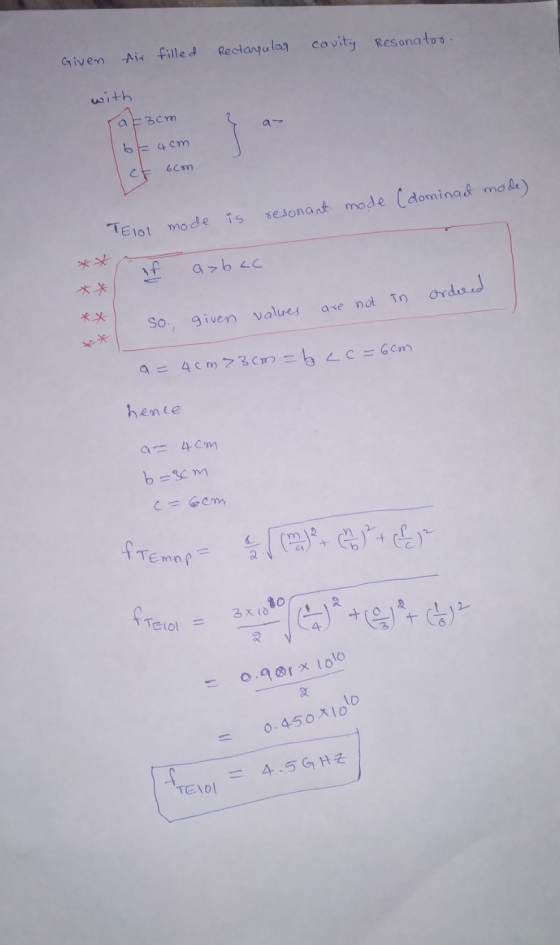

Consider an air-filled rectangular cavity with the side lengths measuring 3 cm, 4 cm, and 6 cm . Note that there are different choices for designating the z-axis and that these result in different resonant TE101 modes. Find the lowest resonant frequency of the TE101 mode.
Homework Answers
Add Answer to:
Consider an air-filled rectangular cavity with the side lengths
measuring 3 cm, 4 cm, and 6...
4-23. A rectangular-cavity resonator has dimensions of a -5 cm, b 2 cm, and d - 15 cm. Compute: a. The resonant frequen...
4-23. A rectangular-cavity resonator has dimensions of a -5 cm, b 2 cm, and d - 15 cm. Compute: a. The resonant frequency of the dominant mode for an air-filled cavity b. The resonant frequency of the dominant mode for a dielectric-filled cavity of , 2.56 l wish to help me in solving this question this the reference book is Microwave Devices and Circuits Third Edition SAMUEL Y. LIAO Professor of Electrical Engineering California State n University, Fresno sec 4...
Consider a cavity resonator of dimensions 25 cm × 25 cm × 22 cm. (a) Calculate...
Consider a cavity resonator of dimensions 25 cm × 25 cm × 22 cm. (a) Calculate resonant frequencies for the modes with the four lowest frequencies. (b) Describe how the lowest frequency mode satisfies the electric field boundary conditions at the walls of the cavity. c) Where in the cavity does this mode have its highest intensity? Explain your reasoning.
Consider a cavity resonator of dimensions 25 cm × 25 cm × 22 cm. (a) Calculate resonant frequencies for the modes with the four lowest frequencies. (b) Describe how the lowest frequency mode satisfie...
Consider a cavity resonator of dimensions 25 cm × 25 cm × 22 cm. (a) Calculate resonant frequencies for the modes with the four lowest frequencies. (b) Describe how the lowest frequency mode satisfies the electric field boundary conditions at the walls of the cavity. c) Where in the cavity does this mode have its highest intensity? Explain your reasoning.
Consider a cavity resonator of dimensions 25 cm × 25 cm × 22 cm. (a) Calculate resonant frequencies for the...
A 10 cm long rectangular waveguide is designed with side lengths of 3 mm and 4mm....
A 10 cm long rectangular waveguide is designed with side lengths of 3 mm and 4mm. The waveguide is filled with a dielectric that has a refractive index n=1.3. a) Over what frequency range is this waveguide single mode? A 50 GHz signal is modulated into one short pulse, then sent into the waveguide. b) How many modes are supported by the waveguide? Also identify them by their name (for example TE32). c) Resulting from one pulse sent at the...
3) As in Figure 2, the rectangular waveguide with air filled (? = ?0, ? =...
3) As in Figure 2, the rectangular waveguide with air filled (?
= ?0, ? = ?0) and dimensions a = (2.75 + d) cm and b = (1.5 + h) cm
operates under the operating frequency of 7.580 GHz.
d = 8/10 h = 6/10
According to this,
a) Which wave mode is the dominant mode (dominant mode)? Why?
Figure 2- Rectangular Wave Guide
b) Calculate the Z, β, up and λg values for the dominant wave
mode.
b
(a) Consider a rectangular drum lid with side lengths 4 and 5. If the natural frequencies...
(a) Consider a rectangular drum lid with side lengths 4 and 5. If the natural frequencies lm,n are ordered from smallest to largest, write down the first three natural frequencies for wave speed c=1/T. Smallest Am,n Second smallest Am,n 13 Third smallest Im,ne (b) Degenerate modes are normal modes um,n and up, with identical natural frequencies, for which (m, n) + (8,9). For example, in the 2 x 1 rectangle, modes 04,1 and 42,2 are degenerate as they both have...
2. A hollow pipe of length L and square cross-section of side a is ter- minated...
2. A hollow pipe of length L and square cross-section of side a is ter- minated by square faces of side a that are orthogonal to its length dimension which is along the z axis. The walls of the so-formed cavity are perfectly conducting, and the medium filling the cavity is lossless and with a real dielectric permittivity, e'. (a) Calculate the spatial distribution of the longitudinal component of the electric field for the various TM modes of the cavity....

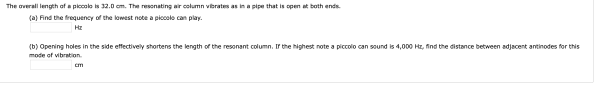

The overall length of a piccolo is 32.0 cm. The resonating air column vibrates as in...
The overall length of a piccolo is 32.0 cm. The resonating air column vibrates as in a pipe that is open at both ends. (a) Find the frequency of the lowest note a piccolo can play. Hz ning holes in the side effectively shortens the length of the resonant column. If the highest note a piccolo can sound is 4,000 Hz, find the distance between adjacent antinodes for this mode of vibration. cm
The overall length of a piccolo is 32.0 cm. The resonating air column vibrates as in...
The overall length of a piccolo is 32.0 cm. The resonating air column vibrates as in a pipe that is open at both ends. (a) Find the frequency of the lowest note a piccolo can play. Hz (b) Opening holes in the side effectively shortens the length of the resonant column. If the highest note a piccolo can sound is 4,000 Hz, find the distance between adjacent antinodes for this mode of vibration. cm
3. (15 points) A light ray is traveling horizontally through air and hits the rectangular glass block shown to the right. The block has a triangular, air-filled cavity within it. You may take the...
3. (15 points) A light ray is traveling horizontally through air and hits the rectangular glass block shown to the right. The block has a triangular, air-filled cavity within it. You may take the index of refraction of air to be mair 1 and the index of refraction of glass to be nglass 1.5 40° く enters the glass block. Sketch this refracted ray on the diagram to the right. a. Calculate the angle of traction when the light ray...
4-23. A rectangular-cavity resonator has dimensions of a -5 cm, b 2 cm, and d - 15 cm. Compute: a. The resonant frequency of the dominant mode for an air-filled cavity b. The resonant frequency of the dominant mode for a dielectric-filled cavity of , 2.56 l wish to help me in solving this question this the reference book is Microwave Devices and Circuits Third Edition SAMUEL Y. LIAO Professor of Electrical Engineering California State n University, Fresno sec 4...
Consider a cavity resonator of dimensions 25 cm × 25 cm × 22 cm. (a) Calculate resonant frequencies for the modes with the four lowest frequencies. (b) Describe how the lowest frequency mode satisfies the electric field boundary conditions at the walls of the cavity. c) Where in the cavity does this mode have its highest intensity? Explain your reasoning.
Consider a cavity resonator of dimensions 25 cm × 25 cm × 22 cm. (a) Calculate resonant frequencies for the modes with the four lowest frequencies. (b) Describe how the lowest frequency mode satisfies the electric field boundary conditions at the walls of the cavity. c) Where in the cavity does this mode have its highest intensity? Explain your reasoning.
Consider a cavity resonator of dimensions 25 cm × 25 cm × 22 cm. (a) Calculate resonant frequencies for the...
3) As in Figure 2, the rectangular waveguide with air filled (?
= ?0, ? = ?0) and dimensions a = (2.75 + d) cm and b = (1.5 + h) cm
operates under the operating frequency of 7.580 GHz.
d = 8/10 h = 6/10
According to this,
a) Which wave mode is the dominant mode (dominant mode)? Why?
Figure 2- Rectangular Wave Guide
b) Calculate the Z, β, up and λg values for the dominant wave
mode.
b
(a) Consider a rectangular drum lid with side lengths 4 and 5. If the natural frequencies lm,n are ordered from smallest to largest, write down the first three natural frequencies for wave speed c=1/T. Smallest Am,n Second smallest Am,n 13 Third smallest Im,ne (b) Degenerate modes are normal modes um,n and up, with identical natural frequencies, for which (m, n) + (8,9). For example, in the 2 x 1 rectangle, modes 04,1 and 42,2 are degenerate as they both have...
2. A hollow pipe of length L and square cross-section of side a is ter- minated by square faces of side a that are orthogonal to its length dimension which is along the z axis. The walls of the so-formed cavity are perfectly conducting, and the medium filling the cavity is lossless and with a real dielectric permittivity, e'. (a) Calculate the spatial distribution of the longitudinal component of the electric field for the various TM modes of the cavity....
The overall length of a piccolo is 32.0 cm. The resonating air column vibrates as in a pipe that is open at both ends. (a) Find the frequency of the lowest note a piccolo can play. Hz ning holes in the side effectively shortens the length of the resonant column. If the highest note a piccolo can sound is 4,000 Hz, find the distance between adjacent antinodes for this mode of vibration. cm
The overall length of a piccolo is 32.0 cm. The resonating air column vibrates as in a pipe that is open at both ends. (a) Find the frequency of the lowest note a piccolo can play. Hz (b) Opening holes in the side effectively shortens the length of the resonant column. If the highest note a piccolo can sound is 4,000 Hz, find the distance between adjacent antinodes for this mode of vibration. cm
3. (15 points) A light ray is traveling horizontally through air and hits the rectangular glass block shown to the right. The block has a triangular, air-filled cavity within it. You may take the index of refraction of air to be mair 1 and the index of refraction of glass to be nglass 1.5 40° く enters the glass block. Sketch this refracted ray on the diagram to the right. a. Calculate the angle of traction when the light ray...
