Consider an equilateral triangle with sides measuring 1.0 m in length. at each point of the...

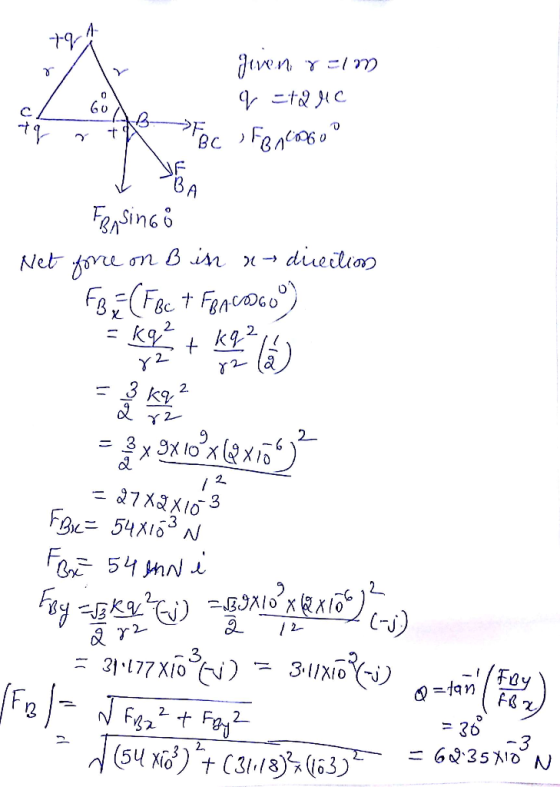

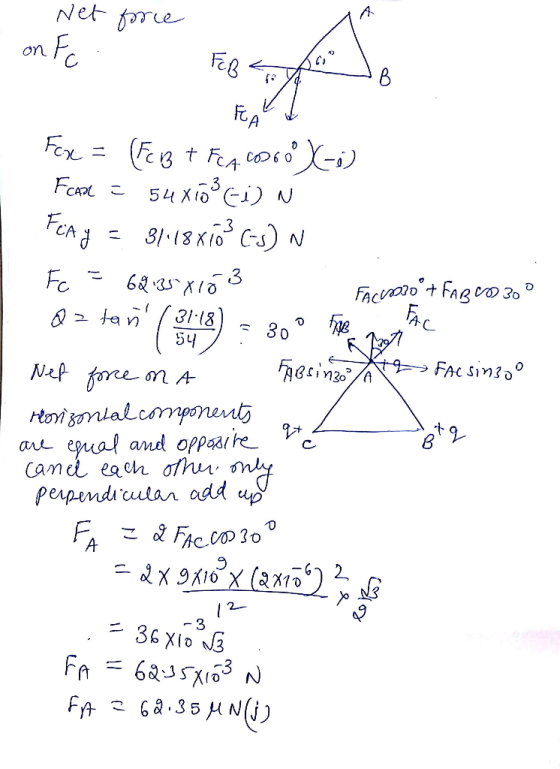

Consider an equilateral triangle with sides measuring 1.0 m in length. at each point of the triangle is a +2.0 μc charge. Calculate the Coulomb force on each charge. Recall that forces are vectors and thus your answer will require a magnitude and direction for each of the three forces.
There are two examples I can find on this site, but neither of them are giving me what I need. Please review, solve, and describe your steps. Identify which formulas are being used.
Thank you.
Homework Answers
Add Answer to:
Consider an equilateral triangle with sides measuring 1.0 m in
length. at each point of the...
Consider an equilateral triangle with sides of length 5cm where each of the three vertices carry...
Consider an equilateral triangle with sides of length 5cm where each of the three vertices carry a charge. The top vertex carries a charge of +9.0µC, while the bottom vertices each carry a charge of?5.0µC. (a) (7 points) What is the magnitude and direction of the electric field at the center of the triangle? (b) (3 points) If the center of the triangle contained a proton, what would the force be of the charged vertices on the proton?
Three charged particles are at the corners of an equilateral triangle as shown in the figure...
Three charged particles are at the corners of an equilateral triangle as shown in the figure below. (Let q-2.0 С, and L-0350 m.) , 7.00 μC 60.0° 9 (a) Calculate the electric field at the position of charge q due to the 7.00-pC and-4.00-μC charges. 25.7x Once you calculate the magnitude of the field contribution from each charge you need to add these as vectors. kN/Ci312 Does the-4.00-JC charge contribute to the y component of the field at the origin?...
A triangle with equal sides of length 1.0 ×10^3 m has -2.0-C charged objects at each...
A triangle with equal sides of length 1.0 ×10^3 m has -2.0-C charged objects at each corner. a) Determine the magnitude of the electrical force exerted on the object at the top corner due to the two objects at the base of the triangle.
Three charged particles are at the corners of an equilateral triangle as shown in the figure...
Three charged particles are at the corners of an equilateral triangle as shown in the figure below. (Let q = 4.00 μC, and L = 0.350 m.) 7.00 C 60.0 -4.00 pC (a) Calculate the electric field at the position of charge q due to the 7.00-HC and -4.00-HC charges. Once you calculate the magnitude of the field contribution from each charge you need to add these as vectors. kN/C i + -445.37 (b) Use your answer to part (a)...
