A circular turntable is oriented parallel to the ground, ie., its axis of rotation is perpendicular...

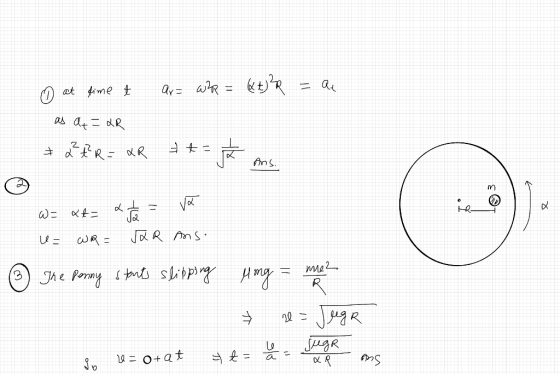

A circular turntable is oriented parallel to the ground, ie., its axis of rotation is perpendicular to the ground. A penny of mass m is placed at a distance R from the axis of rotation and starting from rest the turntable accelerates with a constant angular acceleration a. Assuming the penny doesn't slip,
1) At what time is the tangential acceleration equal to the radial acceleration?
2) What is the linear speed of the penny at this time?
3) the coefficient of static friction between the penny and the turntable is µ. At what time does the penny start to slip?
Homework Answers
Add Answer to:
A circular turntable is oriented parallel to the ground, ie.,
its axis of rotation is perpendicular...
A record turntable is rotating at 33 1/2 rev/min. A watermelon seed is on the turntable...
A record turntable is rotating at 33 1/2 rev/min. A watermelon seed is on the turntable 9.4 cm from the axis of rotation. (a) Calculate the acceleration of the seed, assuming that it does not slip. (b) What is the minimum value of the coefficient of static friction between the seed and the turntable if the seed is not to slip? (c) Suppose that the turntable achieves its angular speed by starting from rest and undergoing a constant angular acceleration...
Question 1 A record turntable is rotating at 33 rev/min. A watermelon seed is on the...
Question 1 A record turntable is rotating at 33 rev/min. A watermelon seed is on the turntable 4.1 cm from the axis of rotation. (a) Calculate the acceleration of the seed, assuming that it does not slip. (b) What is the minimum value of the coefficient of static friction between the seed and the turntable if the seed is not to slip? (c) Suppose that the turntable achieves its angular speed by starting from rest and undergoing a constant angular...
A solid cylinder is mounted above the ground with its axis of rotation oriented horizontally. A...
A solid cylinder is mounted above the ground with its axis of rotation oriented horizontally. A rope is wound around the cylinder and its free end is attached to a block of mass 76.0 kg that rests on a platform. The cylinder has a mass of 275 kg and a radius of 0.480 m. Assume that the cylinder can rotate about its axis without any friction and the rope is of negligible mass. The platform is suddenly removed from under...
A bug stands on a horizontal turntable at distance r from the center. The coefficient of...
A bug stands on a horizontal turntable at distance r from the center. The coefficient of static friction between the bug and the turntable is Ms. The turntable spins at constant angular frequency w. (a) Is the bug more likely to slip at small values of r, or large values? (b) If the bug walks along a radius, what is the value of r at which it looses its footing? A bug stands on a horizontal turntable at distance r...
Consider a turntable to be a circular disk of moment of inertia 0.142 kg⋅m2 rotating at...
Consider a turntable to be a circular disk of moment of inertia 0.142 kg⋅m2 rotating at a constant angular velocity 4.80 rad/s2 around an axis through the center and perpendicular to the plane of the disk (the disk's "primary axis of symmetry"). The axis of the disk is vertical and the disk is supported by frictionless bearings. The motor of the turntable is off, so there is no external torque being applied to the axis. Another disk (a record) is...
Consider a bug which is crawling on the surface of a turntable rotating with constant angular...
Consider a bug which is crawling on the surface of a turntable rotating with constant angular velocity wo. List all the forces acting on it in a system of coordinates painted on the turntable (z is perpendicular to the turntable and the rotation is around the z-axis) and the direction of each of those forces, in each of the following cases: a) when the bug is moving out from the center of the turntable along a radius at constant speed...
Chapter 3, Practice Problem 3/115 The quarter-circular hollow tube of circular cross section starts from rest...
Chapter 3, Practice Problem 3/115 The quarter-circular hollow tube of circular cross section starts from rest at time t = 0 and rotates about point o in a horizontal plane with a constant counterclockwise angular acceleration 7 = 2.9 rad/s2. At what time t will the 0.30-kg particle P slip relative to the tube? The coefficient of static friction between the particle and the tube is us = 0.53. 0.58 m 51 Answer: t = the tolerance is +/-2%
Chapter 3, Practice Problem 3/115 The quarter-circular hollow tube of circular cross section starts from rest...
Chapter 3, Practice Problem 3/115 The quarter-circular hollow tube of circular cross section starts from rest at time t = 0 and rotates about point o in a horizontal plane with a constant counterclockwise angular acceleration 7 = 2.9 rad/s. At what time t will the 0.57-kg particle P slip relative to the tube? The coefficient of static friction between the particle and the tube is us = 0.89. tes 58 0.79 m Answer: t = the tolerance is +/-2%
please help A uniform disk of radius 0.65 m rotates clockwise about its central axis and...
please help
A uniform disk of radius 0.65 m rotates clockwise about its central axis and accelerates with constant angular acceleration. At time 1-0 it is rotating at 34 rad/s, at timeに15 s later, its angular speed is 13 rad/s. (Recall 2π rad-1 rev). a. What is the direction of the angular velocity? b. What is the direction of the angular acceleration? c. Calculate the magnitude of the angular acceleration d. Through how many radians has the disk turned in...
A circular annulus, of mass M, inside radius a and outside radius 2a, is given an angular speed w about an axis, through its center perpendicular to its plane, which is horizontal. It is then gently p...
A circular annulus, of mass M, inside radius a and outside radius 2a, is given an angular speed w about an axis, through its center perpendicular to its plane, which is horizontal. It is then gently placed on a rough horizontal plane, the coefficient of friction being u. Show that the annulus will start rolling without slipping after a time (10aw/13ug). The experiment is repeated in a space craft on a circular orbit around the earth. State giving reasons, whether...
A bug stands on a horizontal turntable at distance r from the center. The coefficient of static friction between the bug and the turntable is Ms. The turntable spins at constant angular frequency w. (a) Is the bug more likely to slip at small values of r, or large values? (b) If the bug walks along a radius, what is the value of r at which it looses its footing? A bug stands on a horizontal turntable at distance r...
Consider a bug which is crawling on the surface of a turntable rotating with constant angular velocity wo. List all the forces acting on it in a system of coordinates painted on the turntable (z is perpendicular to the turntable and the rotation is around the z-axis) and the direction of each of those forces, in each of the following cases: a) when the bug is moving out from the center of the turntable along a radius at constant speed...
Chapter 3, Practice Problem 3/115 The quarter-circular hollow tube of circular cross section starts from rest at time t = 0 and rotates about point o in a horizontal plane with a constant counterclockwise angular acceleration 7 = 2.9 rad/s2. At what time t will the 0.30-kg particle P slip relative to the tube? The coefficient of static friction between the particle and the tube is us = 0.53. 0.58 m 51 Answer: t = the tolerance is +/-2%
Chapter 3, Practice Problem 3/115 The quarter-circular hollow tube of circular cross section starts from rest at time t = 0 and rotates about point o in a horizontal plane with a constant counterclockwise angular acceleration 7 = 2.9 rad/s. At what time t will the 0.57-kg particle P slip relative to the tube? The coefficient of static friction between the particle and the tube is us = 0.89. tes 58 0.79 m Answer: t = the tolerance is +/-2%
please help
A uniform disk of radius 0.65 m rotates clockwise about its central axis and accelerates with constant angular acceleration. At time 1-0 it is rotating at 34 rad/s, at timeに15 s later, its angular speed is 13 rad/s. (Recall 2π rad-1 rev). a. What is the direction of the angular velocity? b. What is the direction of the angular acceleration? c. Calculate the magnitude of the angular acceleration d. Through how many radians has the disk turned in...
