Given grammar: <program> --> <stmts> <stmts> --> <stmt> | <stmt> ; <stmts> <stmt> --> <var> =...

Question

Question

Given grammar:

<var> --> a | b | c | d

<term> --> <var> | const

Write down the parse tree and left most derivation of:

c = a + c

engineering Computer-Science

Answer 1

Answer #1

Solution:

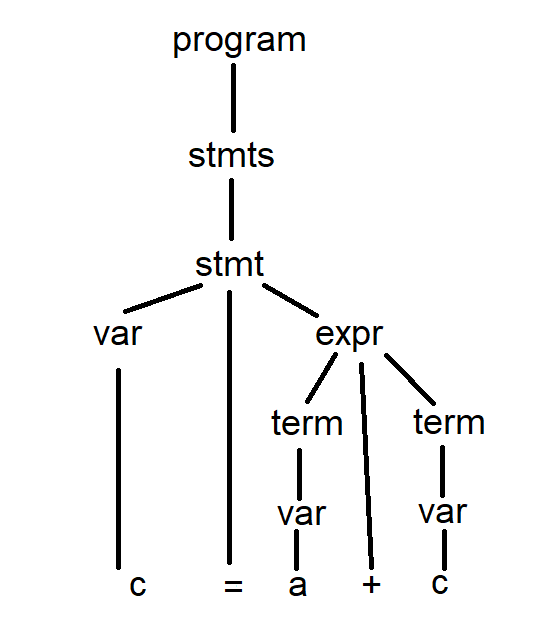

The Parse tree would be as follows:

The Left most derivation can be written as:

<program> ==> <stmts>

==> <stmt>

==> <var> = <expr>

==> c = <expr>

==> c = <term> + <term>

==> c = <var> + <var>

==> c = a + <var>

==> c = a + c

Answer 2
