Why would a DFT (Discrete Fourier Transform) indicate that a 1Hz square wave has additional higher...
-

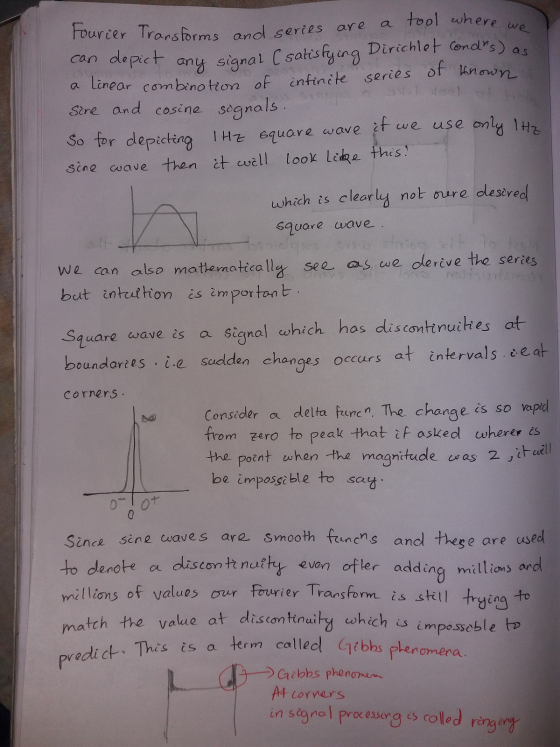

Why would a DFT (Discrete Fourier Transform) indicate that a 1Hz square wave has additional higher frequency signals? Hint: DFTs decompose signals into what? The rapid changes at a square wave’s corners relate to frequency how?
-

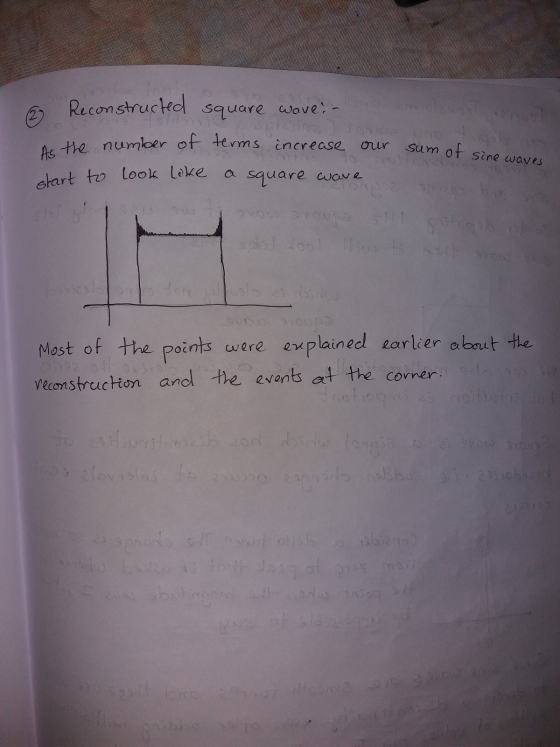

How does a reconstructed square wave differ from the original? Why does it look like that?
Homework Answers

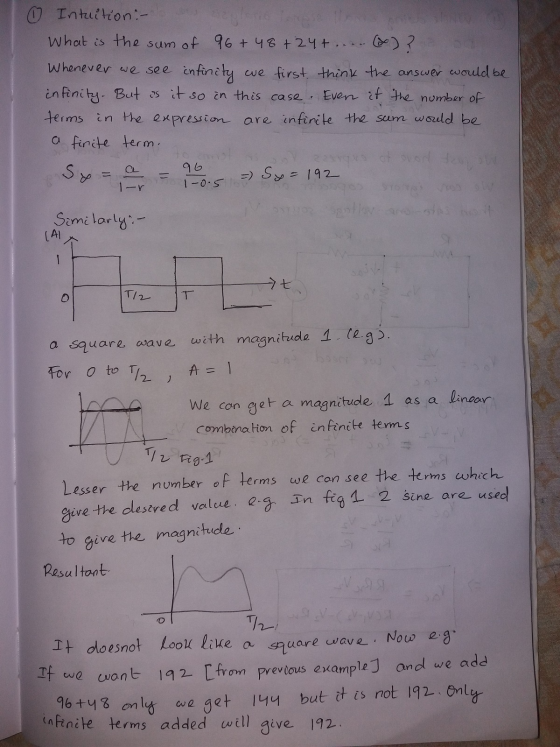

Though signal system can be understood by crude mathematics and fourier series it is very important to first understand the question intuitively.
