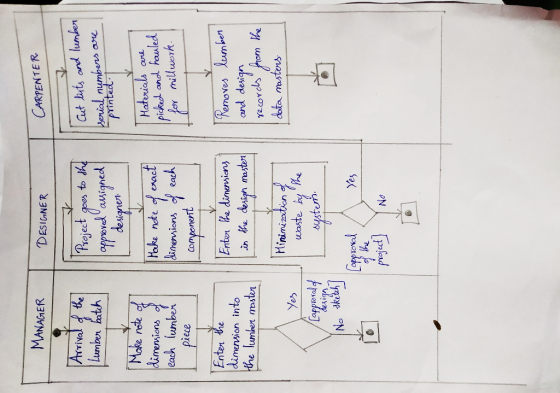

Create an activity diagram with swimlane for the following scenario.
Vernon Hills, Inc. specializes in high-end corporate furniture. Below is their process of generating material cut list:
Upon the arrival of a lumber batch, the inventory manager enters the dimensions of each lumber piece to the lumber master.
Each time a design sketch gets approved, the designer commissioned to the project would enter the exact dimensions of each component into the design master.
The dimensions of each component are then best matched with those of lumber pieces in the inventory to minimize waste by the system. Cut lists and lumber serial numbers for the approved project are then printed for the carpenter.
Once materials are picked and hauled away for millwork, the carpenter removes the lumber and design records from the data masters.
