a steel beam 5.0 m long with a mass of 80 kg is hinged at its...

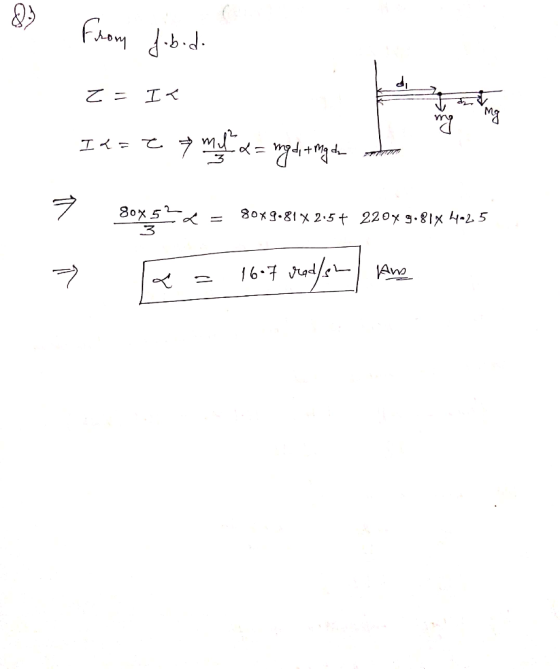

a steel beam 5.0 m long with a mass of 80 kg is hinged at its left end to the wall. a heavy sign with a mass of 220 kg hangs from the beam 4.25m from the wall. the cable supporting the beam snaps, and the beam begins to fall. what is the initial angular acceleration of the beam?
Homework Answers
