A distillation column with 100 kmol/h feed of 60% A and 40% B produces a distillate...

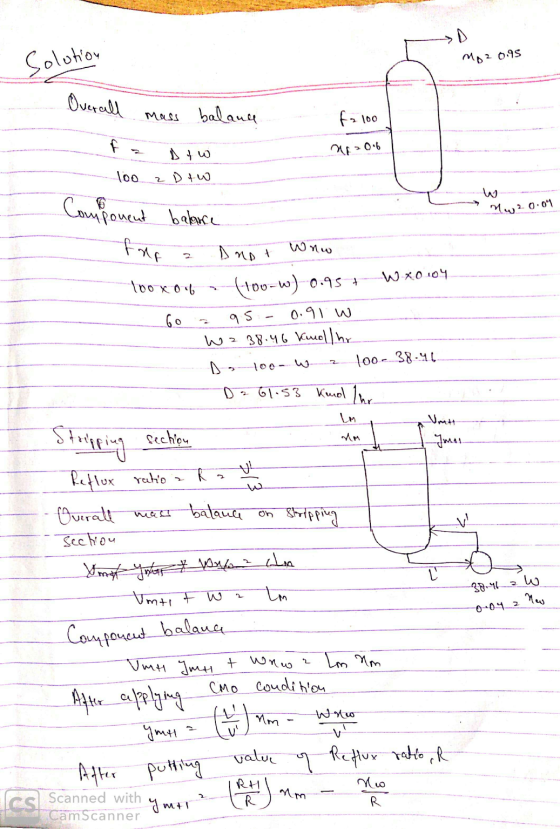

A distillation column with 100 kmol/h feed of 60% A
and 40% B produces a distillate product with xD = 0.95 and a bottom
stream with xbot = 0.04 of the more volatile species A. CMO is
valid and the equilibrium data is given by y = 2x/(1+x)

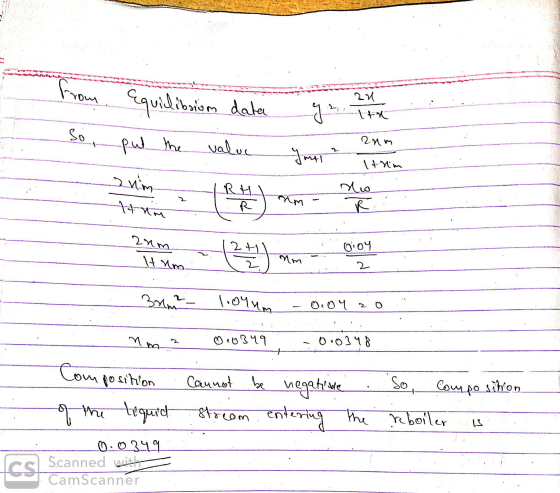

If R = 2 and q = 0.8, determine (numerically) the
composition (x) of the liquid stream entering the
reboiler).
Homework Answers
