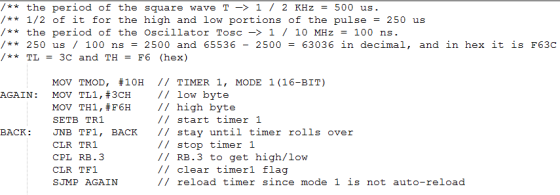

Write an assembly program using PIC18F4580 to generate a square wave of 2 kHz on pin RB.3, where XTAL=10 MHz
Write an assembly program using PIC18F4580 to generate a square wave of 2 kHz on pin...
8. Program Timer O in C to generate a square wave of 0.5 KHz. Assume that XTAL 11.0592 MHz #include sbit mybit P1A5; void delay (void); void main (void) while (1) ( mybit - delay(0): void delay (void) TMOD TLO = THO TRO = 1; while (ITFO); TFO = 0;
Assuming that XTAL = 8 MHz, and we are generating a square wave on pin PB7, find the lowest square wave frequency that we can generate using Timer1 in Normal mode. I have seen the solution where: f = 65536x(12/XTAL)x2 But i have no idea where the '12' and the 'x2' comes from. Please help Also, there was another problem similiar to the top but instead stated 'Highest square wave frequency' but the solution did not have the X2
Write an AVR assembly code that generates a periodic square wave with 4 kHz frequency with 50% duty cycle on the OC0 pin using the Timer/Counter0 CTC mode. Assume a system clock frequency of 16 MHz. Use the follow skeleton code: ; AVR Assembly code - CTC mode with 4 kHz and 50% duty cycle .INCLUDE "m128def.inc" .DEF mpr = R16 ; General purpose register .ORG $0000 ; Reset and Power On interrupt RJMP INITIALIZE ; Jump to initialization .ORG...
In 8051 microcontroller to program it using Assembly. Write an assembly program to generate one pulse with high duration of 5 ms and low duration of 2.5 ms using timer 0 with XTAL = 11.0592MHz.
Using uVison: Write a C program that generates a 1 second square wave on Pin 2 Port B. Using generated signal from that Pin 2, as an input to Pin 3 Port B drive the red LED at the same rate and the Blue LED at half the rate of the Red LED.
Using uVison: Write a C program that generates a 1 second square wave on Pin 2 Port B. Using generated signal from that Pin 2, as an input to Pin 3 Port B drive the red LED at the same rate and the Blue LED at half the rate of the Red LED.
write down the pseudocode to generate a 200μs period square wave with a 25% duty cycle. You do not need to write any Assembly, just explain the method you would use to generate this type of square wave. 3,
In this section, you write an assembly program to generate a pulse signal. In PIC18 explorer board, timerl is connected to a 32-kHz crystal. Configure timer 1 to generate a 1-kHz pulse signal on RE3. Here is the pseudocode of the program: 1) Configure PORTE.3 as output 2) Write into T1CON Hint: T1SYNC bit should be set to 1 3) Clear TMR1IF 4) Write into TMR1H first and then TMR1L 5) Turn on timer1 6) Wait until TMR1IF is set...
program Timer2 in C to toggle Pin RB3 when it counts up from 0 to 200. assume Xtal=10 MHz. pic18 you can use any input or output
Using uVision: Write a 2 Port B. U inCprogram that generates a 1 second square wave on Pin sing the generated signal from that Pin 2, as an input to Pin 3 Port B. th e ed LED at the same rate and the Blue LED at half the rate of the Red LED. (Turn in your source code as Q7.c)
