An objective lens has a focal length of 1.5 cm and the object is positioned 1.7...

An objective lens has a focal length of 1.5 cm and the object is positioned 1.7 cm(do) from the objective lens, what is the distance between the objective lens and the image (di) produced by the objective lens? What is the magnification produced by the objective lens?

The real image formed by the objective lens then becomes the "object" for the eyepiece lens. If the objective and eyepiece lenses are 15.0 cm apart, what is the distance between the "object" and the objective lens(new do)?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

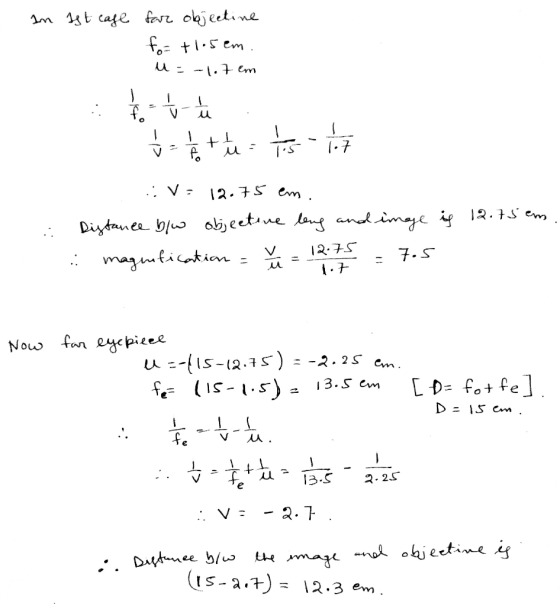

Answer #1

0 0
Add a comment
