Two concentric spherical shells radii 5cm and 10cm are charged with 4uC and 8uC respectively. What...

Two concentric spherical shells radii 5cm and 10cm are charged with 4uC and 8uC respectively. What is the electric potential at r= 0, r= 7.5cm, and r= 15cm?

V1=

V2=

V3=



science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

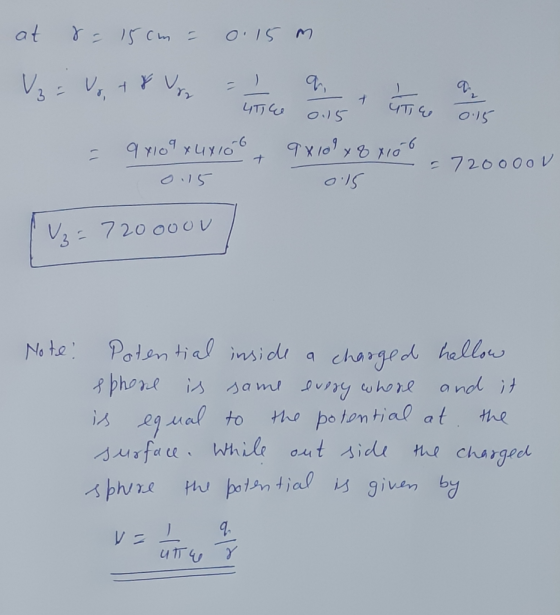

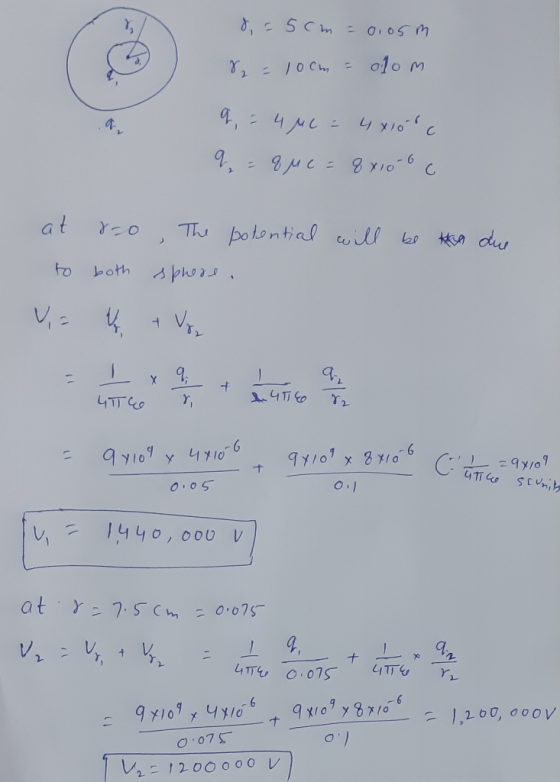

Answer #1

0 0
Add a comment
