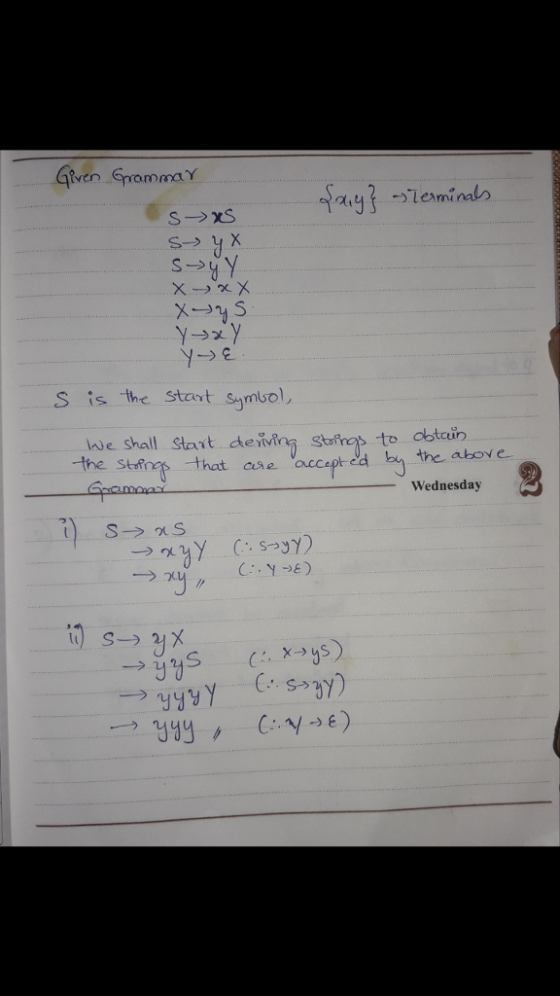

Consider the following regular grammar with start symbol S and terminals {x, y}. S → xS...
Consider the following regular grammar with start symbol S and terminals {x, y}.
S → xS
S → yX
S → yY
X → xX
X → yS
Y → xY
Y → λ

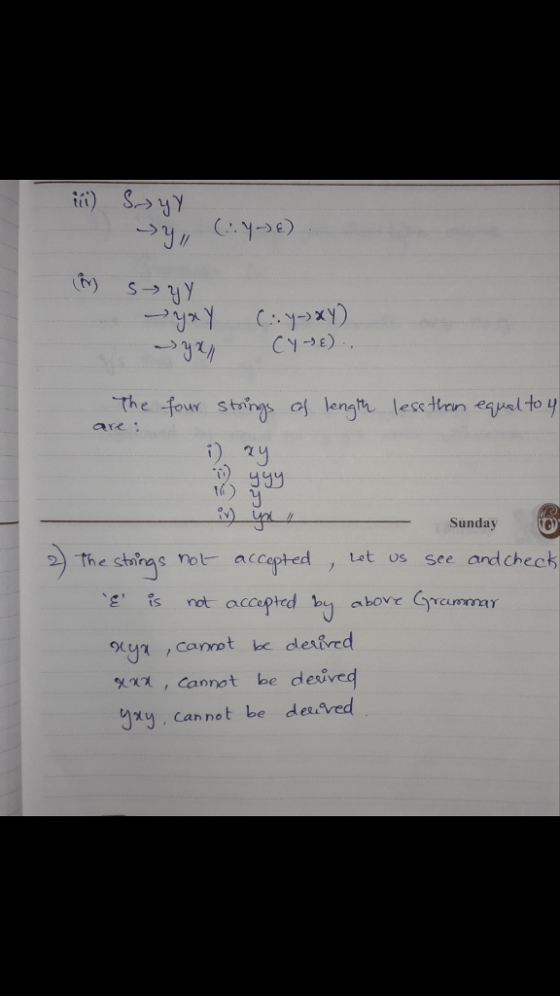

List four strings, each of length less than 4, accepted by this
grammar. (Include ε if it is accepted.)
List four strings, each of length less than 4, not accepted by this grammar. (Include ε if it is not accepted.)

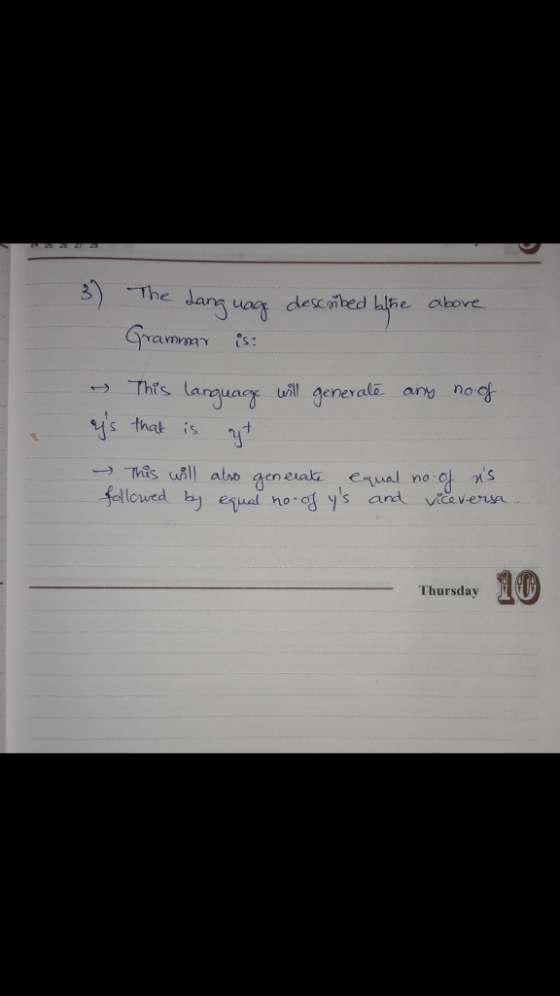

In English, describe the language represented by this grammar.
Homework Answers
