Part 1: Air at 1 atm and 200° C occupies an initial volume Vi of 1000...

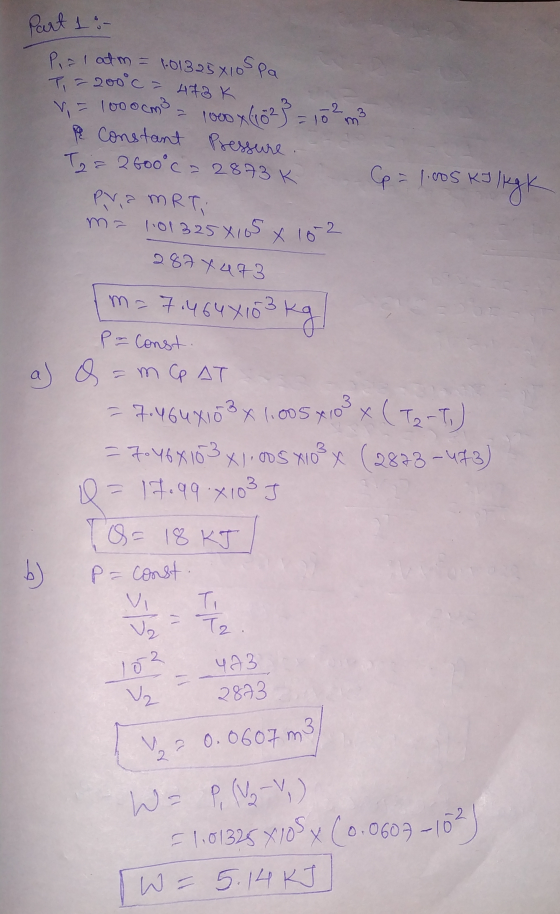

Part 1: Air at 1 atm and 200° C occupies an initial volume Vi of 1000 cm3 in a cylinder. The air is confined by a piston which has a constant restraining force so that the gas pressure remains constant. Heat is added to the air until its temperature reaches 2600° C.
- Calculate the heat added
- Calculate the work done by the gas
- Calculate the change in internal energy of the gas

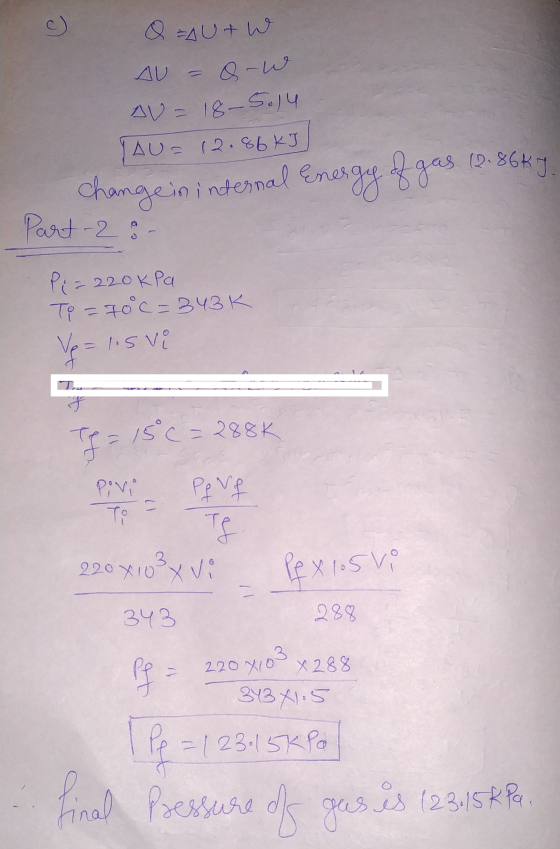

Part 2: An ideal gas is contained in a closed assembly with an initial pressure Pi of 220 kPA and initial temperature Ti of 70oC. If the volume of the system is increased to 1.5 times the initial volume and the temperature drops to 15o C, determine the final pressure of the gas.
