A crystal sample of bacteriorhodopsin, a light-sensitive protein found in halobacteria that responds to light energy,...

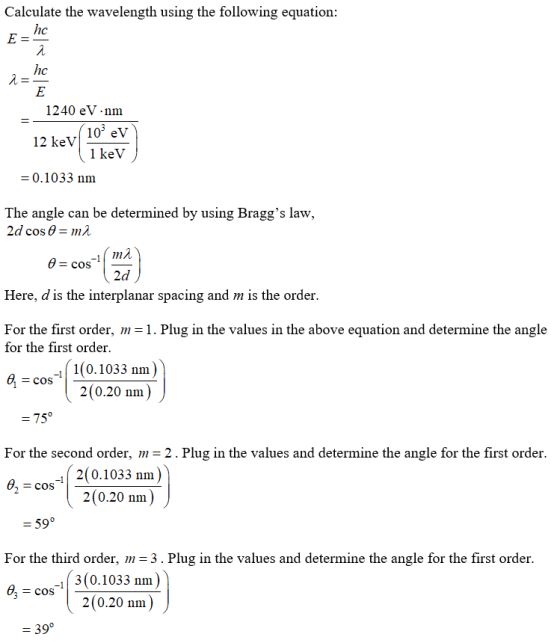

A crystal sample of bacteriorhodopsin, a light-sensitive protein found in halobacteria that responds to light energy, has crystal planes separated by 0.20 nm . Part A If a beam of 12 keV x rays illuminates a sample, what angles will give diffraction maxima of the first, second and third order? Express your answers in degrees separated by commas in ascending order.
Homework Answers
Add Answer to:
A crystal sample of bacteriorhodopsin, a light-sensitive protein
found in halobacteria that responds to light energy,...
A 500 lines per mmmm diffraction grating is illuminated by light of wavelength 630 nm. 1....
A 500 lines per mmmm diffraction grating is illuminated by light of wavelength 630 nm. 1. What is the maximum diffraction order seen? Express your answer as an integer. 2. What is the angle of each diffraction order starting from zero diffraction order to the maximum visible diffraction order? Enter your answers in degrees in ascending order separated by commas.
Q1- The atoms in a crystal are modelled as hard spheres in contact. Calculate the Atomic radius i...
Q1- The atoms in a crystal are modelled as hard spheres in contact. Calculate the Atomic radius in a fcc lattice with lattice constant 3.6 A Q2- (a) The atomic in a crystal are modelled as hard spheres in constant. Calculate the atomic radius in a fcc lattice with lattice constant 3.6 A. (b) Consider three-dimensional simple cubic lattice with lattice constant a. What is the distance from the center to a corner of the first Brillouin Zone in the...
(a) (4 marks) Unpolarised light is incident on a set of three polarising sheets as shown...
(a) (4 marks) Unpolarised light is incident on a set of three polarising sheets as shown in the figure. The polarising directions of the first and third sheets make angles 01 = 0.0°, and 03 = 90.0° to the vertical, respectively. Find the fraction of the incident intensity that passes through the set of three sheets when 02 is (i) 0°, (ii) 90°, and (iii) 45.00 Air Glass (b) (6 marks) Two rays of light are propagating through a glass...
(a) (4 marks) Unpolarised light is incident on a set of three polarising sheets as shown in the figure. The polarising directions of the first and third sheets make angles 01 = 0.0°, and 03 = 90.0° to the vertical, respectively. Find the fraction of the incident intensity that passes through the set of three sheets when 02 is (i) 0°, (ii) 90°, and (iii) 45.00 Air Glass (b) (6 marks) Two rays of light are propagating through a glass...
