PLEASE ANSWER THIS Thermodynamics. Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at...

PLEASE ANSWER THIS Thermodynamics.

Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 202°C from a pressure of 9.9 bar to a pressure of 1.7 bar. Evaluate the work, in kJ/kg.

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

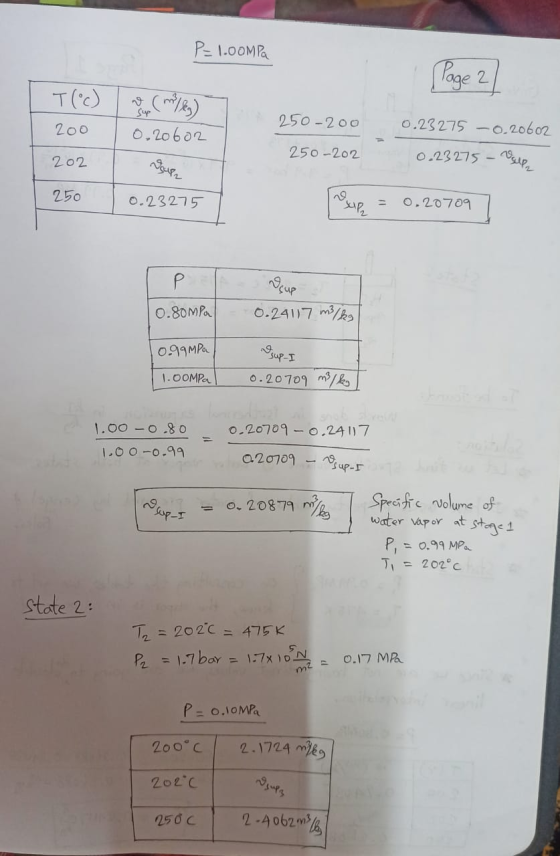

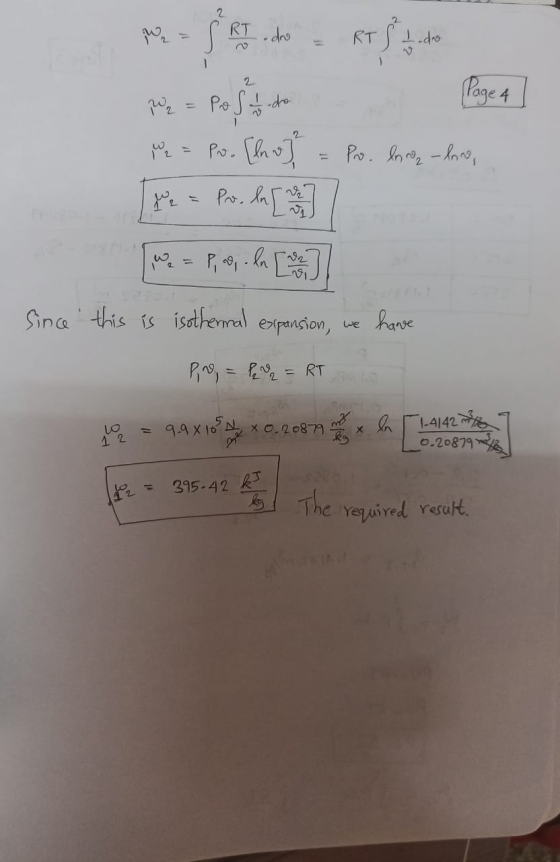

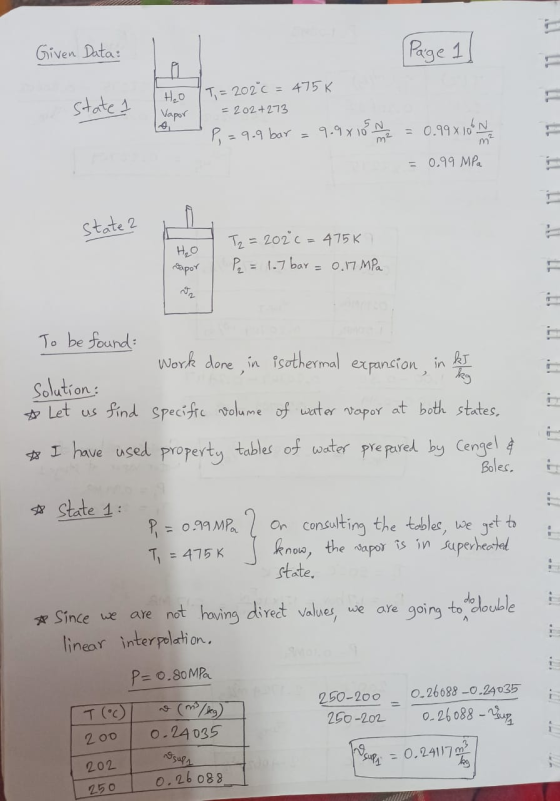

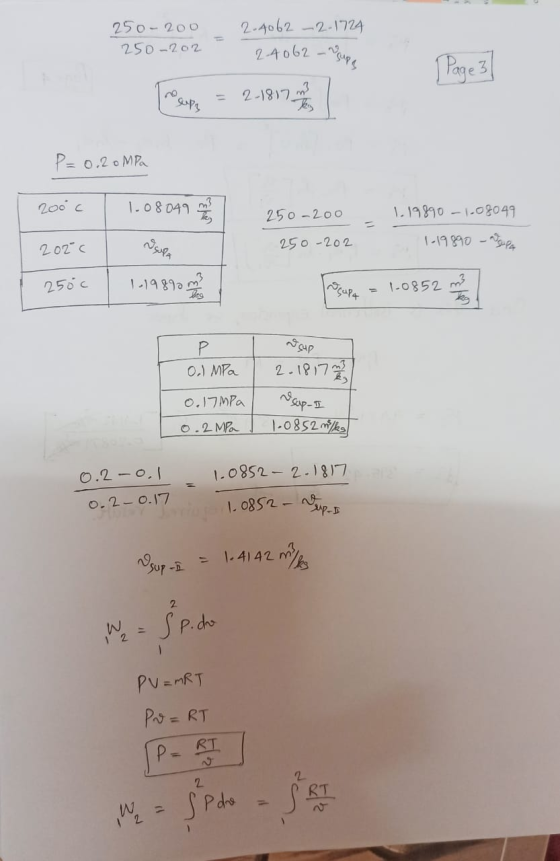

All the above data are taken from Property tables as given in Thermodyamics 9E by Cengel and Boles. Since the given values T = 202oC and P1 = 9.9 bar and P2 = 1.7 bar can not be found directly in property tables, double linear interpolation process of finding the necessary values is explained in detail above.

0 0
