A cylindrical water-storage tank has a height of 8.3 m and a radius of 5.8 m....

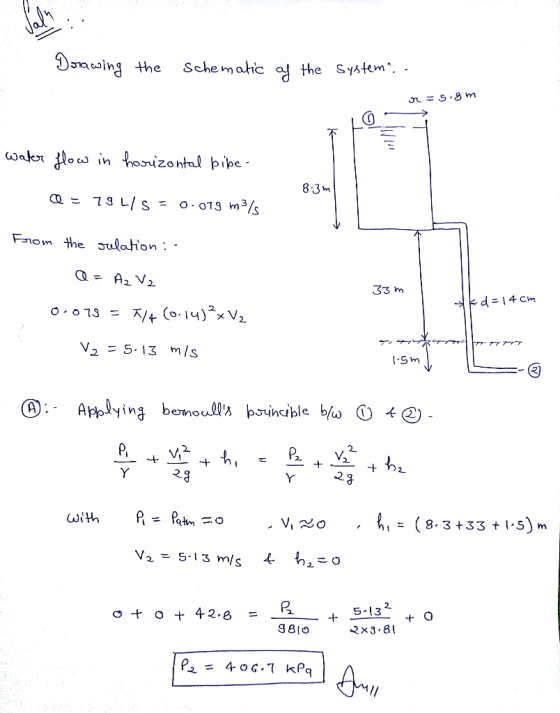

A cylindrical water-storage tank has a height of 8.3 m and a radius of 5.8 m. The storage tank is full of water but is vented to the atmosphere. The bottom of the tank is 33 m off the ground. A 14 cm diameter pipe runs vertically down from the tank and goes 1.5 m underground before turning horizontal. The water flow in the horizontal pipe is 79 L/s.
A) What is the water pressure (gauge) in the horizontal pipe underground?

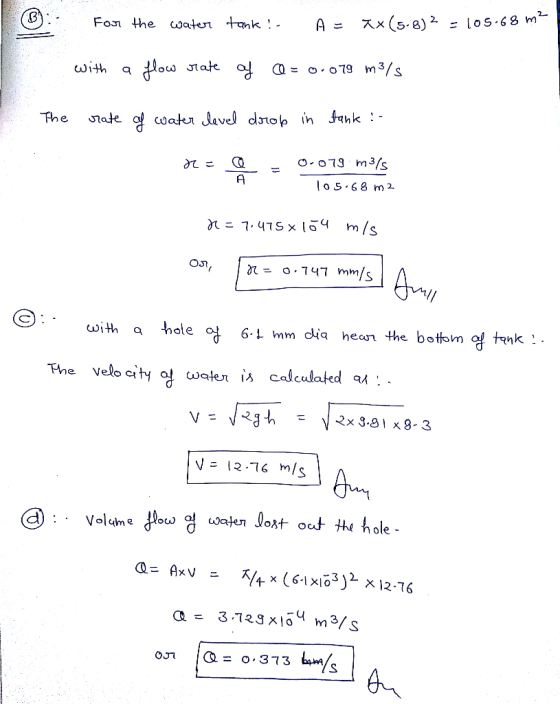

B) How fast does the water level in the tank drop?
C) Rick Barnes drills a 6.1 mm diameter hole near the bottom of the tank. How fast does the water shoot out?
D) What volume flow of water is lost out the hole?
Homework Answers
Add Answer to:
A cylindrical water-storage tank has a height of 8.3 m and a
radius of 5.8 m....
4 A cylindrical water-storage tank has a height of 7.7 m and a radius of 6.3...
4 A cylindrical water-storage tank has a height of 7.7 m and a radius of 6.3 m. The storage tank is full of water but is vented to the atmosphere. The bottom of the tank is 32 m off the ground. A 11 cm diameter pipe runs vertically down from the tank and goes 1.8 m underground before turning horizontal. The water flow in the horizontal pipe is 72 L/s. MPLE I NOIES | IMAGES İ Discuss | | uNITS...
A cylindrical water-storage tank has a height of 8.1 m and a radius of 6.4 m. The storage tank tank is 30 m off the gro...
A cylindrical water-storage tank has a height of 8.1 m and a radius of 6.4 m. The storage tank tank is 30 m off the ground. A 12 cm diameter pipe runs vertically down from the tank and goes 1.9 m underground before turning horizontal. The water flow in the horizontal pipe is 77 L/s. full of water but is vented to the atmosphere. The bottom of the EXAMPLE оТES IMAGES DISCUSS UNITS STATS HELP Answer Description Chk History rt...
A tall storage tank contains liquid water at 17.5oC and is vented to atmosphere at the...
A tall storage tank contains liquid water at 17.5oC and is vented to atmosphere at the top (where atmospheric pressure = 760mm Hg). The distance from the bottom of the tank to the liquid surface level is 8.0 m. What will be the absolute pressure at the bottom of the tank?
Draining of cylindrical tank. You have a cylindrical tank full of water with a diameter =Dtank....
Draining of cylindrical tank. You have a cylindrical tank full of water with a diameter =Dtank. The height (htank) is changing with time. You are draining the tank through a hole in the bottom. The hole has a diameter Dhole. The velocity of the water leaving the tank depends on the height of the water and can be given as: v2 = 2 g htank. When the hole is first opened, the height of the water is ho. Draw and...
A large storage tank, open to the atmosphere at the top and filled with water, developed...
A large storage tank, open to the atmosphere at the top and filled with water, developed a small hole in its side 13.9 m below the water level. The rate of flow from the leak is 2.10 x 10^-3 m^3 / min. A) determine the speed at which the water leaves the hole. B) determine the diameter of the hole.
A storage tank contains ethanol (density 8.1×102kg/m3). The tank is 4.0 m in radius, the short...
A storage tank contains ethanol (density 8.1×102kg/m3). The tank is 4.0 m in radius, the short pipe at the bottom of the tank is 1.0 cm in radius, and the height of ethanol in the tank is 3.2 m. The volume flow rate of ethanol from the short pipe is 4.4×10−3m3/s. What is the gauge pressure of the air inside the tank in the space above the ethanol?
a cylindrical water storage 12. in diameter and 8m high, is filled through a 100 mm...
a cylindrical water storage 12. in diameter and 8m high, is filled through a 100 mm pipe carrying a velocity of 40 m/s. (a) how long it will take to fill the tank? (b) if the tank has an out flow pipe at the bottom with a capacity of 0.12 m^3/s discharge rate and both inflow and outflow pipes are opened at the same time, compute the time rate of the rise of the water level. (c) compute the time...
Problem #2 Water tank is supplied with water at a flow rate Q = 0.005 m/s....
Problem #2 Water tank is supplied with water at a flow rate Q = 0.005 m/s. A 5 cm diameter, 15 m long pipe is attached to the tank at the bottom and discharges to the atmosphere as shown in the figure. The pipe has roughness e = 0.0015 mm and the water is at 18°C. Answer the following: a) If the depth of water in the tank is initially 7 m, does the amount of water in the tank...
3. (3 points) A tank of diameter D is filled with water up to a height...
3. (3 points) A tank of diameter D is filled with water up to a height h above the bottom of the tank (Figure 3). At the bottom of the tank is a hole of diameter d. Assume that the water flows out of the hole with a laminar flow and that the difference in atmospheric pressure between the top and the bottom of the tank is negligible Figure 3: A lank draining a) What speed will the water have...
a house at the bottom of a hill is fed by a full tank of water 5m deep and connected to the house by a pipe that is 110m long at an angle of 58 from the horizontal
a house at the bottom of a hill is fed by a full tank of water 5m deep and connected to the house by a pipe that is 110m long at an angle of 58 from the horizontal. a) determine the water gauge pressure at the house b) how high could the water shoot if it came vertically out of a broken pipe in front of the house?
4 A cylindrical water-storage tank has a height of 7.7 m and a radius of 6.3 m. The storage tank is full of water but is vented to the atmosphere. The bottom of the tank is 32 m off the ground. A 11 cm diameter pipe runs vertically down from the tank and goes 1.8 m underground before turning horizontal. The water flow in the horizontal pipe is 72 L/s. MPLE I NOIES | IMAGES İ Discuss | | uNITS...
A cylindrical water-storage tank has a height of 8.1 m and a radius of 6.4 m. The storage tank tank is 30 m off the ground. A 12 cm diameter pipe runs vertically down from the tank and goes 1.9 m underground before turning horizontal. The water flow in the horizontal pipe is 77 L/s. full of water but is vented to the atmosphere. The bottom of the EXAMPLE оТES IMAGES DISCUSS UNITS STATS HELP Answer Description Chk History rt...
Draining of cylindrical tank. You have a cylindrical tank full of water with a diameter =Dtank. The height (htank) is changing with time. You are draining the tank through a hole in the bottom. The hole has a diameter Dhole. The velocity of the water leaving the tank depends on the height of the water and can be given as: v2 = 2 g htank. When the hole is first opened, the height of the water is ho. Draw and...
Problem #2 Water tank is supplied with water at a flow rate Q = 0.005 m/s. A 5 cm diameter, 15 m long pipe is attached to the tank at the bottom and discharges to the atmosphere as shown in the figure. The pipe has roughness e = 0.0015 mm and the water is at 18°C. Answer the following: a) If the depth of water in the tank is initially 7 m, does the amount of water in the tank...
3. (3 points) A tank of diameter D is filled with water up to a height h above the bottom of the tank (Figure 3). At the bottom of the tank is a hole of diameter d. Assume that the water flows out of the hole with a laminar flow and that the difference in atmospheric pressure between the top and the bottom of the tank is negligible Figure 3: A lank draining a) What speed will the water have...
