For R134a, using the Clausius–Clapeyron equation, can you calculate the final temperature if the initial temperature...

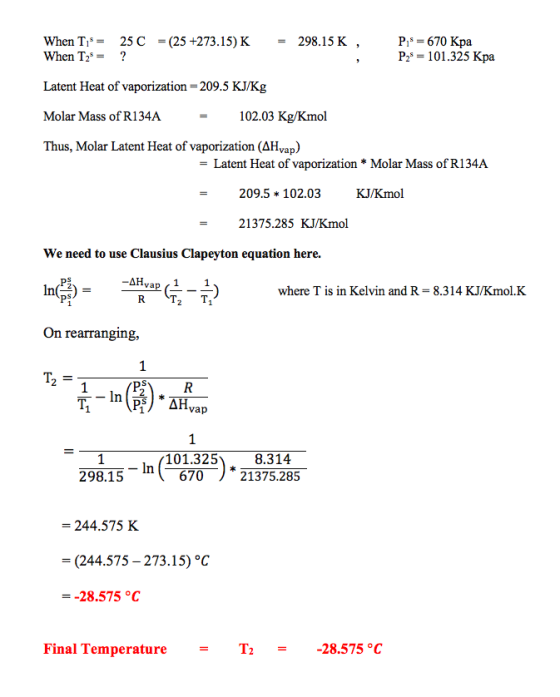

For R134a, using the Clausius–Clapeyron equation, can you calculate the final temperature if the initial temperature is 25C, initial pressure is 670 kPa, final pressure is 101.325 kPa and the latent heat of vaporization of R134a is 209.5 kJ/kg. Thank you.
Homework Answers
Add Answer to:
For R134a, using the Clausius–Clapeyron equation, can you
calculate the final temperature if the initial temperature...
Using the Clausius Clapeyron equation determine the vapor pressure of water at 50.0 degrees C
Using the Clausius Clapeyron equation determine the vapor pressure of water at 50.0 degrees C. The molar heat of vaporization of water is 40.7 kJ/mol. How do you solve this?
8. (a) Use the Clausius-Clapeyron equation and calculate the vapor pressure (mm Hg) of butanone at...
8. (a) Use the Clausius-Clapeyron equation and calculate the vapor pressure (mm Hg) of butanone at 45 °C, given that the vapor pressure is 100 mm Hg at a temperature of 25 °C. The enthalpy of vaporization of butanone is 34.0 kJ/mol. (b) Calculate the enthalpy of vaporization for a compound if its vapor pressure is 26 mm Hg at 20°C and 167 mm Hg at 55 °C.
The clausius-clapeyron equation relates the temperature and the pressure of a chemical system to it's Heat...
The clausius-clapeyron equation relates the temperature and
the pressure of a chemical system to it's Heat of
vaporization.
fure and the pressure of a chemical system 2. The Clausius-Clapeyron Equation relates the temperature and the pres to its Heat of Vaporization (AH...): P. AH (1 1 ) re and pressure of a system, from which the mined. Below is a table of data for one of Experiments are conducted to measure the temperature and pressure Heat of Vaporization (AH..) for...
The Clausius-Clapeyron Equation (hopefully introduced to you in General Chemistry) can be used to relate the...
The Clausius-Clapeyron Equation (hopefully introduced to you in General Chemistry) can be used to relate the temperature and vapor pressure of a pure liquid given its heat of vaporization. It can be used to create a specialized nomograph for each compound as shown in Figure 6.1 of your text for hydrocarbons and carboxylic acids. In a simplified form it is given in Equation 6.1 of your book for nitrobenzene. ln(P1P2)=ΔHvapR(1T2−1T1) Given that: 0 °C = 273.15 °K, Hvap(benzaldehyde) = 45.9...
Use the Clausius-Clapeyron equation to calculate the temperature (°C) at which pure water would boil at...
Use the Clausius-Clapeyron equation to calculate the temperature (°C) at which pure water would boil at a pressure of 400.0 torr. Temperature = ___°C the vapor pressure of h20 at this temperature is _____ torr.
(20 points total) Given two phases in equilibrium, it is possible to develop the Clausius-Clapeyron Equation:...
(20 points total) Given two phases in equilibrium, it is possible to develop the Clausius-Clapeyron Equation: In C) = _Afyon _) (5 points Using no more than three complete sentences in Standard English explain how this equation can best be used to experimentally determine a molar heat of vaporization. (5 points) Using no more than three complete sentences in Standard English, explain the role that the concept of chemical potential plays in developing the Clausius-Clapeyron equation. (5 points Using no...
Use of Clausius-Clapeyron Equation 3- The vapor pressure of liquid ethanol at various temperatures is given below....
Use of Clausius-Clapeyron Equation 3- The vapor pressure of liquid ethanol at various temperatures is given below. Estimate the heat of vaporization of this compound at 170. oW. Pbuh (kPa) 0.6667 1.333 2.667 5.333 8.00 13.33 T (°C)12.0-2.3 8.0 19.0 26.0 34.9 Equations P (RT/V-b))-(a/(T V(V+b))) (0.42748 R2 Tc25 ) / Pc b (0.08664 R Te ) / Pe a
Use of Clausius-Clapeyron Equation 3- The vapor pressure of liquid ethanol at various temperatures is given below. Estimate the heat...
15. According to the Clausius-Clapeyron equation ln va R T T P"арф) refers to the vapor...
15. According to the Clausius-Clapeyron equation ln va R T T P"арф) refers to the vapor pressure at temperature 1, R-2 cal/mol-K, and Ah is the heat of changc associated with the process of transitioning to the vapor (cither sublimation or vaporization depending on whether the transition is from solid to vapor or liquid to vapor) i.e., дН-H vapor-H , where X is either solid or liquid and H denotes the corresponding molar enthalpy. Use the Clausius-Clapeyron equation to solve...
Determine enthalpy of vaporization graphically using the Clausius-Clapeyron equation. The vapor pressure of pentane (C5H12) has...
Determine enthalpy of vaporization graphically using the Clausius-Clapeyron equation. The vapor pressure of pentane (C5H12) has been measured over a range of temperatures. (a) Which of the following should give a linear plot (temperatures in K)? On the x-axis: — On the y-axis: C (b) When the appropriate plot is made, the resulting straight line has a slope of -3.38x103 K. Use this information to determine AHvap for C5H12. kJ/mol Check & Submit Answer Show Approach
i need help with this page. please be organized. thank you - () - C, D)...
i need help with this page. please be organized.
thank you
- () - C, D) Activity: Clausius-Clapeyron Equation The Clausius Clapeyron equation allows us to find the vapor pressure at one temperature if we know the vapor pressure at another temperature and the AH Use the Clausius-Claperyon equation (given below) to solve the following problem. 1. Methanol has a normal boiling point of 64.6°C and a heat of vaporization (AHp) of 35.2 kJ/mol. What is the vapor pressure of...
8. (a) Use the Clausius-Clapeyron equation and calculate the vapor pressure (mm Hg) of butanone at 45 °C, given that the vapor pressure is 100 mm Hg at a temperature of 25 °C. The enthalpy of vaporization of butanone is 34.0 kJ/mol. (b) Calculate the enthalpy of vaporization for a compound if its vapor pressure is 26 mm Hg at 20°C and 167 mm Hg at 55 °C.
The clausius-clapeyron equation relates the temperature and
the pressure of a chemical system to it's Heat of
vaporization.
fure and the pressure of a chemical system 2. The Clausius-Clapeyron Equation relates the temperature and the pres to its Heat of Vaporization (AH...): P. AH (1 1 ) re and pressure of a system, from which the mined. Below is a table of data for one of Experiments are conducted to measure the temperature and pressure Heat of Vaporization (AH..) for...
(20 points total) Given two phases in equilibrium, it is possible to develop the Clausius-Clapeyron Equation: In C) = _Afyon _) (5 points Using no more than three complete sentences in Standard English explain how this equation can best be used to experimentally determine a molar heat of vaporization. (5 points) Using no more than three complete sentences in Standard English, explain the role that the concept of chemical potential plays in developing the Clausius-Clapeyron equation. (5 points Using no...
Use of Clausius-Clapeyron Equation 3- The vapor pressure of liquid ethanol at various temperatures is given below. Estimate the heat of vaporization of this compound at 170. oW. Pbuh (kPa) 0.6667 1.333 2.667 5.333 8.00 13.33 T (°C)12.0-2.3 8.0 19.0 26.0 34.9 Equations P (RT/V-b))-(a/(T V(V+b))) (0.42748 R2 Tc25 ) / Pc b (0.08664 R Te ) / Pe a
Use of Clausius-Clapeyron Equation 3- The vapor pressure of liquid ethanol at various temperatures is given below. Estimate the heat...
15. According to the Clausius-Clapeyron equation ln va R T T P"арф) refers to the vapor pressure at temperature 1, R-2 cal/mol-K, and Ah is the heat of changc associated with the process of transitioning to the vapor (cither sublimation or vaporization depending on whether the transition is from solid to vapor or liquid to vapor) i.e., дН-H vapor-H , where X is either solid or liquid and H denotes the corresponding molar enthalpy. Use the Clausius-Clapeyron equation to solve...
Determine enthalpy of vaporization graphically using the Clausius-Clapeyron equation. The vapor pressure of pentane (C5H12) has been measured over a range of temperatures. (a) Which of the following should give a linear plot (temperatures in K)? On the x-axis: — On the y-axis: C (b) When the appropriate plot is made, the resulting straight line has a slope of -3.38x103 K. Use this information to determine AHvap for C5H12. kJ/mol Check & Submit Answer Show Approach
i need help with this page. please be organized.
thank you
- () - C, D) Activity: Clausius-Clapeyron Equation The Clausius Clapeyron equation allows us to find the vapor pressure at one temperature if we know the vapor pressure at another temperature and the AH Use the Clausius-Claperyon equation (given below) to solve the following problem. 1. Methanol has a normal boiling point of 64.6°C and a heat of vaporization (AHp) of 35.2 kJ/mol. What is the vapor pressure of...
