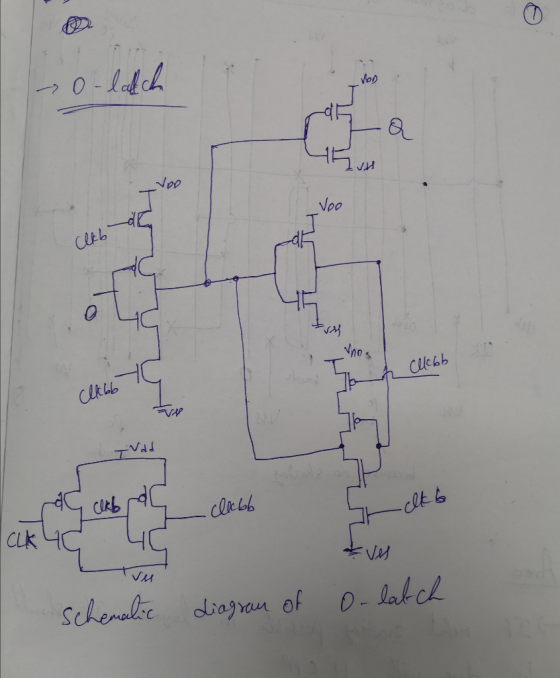

for D latch circuit;
1. Draw the transistor-level schematic

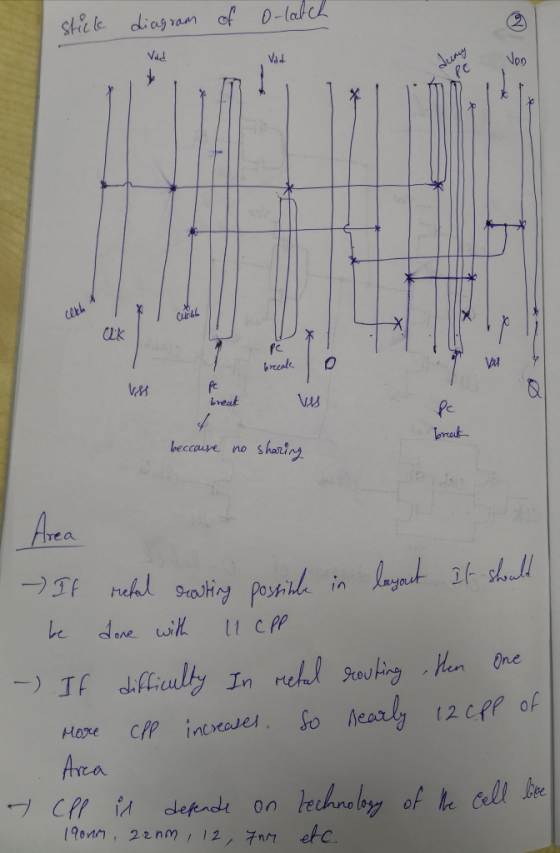

2. Draw its stick diagram
3. Estimate its area
for D latch circuit; 1. Draw the transistor-level schematic 2. Draw its stick diagram 3. Estimate...
Draw the gate level circuit schematic of a D flip-flop and a T flip-flop based on the cross-coupled NAND latch. Briefly discuss the timing behavior of a D flip-flop, a T flip-flop and a latch. (a) (8 Marks) circuit has three inputs, S, C and C2. S is the control input. When S-O, the circuit behaves like a D flip-flop, and when S-1, the circuit behaves like a T flip-flop. The input characteristics of the circuit are tabulated in Table...
(a) A negative-level sensitive (negative triggered) D latch circuit can be designed using a circuit as shown in Figure 3 CLK DH CLK ola CLK Figure 3 Obtain the equation for the output of the circuit, Q. Analyse the circuit and determine when the circuit is in 'transparent form and "opaque' form with regards to the clock input. Assess the output at these two forms. (ii) Modify the circuit to produce a positive-level sensitive (positive triggered) D latch. Draw and...
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop. b) (5 marks) A gated SR latch has the following schematic diagram CLK a) Draw a timing diagram showing the Q and Q outputs for the following sequence of inputs: CLK R Assume that the initial state of the outputs is Q 0 and Q 1 c) (5 marks) Draw a schematic diagram for a rising edge-triggered master-slave D flip- flop built using two...
Vlsi:
Please draw the stick diagram for this transistor diagram
using the right color schematics.
Note: Alarm is the output and everything else is the
input.
VoD Vos ligh Aloor ighb
Consider the design of a CMOS compound OR-OR-AND-INVERT (OA122) gate computing F-A+ B)-(C + D). a) sketch a transistor-level schematic b) sketch a stick diagram c) estimate the area from the stick diagram d) layout your gate with a CAD tool using unit-sized transistors e) compare the lavout size to the estimated area 1.17
Draw the following schematic circuit diagram and label them accordingly: (a) Draw the schematic for a circuit in which a 10 V battery, a 100 resistor, and a 220 resistor are all in series with one another. Determine the voltage across each resistor and the current owing through each resistor. (b) Draw the schematic for a circuit in which a 10 V battery, a 100 resistor, and a 220 resistor are all in parallel with one another. Determine the voltage...
7. (20pt) For the following Stick Diagram: • (a) Draw the Circuit Diagram. • (b) Which two transistors have shared diffusion? • (c) Write the Boolean Function Equation for OUT. (d) Draw the Logic Diagram using NAND, NOR, INV. (e) Which important items and layers may be missing in the below stick diagram? E D A B C Vdd P+ Active Out N* Active Gnd Metal Poly
from 6 to 1 and from 4 to 1
Draw the schematic diagram for the circuit shown in Figure W1.1 using schematic capture software (refer Table 2). The drawing should include labels for DC supply and 1/O pin numbers as in the actual ic pin configuration (Refer AN2). W1.2 Instruction You are required to design and built a 1-digit decimal down counter from decimal value A to decimal valuie Ron a breadboard (refer ANI). Values of A and B will...
1) Sketch a transistor-level schematic for a compound CMOS logic gate for each of the following functions: a. A 3-input XOR gate b. The function Y = ABC + D c. The function Y = (AB + C) · D
2, From the layout below draw the Stick Diagram and circuit using transistors. KEY BLACK ■ CON. BLUEMETAL RED POLY DIFF. THINOX GREEN = YELLOW -"? IMP. " L :W LW (1:2)
2, From the layout below draw the Stick Diagram and circuit using transistors. KEY BLACK ■ CON. BLUEMETAL RED POLY DIFF. THINOX GREEN = YELLOW -"? IMP. " L :W LW (1:2)
