Nonsinusoidal Waveforms (pulse waveforms) A) Sketch two square waves, one with an average value of zero...
Nonsinusoidal Waveforms (pulse waveforms)

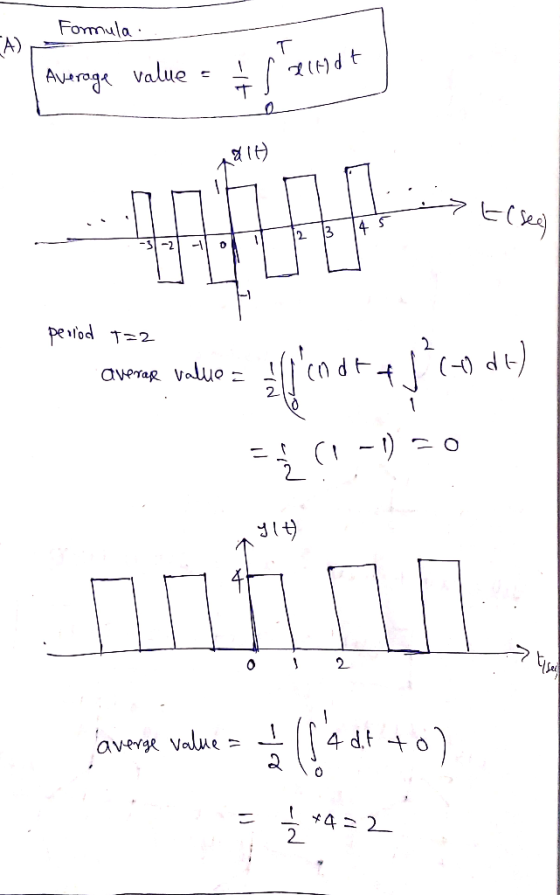

A) Sketch two square waves, one with an average value of zero and one with an average value of 2 V. Label ALL pertinent amplitude and time quantities.

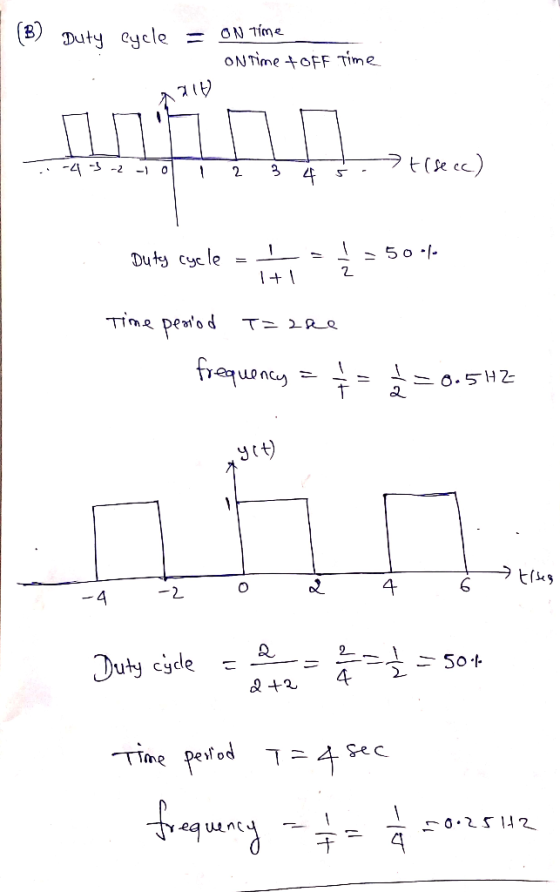

B) Sketch two waveforms with the same duty cycle but different frequencies. Be sure to label all time and amplitude values.
Homework Answers
Add Answer to:
Nonsinusoidal Waveforms (pulse waveforms)
A) Sketch two square waves, one with an average value
of zero...
