A 24-V battery is connected in series with a resistor and an inductor, with R = 7.8 Ω and L = 5.2 H, respectively.

(a) Find the energy stored in the inductor when the current reaches its maximum value.

J

(b) Find the energy stored in the inductor one time constant after the switch is closed.

J

science physics

Answer 1

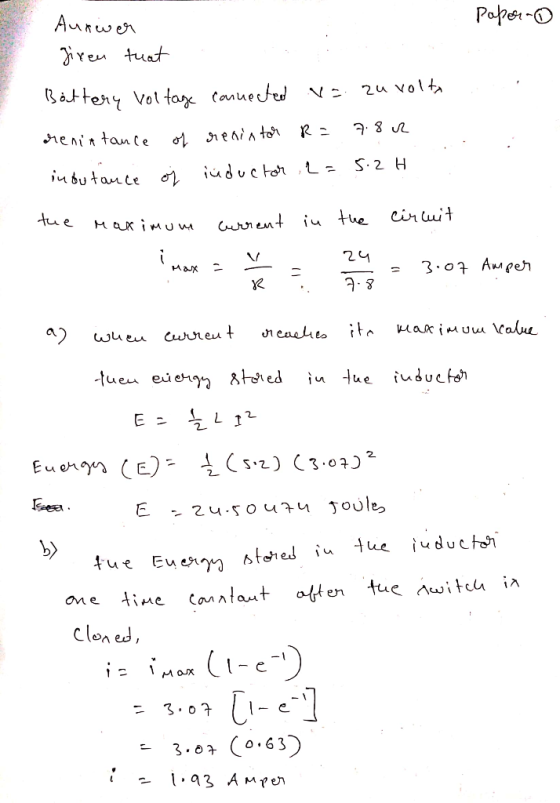

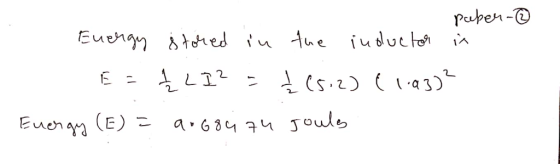

Answer #1
