Question

Help with java . can someone make it compile with pictures please!

For this project, you will design and implement a program that analyzes baby name popularities in data provided by the Social Security Administration.

Every 10 years, the data gives the 1,000 most popular boy and girl names for kids born in the United States. The data can be boiled down to a single text file as shown below. On each line we have the name, followed by the rank of that name in 1900, 1910, 1920, ... 2000 (11 numbers). A rank of 1 was the most popular name that year, while a rank of 997 was not very popular. A 0 means the name did not appear in the top 1,000 that year at all. The elements on each line are separated from each other by a single space. The lines are in alphabetical order, although we will not depend on that.

Sam 58 69 99 131 168 236 278 380 467 408 466

Samantha 0 0 0 0 0 0 272 107 26 5 7

Samara 0 0 0 0 0 0 0 0 0 0 886

Samir 0 0 0 0 0 0 0 0 920 0 798

Sammie 537 545 351 325 333 396 565 772 930 0 0

Sammy 0 887 544 299 202 262 321 395 575 639 755

Samson 0 0 0 0 0 0 0 0 0 0 915

Samuel 31 41 46 60 61 71 83 61 52 35 28

Sandi 0 0 0 0 704 864 621 695 0 0 0

Sandra 0 942 606 50 6 12 11 39 94 168 257

The complete file is here : https://owd.tcnj.edu/~papamicd/name_data.txt

Classes Required

• NameRecord—encapsulates the data for one name: the name and its rank over the years. This is essentially the data of one line from the file shown above. Use an int array to store the int rank numbers. The NameRecord constants START=1900 and DECADES=11 define the start year and the number of decades in the data.

Methods:

• Constructor—takes a String line as in the file above and sets up the NameRecord object.
• String getName()—returns the name.
• int getRank(int decade)—returns the rank of the name in the given decade. Use the convention that decade=0 is 1900, decade=1 is 1910, and so on.
• int bestYear()—returns the year where the name was most popular, using the earliest year in the event of a tie. Looking at the data above Samir's best year is 2000, while Sandra's best year is 1940. Returns the actual year, for example 1920, so the caller does not need to adjust for START. It is safe to assume that no rank in the data is ever larger than 1100 and every name has at least one year with a non-zero rank.
• void plot()—uses the StdDraw class to plot the popularity of the name over the 11 decades in a random color. Available colors are BLACK, BLUE, CYAN, DARK_GRAY, GRAY, GREEN, LIGHT_GRAY, MAGENTA, ORANGE, PINK, RED, WHITE, and YELLOW. You can scale the coordinate system appropriately, assuming that no rank is ever larger than 1100 and remembering that a rank of 1 should be on top of the image, while a rank of 1000 should be on the bottom. The StdDraw class can be downloaded. Documentation can be found online as well.

• NameSurfer—the driver. The main method should read all of the data from the file and store it in an array of NameRecord objects. It should then offer the following menu to the user:

1 – Find the best year for a name

2 – Find the best rank for a name

3 – Plot the popularity of a name

4 – Clear the plot

5 – Quit

Enter your selection.

If 1, 2, or 3 is entered, the program should prompt the user for a name, search for that name in the array, print (or plot) the desired information, and display the menu again. If the name is not found in the array (search should ignore the case), print an error message and display the menu again.

If 4 is entered, clear the plot by calling StdDraw.clear();

The program quits only when the plot window is closed.

NOTE: Remember to keep your objects encapsulated.

Formatting Requirements

• Follow indentation rules as discussed in class.
• Use descriptive variable names.
• Comment your code: Your name, name of the class and assignment at the beginning of program, and description of program functionality at the beginning of program. Every method should have a comment with a short description on top. Every instance variable should be followed by a comment that describes it on the same line.

Assessment

Evaluation of project success will be determined by the following criteria:

• NameRecord class has the correct instance variables and constants
• NameRecord constructor is implemented correctly
• getName is implemented correctly
• getRank is implemented correctly
• bestYear is implemented correctly
• plot is implemented correctly
• driver correctly reads data from name_data.txt and stores it in array
• driver prints user menu and reads user’s option
• search for name is performed correctly
• option 1 is handled correctly
• option 2 is handled correctly
• option 3 is handled correctly
• option 4 is handled correctly
• option 5 is handled correctly

Answer 1

PROGRAM:

/*

   Name:
   Class Name:
   Assignment:
   Project Name: Name Surfer
   Project Description: This is a simple project that uses the data provided by the Social Security Administration and analyses baby name popularities

*/

package project;

import java.util.*;
import java.lang.*;
import java.io.*;
import project.StdDraw;
import java.awt.Font;

class NameRecord{

   int START = 1900; // defines the start year
   int DECADES = 11; // defines the number of decades in data
   int[] ranks = new int[11]; // stores the rank of that name for the years 1900,1910,..,2000
   String name; // stores the name

   //Constructor to initialise the NameRecord object with the name nad its rank over the decades using individual lines from the file
   NameRecord(String line){
       String[] words = line.split(" ");// used to store all the words of a line , line is of the format - [ NAME RANK1 RANK2 ... RANK11 ]
       name = words[0];
       for(int i=1;i<12;i++){
           ranks[i-1] = Integer.parseInt(words[i]);
       }
   }

   //Simple function which returns the name of the NameRecord object
   String getName(){
       return name;
   }

   //Simple function to get the rank of a particular name in a decade(0-1900,1-1910,..,10-2000)
   int getRank(int decade){
       return ranks[decade];
   }

   //Simple function to return the year when the name was most popular
   int bestYear(){
       int bestFoundRank = 1111; //stores the best rank found so far while traversing the ranks array
       int bestYr = START; // stores the best year found so far while traversing the ranks array
       for(int i=0;i<11;i++){
           if(ranks[i]<bestFoundRank && ranks[i]>0){
               bestFoundRank = ranks[i];
               bestYr = START + i*10;
           }
       }
       return bestYr;
   }

}

class NameSurfer{

   public static void main(String[] args){

       Vector<String> lines = new Vector<String>();// used to store all the lines in the name_data.txt
       BufferedReader reader; // used to read all the lines from the name_data.txt file


       try{
           reader = new BufferedReader(new FileReader("/home/171070030/name_data.txt"));
           String line = reader.readLine(); //read the first line of the file

           //until lines are there read the lines and store them into the vector declared above
           while(line!= null){
               lines.add(line);
               line = reader.readLine();
           }

           //close the reader
           reader.close();

           int numberOfLines = lines.size(); //stores the number of lines
           Vector<NameRecord> records = new Vector<NameRecord>();//using the lines we create individual records and store them

           for(int i=0;i<numberOfLines;i++){
               NameRecord newRecord = new NameRecord(lines.elementAt(i));
               records.add(newRecord);
           }

           boolean validEntry = true; //used to terminate when 5 is selected as an option
           int selection; //stores the option selected by the user
           Scanner sc = new Scanner(System.in); //used for user input



           while(validEntry){


               //Displaying the menu
               System.out.println("1 - Find the best year for a name");
               System.out.println("2 - Find the best rank for a name");
               System.out.println("3 - Plot the popularity of a name");
               System.out.println("4 - Clear the plot");
               System.out.println("5 - Quit");
               System.out.println("Enter your selection");


               //obtain user's choice
               selection = sc.nextInt();
               String name; //used if options 1 or 2 or 3 is selected

               if(selection == 1){

                   //Find the best year for the name

                   boolean nameFound = false;
                   String temp = sc.nextLine();
                   System.out.print("Enter the name: ");
                   name = sc.nextLine();

                   for(int i=0;!nameFound && i<numberOfLines;i++){
                       if(records.elementAt(i).getName().equals(name)){
                           System.out.println(records.elementAt(i).bestYear());
                           nameFound = true;
                       }
                   }

                   if(!nameFound){
                       System.out.println("Name not found");
                   }

               }else if(selection == 2){

                   //Find the best rank for a name


                   boolean nameFound = false;
                   String temp = sc.nextLine();
                   System.out.print("Enter the name: ");
                   name = sc.nextLine();

                   int indexOfBestRank;

                   for(int i=0;!nameFound && i<numberOfLines;i++){
                       if(records.elementAt(i).getName().equals(name)){
                           indexOfBestRank = (records.elementAt(i).bestYear()-1900)/10;
                           System.out.println(records.elementAt(i).ranks[indexOfBestRank]);
                           nameFound = true;
                       }
                   }

                   if(!nameFound){
                       System.out.println("Name not found");
                   }

               }else if(selection == 3){

                   //Plot the popularity of the name

                   boolean nameFound = false;
                   System.out.print("Enter the name: ");
                   String tmp = sc.nextLine();
                   name = sc.nextLine();

                   //Setting up the canvas
                   StdDraw.setCanvasSize(800,800);
                   StdDraw.setXscale(0,120);
                   StdDraw.setYscale(0,1000);
                   StdDraw.setPenColor(StdDraw.BLACK);

                   for(int i=0;!nameFound && i<numberOfLines;i++){

                       if(records.elementAt(i).getName().equals(name)){

                           //Displaying the X and Y axis
                           StdDraw.line(2,10,119,10);
                           StdDraw.line(3,3,3,999);

                           StdDraw.setPenColor(StdDraw.RED);
                           nameFound = true;
                           int[] Ranks = records.elementAt(i).ranks;

                           //If any rank is 0 then replace it by 1111
                           for(int j=0;j<11;j++){
                               if(Ranks[j]==0)
                                   Ranks[j] = 1111;
                           }

                           //Drawing the first line by using the first two ranks i.e. of 1900 and 1910
                           StdDraw.line(10,7500*(1.0/Ranks[0]),20,7500*(1.0/Ranks[1]));

                           //Drawing the lines further using consecutive pair of points
                           for(int j=1;j<=9;j++){
                               StdDraw.line((j+1)*10,7500*(1.0/Ranks[j]),(j+2)*10,7500*(1.0/Ranks[j+1]));
                           }

                           //Displaying the points along with the co-ordinates
                           StdDraw.setPenColor(StdDraw.BLUE);
                           StdDraw.setPenRadius(0.008);
                           Font font = new Font("Arial", Font.ITALIC, 10);
                            StdDraw.setFont(font);
                           for(int j=0;j<11;j++){
                               StdDraw.point((j+1)*10,7500*(1.0/Ranks[j]));
                               StdDraw.textLeft((j+1)*10,7500*(1.0/Ranks[j]),"("+String.valueOf(1900+(j)*10)+","+String.valueOf(Ranks[j])+")");
                           }
                       }

                   }

                   if(!nameFound){
                       System.out.println("Name not found");
                   }

               }else if(selection == 4){

                       //Clear the plot

                       System.out.println("clearing the plot...");
                       StdDraw.clear();
               }else{

                      //Exits the program provided the plot is exited

                   System.out.println("Exiting the program...");
                   validEntry = false;
               }
           }
       }catch(IOException e){
           e.printStackTrace();
       }

   }
}

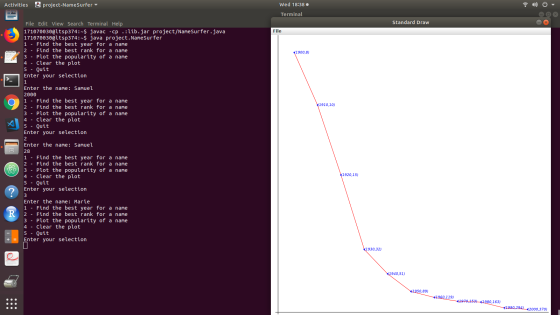

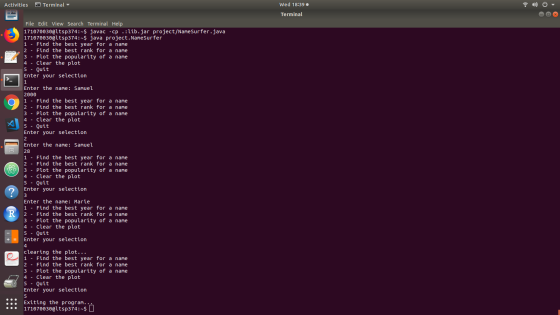

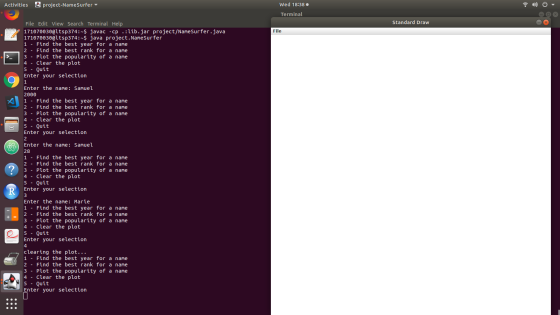

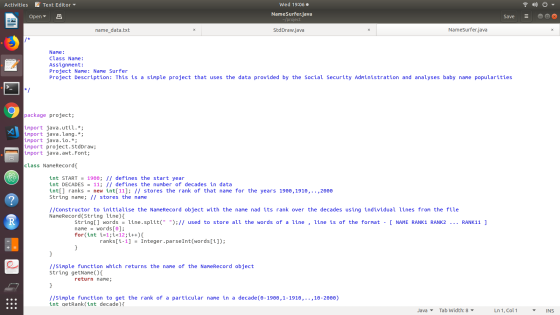

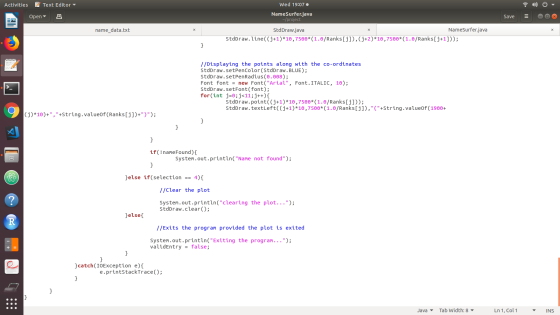

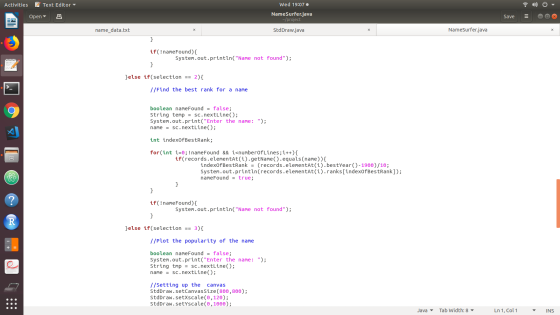

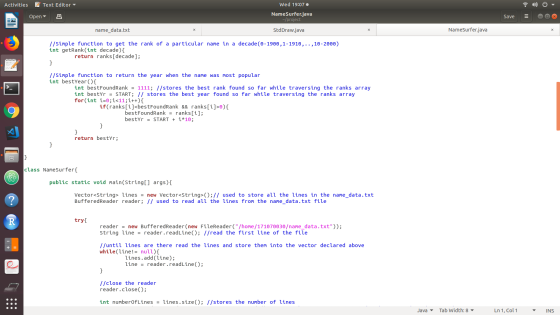

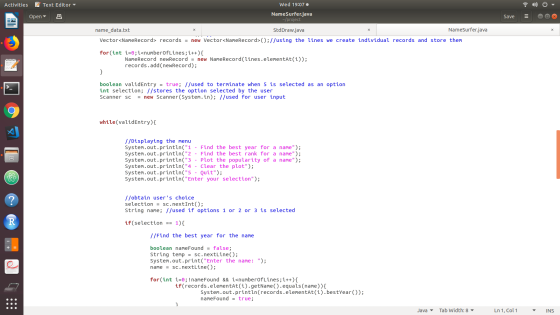

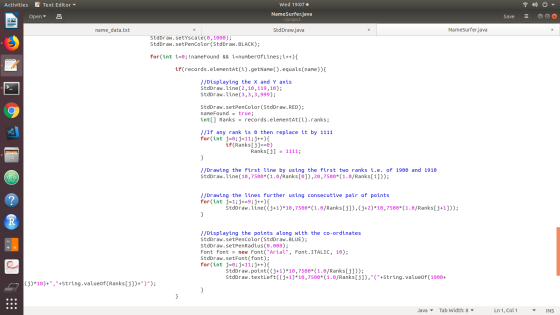

SCREENSHOTS:

OUTPUT:

In the above project ,I have created a project directory in which I have two files namely NameSurfer.java and the other one is StdDraw.java. Both of these java files have as their first lines - 'package project' so that I could use StdDraw in NameSurfer class.
