Two blocks are connected by a light cord on a pulley. Block 1 has a mass...

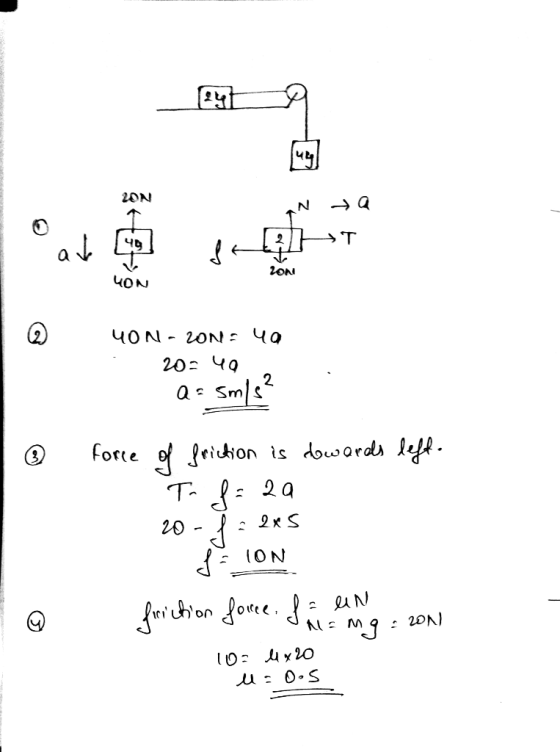

Two blocks are connected by a light cord on a pulley. Block 1 has a mass of 2.0 kg and is being pulled along a rough surface. Block 2 hangs from the same cord and has a mass of 4.0 kg. Assume the cord does not stretch and the pulley is light and frictionless. The magnitude of the tension in the rope is 20 N.
1.) Draw a free body diagram of for each block
2.) What is the magnitude of the acceleration experienced by each block?
3.) What is the magnitude and direction of the force of friction acting on Block 1?
4.) What is the coefficient of friction between block 1 and the surface?
Homework Answers
