How do you tell if a parallel LCR circuit is more capacitive, inductive, or reactive?

Question

Question

engineering Electrical-Engineering

Answer 1

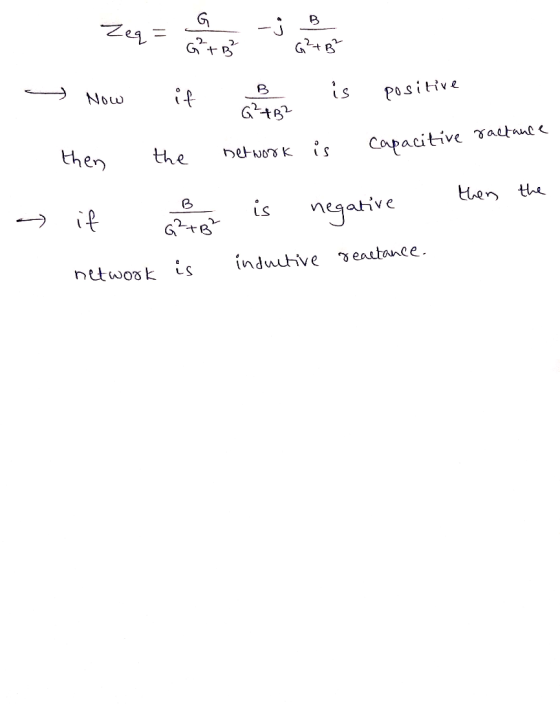

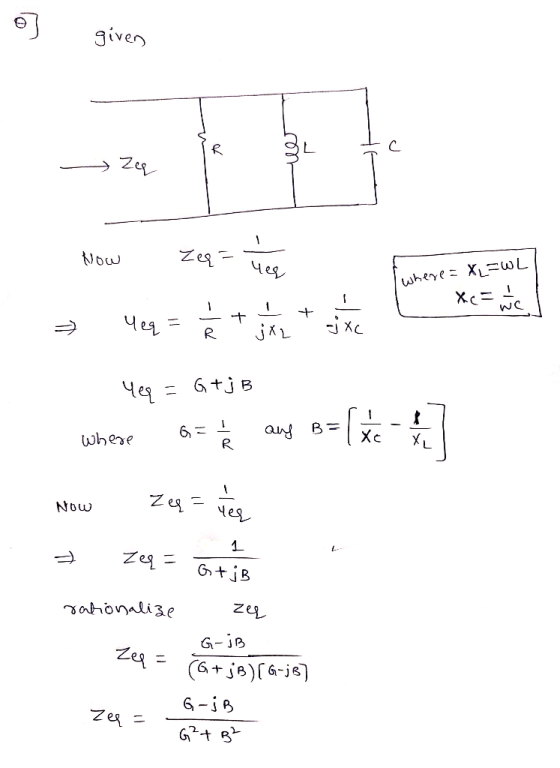

Answer #1

Answer 2
