Three charges are at the corners of a rectangle of sides 4.0 cm and 6.0 cm....

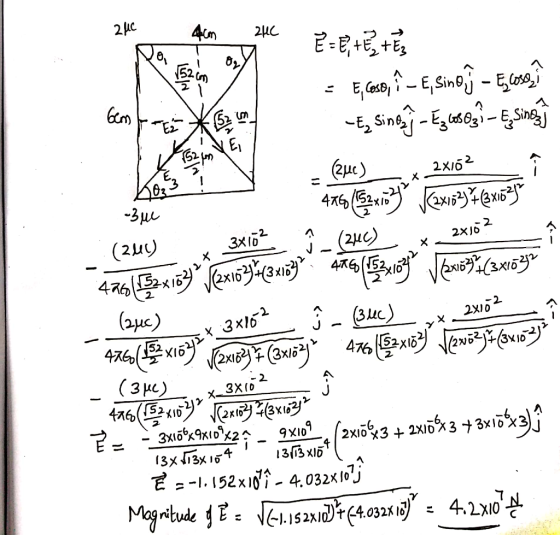

Three charges are at the corners of a rectangle of sides 4.0 cm and 6.0 cm. The charges at the top corners are both 2.0 µC (they are separated by 4.0 cm) and the third charge at the bottom left corner is – 3.0 µC. Calculate the electric field in the middle of the rectangle.
Homework Answers
Add Answer to:
Three charges are at the corners of a rectangle of sides 4.0 cm
and 6.0 cm....
1. Three point-like charges are placed at the corners of a rectangle as shown in the...
1. Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 20.0 cm and b = 52.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +1.30 µC, q22 = +4.10 µC, q33 = −3.70 µC.
2. Two point-like charges are placed at the corners of a square
as shown in the figure, a = 48.0 cm. Find the magnitude of the
electric field at...
Three point-like charges are placed at the corners of a rectangle as shown in the figure,...
Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 20.0 cm and b = 56.0 cm. Find the magnitude of the electric force exerted on the charge q 1 . Let q 1 = −1.20 µC, q 2 = −4.20 µC, q 3 = −5.20 µC. q1 is in top left corner q2 top right corner and q3 is bottom right corner
Three point-like charges are placed at the corners of a rectangle, a = 20.0 cm and...
Three point-like charges are placed at the corners of a
rectangle, a = 20.0 cm and b = 56.0 cm. Find the magnitude of the
electric force exerted on the charge q1. Let q1 = −1.20 µC, q2 =
−4.20 µC, q3 = −5.20 µC. q1 is at the top left. q2 is top right and
q3 bottom right.
5.43 N
Four point charges of equal magnitude Q=35 nC are placed on the corners of a rectangle of sides D1=28 cm and D2=7 cm.
Four point charges of equal magnitude Q=35 nC are placed on the corners of a rectangle of sides D1=28 cm and D2=7 cm. The charges on the left side of the rectangle are positive while the charges on the right side of the rectangle are negative Use a coordinate system fixed to the bottom left hand charge, with positive directions as shown in the figure.Part (a) Which of the following represents a free-body diagram for the charge on the lower...
Three point-like charges are placed at the corners of a rectangle as shown in the figure,...
Three point-like charges are
placed at the corners of a rectangle as shown in the figure, a =
22.0 cm and b = 68.0 cm. Find the magnitude of the electric field
at the empty corner. Let q 1 = +24.0 µC, q 2 = ?31.0 µC, q 3 =
+35.0 µC.
5. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 680 cm. Find the...
Four identical charged particles (q = +10.9 µC) are located on the corners of a rectangle...
Four identical charged
particles (q = +10.9 µC) are located on the corners of a rectangle
as shown in the figure below. The dimensions of the rectangle are L
= 57.0 cm and W = 13.5 cm.(a) Calculate the magnitude of the total
electric force exerted on the charge at the lower left corner by
the other three charges.(b) Calculate the direction of the total
electric force exerted on the charge at the lower left corner by
the other three...
Four point charges of equal magnitude Q=55 nC are placed on the corners of a rectangle of sides D1=28 cm and D2 = 7 cm
Problem 9: Four point charges of equal magnitude Q=55 nC are placed on the corners of a rectangle of sides D1=28 cm and D2 = 7 cm. The charges on the left side of the rectangle are positive while the charges on the right side of the rectangle are negative. Use a coordinate system fixed to the bottom left hand charge, with positive directions as shown in the figurePart (a) Which of the following represents a free-body diagram for the...
1.Charges of 4.0 μC and −6.0 μC are placed at two corners of an equilateral triangle...
1.Charges of 4.0 μC and −6.0 μC are placed at two corners of an equilateral triangle with sides of 0.10 m. At the third corner, what is the electric field magnitude created by these two charges? Draw the figure and show your work
Four point charges of equal magnitude Q = 55 nC are placed on the corners of a rectangle of sides D1 =27 cm and D2 =5 cm.
Problem 9: Four point charges of equal magnitude Q = 55 nC are placed on the corners of a rectangle of sides D1 =27 cm and D2 =5 cm. The charges on the left side of the rectangle are positive while the charges on the right side of the rectangle are negative. Use a coordinate system fixed to the bottom left hand charge, with positive directions as shown in the figure. Part (a) Which of the following represents a free-body diagram for...
Two point-like charges are placed at the corners of a square , a = 34.0 cm....
Two point-like charges are placed at the corners of a square , a = 34.0 cm. Find the magnitude of the electric field at the bottom left corner. Let q 1 = −1.40 µC, and q 2 = −3.00 µC. q1 is top right corner and q2 is bottom right corner.
1. Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 20.0 cm and b = 52.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +1.30 µC, q22 = +4.10 µC, q33 = −3.70 µC.
2. Two point-like charges are placed at the corners of a square
as shown in the figure, a = 48.0 cm. Find the magnitude of the
electric field at...
Three point-like charges are placed at the corners of a
rectangle, a = 20.0 cm and b = 56.0 cm. Find the magnitude of the
electric force exerted on the charge q1. Let q1 = −1.20 µC, q2 =
−4.20 µC, q3 = −5.20 µC. q1 is at the top left. q2 is top right and
q3 bottom right.
5.43 N
Three point-like charges are
placed at the corners of a rectangle as shown in the figure, a =
22.0 cm and b = 68.0 cm. Find the magnitude of the electric field
at the empty corner. Let q 1 = +24.0 µC, q 2 = ?31.0 µC, q 3 =
+35.0 µC.
5. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 680 cm. Find the...
Four identical charged
particles (q = +10.9 µC) are located on the corners of a rectangle
as shown in the figure below. The dimensions of the rectangle are L
= 57.0 cm and W = 13.5 cm.(a) Calculate the magnitude of the total
electric force exerted on the charge at the lower left corner by
the other three charges.(b) Calculate the direction of the total
electric force exerted on the charge at the lower left corner by
the other three...
