Air at 40.4 oC and 40% relative humidity (RH) is cooled at a constant pressure of...
Air at 40.4 oC and 40% relative humidity (RH) is cooled at a constant pressure of 1 atm to 14 oC in an air cooler.

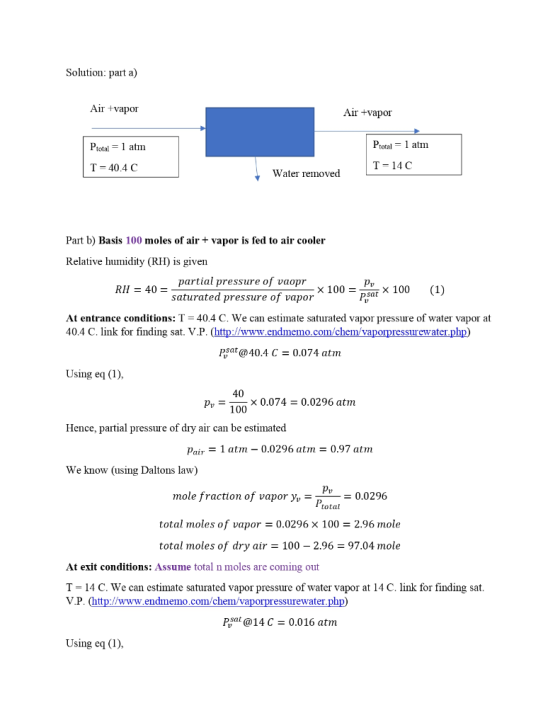

a. Draw and label the process flow diagram of the above process.

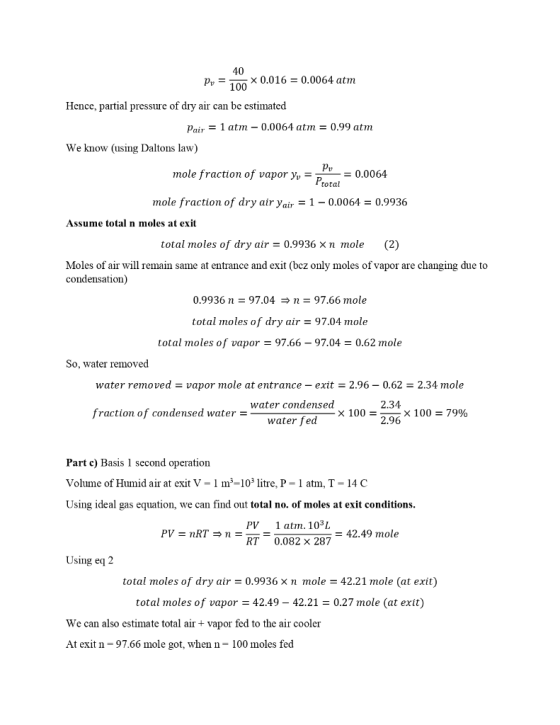

b. Determine the fraction of the condensed water.

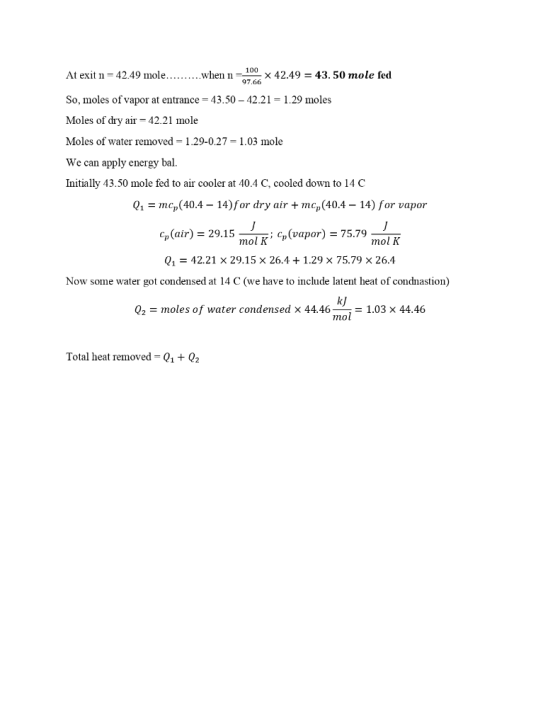

c. Determine the rate at which heat (kJ/s) must be removed to deliver 1 m3/s of humid air at the final condition.
d. If the humid air is not saturated, estimate the rate of heat (kJ/s) that must be removed to deliver 1 m3/s of the humid air at RH=40%.
Homework Answers
Add Answer to:
Air at 40.4 oC and 40% relative humidity (RH) is cooled at a
constant pressure of...
An air conditioner removes hot air at 35 °C and 70 % relative humidity from the...
An air conditioner removes hot air at 35 °C and 70 % relative humidity from the atmosphere and delivers cool air at 20 °C and a constant pressure of 1 atm. A. Using the psychrometric chart, determine the fraction of water that condenses from the humid air. B. Determine the rate at which heat must be removed from the system in order to deliver 20m3/min of humid air to a home.
Air enters a window air conditioner at 1 atm, 30 oC, and 80 percent relative humidity...
Air enters a window air conditioner at 1 atm, 30 oC, and 80 percent relative humidity at a rate of 10 m3/min, and it leaves as saturated air at 15 oC. Part of the moisture in the air that condenses during the process is also removed at 15 oC. Use this information to answer the following question. choose the nearest value given in (a) – (e). The heat removal rate (kW) is
Problem 7 O/5 points (0%) Humid air at 1 atm, 42 °C dry bulb and 55 % relative humidity is cooled...
Problem 7 O/5 points (0%) Humid air at 1 atm, 42 °C dry bulb and 55 % relative humidity is cooled at constant pressure to a temperature 9 °C below its dew-point temperature. Sketch the psychrometric diagram for the process and determine the heat transfer from the air o kJ/kg dry air Cooling coils T2 φ2 T1 ф! 101.3 kPa i H-4」+'Condensate Condensate removal Now Problem (resets attempts) Resets Remaining: 10 Attempts Remaining: 10 Submit
Problem 7 O/5 points (0%)...
Air enters a cooling section of 40-cm-diameter at 1 atm, 32°C, and 30 percent relative humidity...
Air enters a cooling section of 40-cm-diameter at 1 atm, 32°C, and 30 percent relative humidity at 18 m/s. Heat is removed from the air at a rate of 1200 kJ/min. Determine: (a) the exit temperature (b) the exit relative humidity of the air (c) the exit velocity.
11-35.A moist air mixture with a dry bulb temperature of 48°C, a relative humidity of 40...
11-35.A moist air mixture with a dry bulb temperature of 48°C, a relative humidity of 40 percent, and a total pressure of 160 kPa is contained in a rigid vessel having a volume of 1.65 m3. The air is cooled until the dry bulb temperature reaches 23°C. Determine the amount of heat transferred, the final pressure of the air, and the amount of water vapor condensed during the process.
In a device to produce drinking water, humid air at 32°C, 90% relative humidity and 1...
In a device to produce drinking water, humid air at 32°C, 90% relative humidity and 1 atm is cooled to 5°C at constant pressure.. If the duty on the unit is 2,200 kW of heat is removed from the humid air, how much water is produced and what is the volumetric flow rate of air entering the unit? Data: Air at 32°C has H- o.204 kJ/mol and at 5°C has H 576 kJ/mol H of steam can be found on...
Atmospheric air at 32°C and 70% relative humidity passes through a cooling section in an air-conditioning...
Atmospheric air at 32°C and 70% relative humidity passes through a cooling section in an air-conditioning duct where the air is cooled below its dew point and some of the water is removed. The air then passes over a heating section where heat is added until the final temperature is 22°C and the relative humidity is 45%. Assume the process occurs at constant pressure of 1 atm. Using the psychrometric chart, determine: (a) The amount of water removed in the...
2. An air conditioning system is to take in air at latm 33C, 70% relative humidity...
2. An air conditioning system is to take in air at latm 33C, 70% relative humidity and flow rate of 50m3/min and deliver it 23C and 60% relative humidity. The air first flows over the cooling coils, where it is cooled and dehumidified, and then over the resistance heating wires, where it is heated to the desired temperature. Assuming that the condensate is removed from the cooling section at 10C, determine: a) The temperature of the air before it enters...
The atmospheric air 32 °C dry bulb temperature and 70% relative humidity supplied to the cooling...
The atmospheric air 32 °C dry bulb temperature and 70% relative humidity supplied to the cooling coil at a rate of 45m3/min. The air cooling to the saturated state and leaving at a temperature of 16 °C. Determine: a- Specific humidity at each state. b- Wet bulb and dew point temperatures at the final state c- Final relative humidity. d- Mass of water condensed. e- Rate of heat removed from the air in kW. f- Show the process on Psychrometric...
Moist air enters a duct at 10 °C, 80% relative humidity, and a volumetric flow rate...
Moist air enters a duct at 10 °C, 80% relative humidity, and a volumetric flow rate of 150 m3/min. The mixture is heated as it flows through the duct and exits at 30 °C. No moisture is added or removed and the mixture stays at 1 atm. Determine the rate of heat transfer and the relative humidity at the exit.
Problem 7 O/5 points (0%) Humid air at 1 atm, 42 °C dry bulb and 55 % relative humidity is cooled at constant pressure to a temperature 9 °C below its dew-point temperature. Sketch the psychrometric diagram for the process and determine the heat transfer from the air o kJ/kg dry air Cooling coils T2 φ2 T1 ф! 101.3 kPa i H-4」+'Condensate Condensate removal Now Problem (resets attempts) Resets Remaining: 10 Attempts Remaining: 10 Submit
Problem 7 O/5 points (0%)...
11-35.A moist air mixture with a dry bulb temperature of 48°C, a relative humidity of 40 percent, and a total pressure of 160 kPa is contained in a rigid vessel having a volume of 1.65 m3. The air is cooled until the dry bulb temperature reaches 23°C. Determine the amount of heat transferred, the final pressure of the air, and the amount of water vapor condensed during the process.
In a device to produce drinking water, humid air at 32°C, 90% relative humidity and 1 atm is cooled to 5°C at constant pressure.. If the duty on the unit is 2,200 kW of heat is removed from the humid air, how much water is produced and what is the volumetric flow rate of air entering the unit? Data: Air at 32°C has H- o.204 kJ/mol and at 5°C has H 576 kJ/mol H of steam can be found on...
2. An air conditioning system is to take in air at latm 33C, 70% relative humidity and flow rate of 50m3/min and deliver it 23C and 60% relative humidity. The air first flows over the cooling coils, where it is cooled and dehumidified, and then over the resistance heating wires, where it is heated to the desired temperature. Assuming that the condensate is removed from the cooling section at 10C, determine: a) The temperature of the air before it enters...
