A conducting sphere with radius ? = 5 ?? has a charge ? = 8 ??....
A conducting sphere with radius ? = 5 ?? has a charge ? = 8 ??. It is placed at the center of a neutral conducting shell with inner radius ? = 10 ?? and outer radius ? = 15 ??, as shown in the diagram at right.

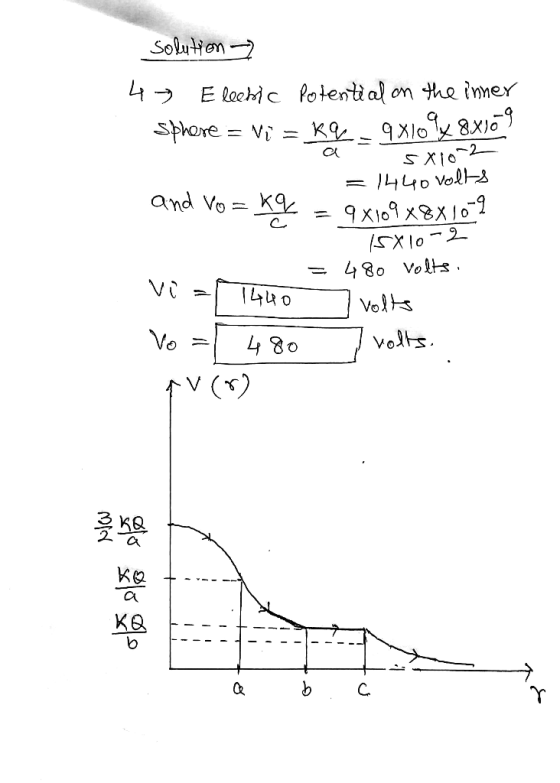

4. Let the electric potential be equal to zero at infinity. What are the electric potentials of the inner sphere and outer shell?
5. Sketch a graph of the electric potential as a function of the radial distance from the center of the sphere. Be sure to include the behavior of the potential in all four regions – Inside the inner sphere, between the sphere and the shell, in the bulk of the shell, and outside the shell.
Homework Answers
A charge, q, is uniformly distributed through a sphere of radius R. Surrounding the sphere is...
A charge, q, is uniformly distributed through a sphere of radius R. Surrounding the sphere is a conducting shell having inner radius 2R and outer radius 3R. The shell has a charge of -4q placed on it. a. What is the electric field and electric potential, relative to V = 0 at infinity at r for r > 3R? b. What is the electric field and electric potential at r for 3R > r > 2R? c. What is the...
Source charge O inside a conducting shell of inner radius Ry and outer radius R2 a...
Source charge O inside a conducting shell of inner radius Ry and outer radius R2 a conducting shell of inner radius R1 and outer radius R2 +0 (a) Sketch the distribution of charge on the inner and outer surfaces of the conducting shell (assume the conducting shell is neutral) (b) Determine the magnitude of the electric field in the following regions: 0<r<R1 R1 <r<R2
Figure 27.33 shows a charge (+ q) on a uniform conducting hollow sphere of radius a...
Figure 27.33 shows a charge (+ q) on a uniform conducting hollow sphere of radius a and placed at the center of a conducting spherical shell of inner radius b and outer radius c. The outer spherical shell carries a charge (- q). What is the charge on the outer surface (c) of the shell. Use Gauss' law to find E(r) at positions: within the conducting spherical (r < a); between the sphere and the shell (a<r< b); inside the...
A solid insulating sphere of radius a carries a net positive charge +2Q, uniformity distributed throughout...
A solid insulating sphere of radius a carries a net positive charge +2Q, uniformity distributed throughout its volume. Concentric with this sphere is a conducting spherical shell with inner radius b and outer radius c, having a net charge of -3Q. Let the variable r represent the radial variable defined from the center of the sphere to an arbitrary point of interest defined by the following questions. A) Derive an expression for the electric field only in terms of the...
A uniformly charged non-conducting sphere of radius a is placed at the center of a spherical...
A uniformly charged non-conducting sphere of radius a is placed at the center of a spherical conducting shell of inner radius b and outer radius c. A charge +Q is distributed uniformly throughout the inner sphere. The outer shell has charge -Q. Using Gauss' Law: a) Determine the electric field in the region r< a b) Determine the electric field in the region a < r < b c) Determine the electric field in the region r > c d)...
A solid conducting sphere of radius 2 cm has a charge of 8 mu C. A...
A solid conducting sphere of radius 2 cm has a charge of 8 μC. A conducting spherical shell of inner radius 4 cm and outer radius 5 cm is concentric with the solid sphere and has a charge of -4 μC Find: a) The electric field at r = 1 cm from the center of this charge configuration. b) The electric field at r = 3 cm from the center of this charge configuration c) The electric field at r =...
A small, solid conducting sphere of radius r1 sits inside a hollow conducting spherical shell of...
A small, solid conducting sphere of radius r1 sits inside a hollow conducting spherical shell of inner radius r2 and outer radius r3. A potential difference of magnitude V is placed across the inner and outer conductors so that there is a net charge of -Q on the inner conductor and +Q on the outer conductor. Suppose a thin but finite thickness conducting shell was placed between the sphere and the outer shell. This extra shell is electrically isolated. Would...
A conducting spherical shell with inner radius a and outer radius b has a positive point...
A conducting spherical shell with inner radius a and outer radius b has a positive point charge Q located at its center. The total charge on the shell is -3Q, and it is insulated from its surroundings (Fig. P22.44) (a) Derive expressions for the electric-field magnitude E in terms of the distance from the center for the regions r < a, a < r < b, and r > b. What is the surface charge density (b) on the inner...
A conducting sphere of radius a has a charge of Q_1 and a non-conducting shell of...
A conducting sphere of radius a has a charge of Q_1 and a
non-conducting shell of inner radius b and outer radius c has a
charge of Q_2. The volume charge density of the non-conducting
shell is given by ρ and is given to be constant. Determine the
volume charge density ρ of the non-conducting shell. Determine the
electric field in the four regions. (r < a, a ≤ r ≤
b, b ≤ r ≤ c, and r > c). Show all...
A non-conducting thick spherical shell with inner radius a = 5 cm and outer radius b...
A non-conducting thick spherical shell with inner radius a = 5 cm and outer radius b = 10 cm has a uniformly distributed volume charge density of p = 1.3 nC/m2. a) What is the total charge on the shell? Hint: think of the shell as a solid sphere with a volume in the center that's missing. b) Calculate the maximum electric field strength. c) Calculate the electric field at r = 2 cm. d) Calculate a symbolic equation for...
Source charge O inside a conducting shell of inner radius Ry and outer radius R2 a conducting shell of inner radius R1 and outer radius R2 +0 (a) Sketch the distribution of charge on the inner and outer surfaces of the conducting shell (assume the conducting shell is neutral) (b) Determine the magnitude of the electric field in the following regions: 0<r<R1 R1 <r<R2
Figure 27.33 shows a charge (+ q) on a uniform conducting hollow sphere of radius a and placed at the center of a conducting spherical shell of inner radius b and outer radius c. The outer spherical shell carries a charge (- q). What is the charge on the outer surface (c) of the shell. Use Gauss' law to find E(r) at positions: within the conducting spherical (r < a); between the sphere and the shell (a<r< b); inside the...
A small, solid conducting sphere of radius r1 sits inside a hollow conducting spherical shell of inner radius r2 and outer radius r3. A potential difference of magnitude V is placed across the inner and outer conductors so that there is a net charge of -Q on the inner conductor and +Q on the outer conductor. Suppose a thin but finite thickness conducting shell was placed between the sphere and the outer shell. This extra shell is electrically isolated. Would...
A conducting sphere of radius a has a charge of Q_1 and a
non-conducting shell of inner radius b and outer radius c has a
charge of Q_2. The volume charge density of the non-conducting
shell is given by ρ and is given to be constant. Determine the
volume charge density ρ of the non-conducting shell. Determine the
electric field in the four regions. (r < a, a ≤ r ≤
b, b ≤ r ≤ c, and r > c). Show all...
A non-conducting thick spherical shell with inner radius a = 5 cm and outer radius b = 10 cm has a uniformly distributed volume charge density of p = 1.3 nC/m2. a) What is the total charge on the shell? Hint: think of the shell as a solid sphere with a volume in the center that's missing. b) Calculate the maximum electric field strength. c) Calculate the electric field at r = 2 cm. d) Calculate a symbolic equation for...
