A student makes a short electromagnet by winding 560 turns of wire around a wooden cylinder...

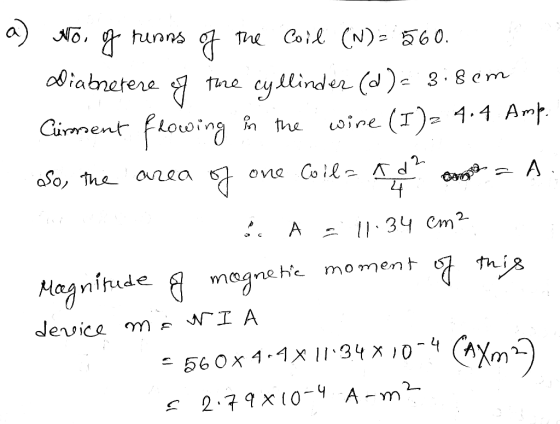

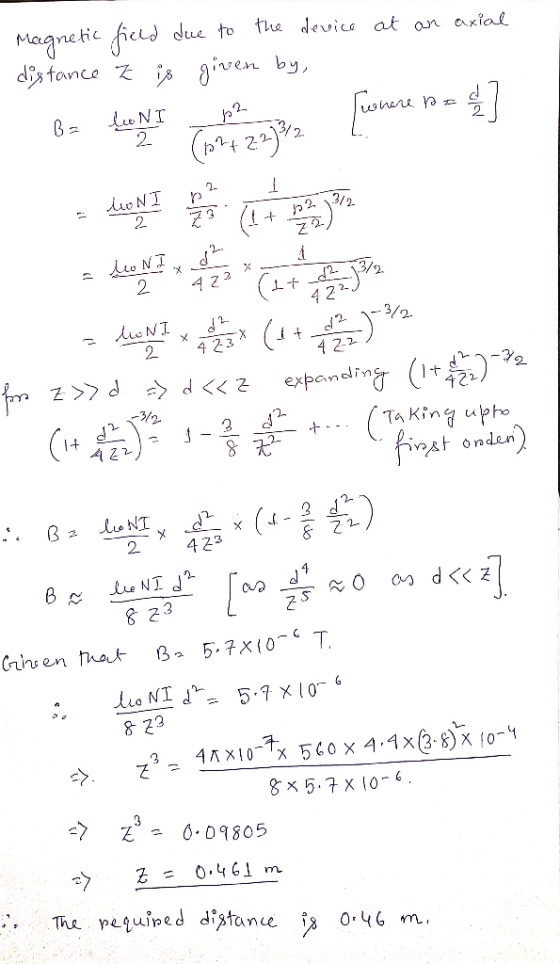

A student makes a short electromagnet by winding 560 turns of wire around a wooden cylinder of diameter d = 3.8 cm. The coil is connected to a battery producing a current of 4.4 A in the wire. (a) What is the magnitude of the magnetic dipole moment of this device? (b) At what axial distance z >> d will the magnetic field have the magnitude 5.7 µT (approximately one-tenth that of Earth's magnetic field)? (a) Number Enter your answer for part (a) in accordance to the question statement Units Choose the answer for part (a) from the menu in accordance to the question statement
Homework Answers
Add Answer to:
A student makes a short electromagnet by winding 560 turns of
wire around a wooden cylinder...
A student makes a short electromagnet by winding 540 turns of wire around a wooden cylinder...
A student makes a short electromagnet by winding 540 turns of wire around a wooden cylinder of diameter d = 2.1 cm. The coil is connected to a battery producing a current of 5.1 A in the wire. (a) What is the magnitude of the magnetic dipole moment of this device? (b) At what axial distance z >> d will the magnetic field have the magnitude 3.9 µT (approximately one-tenth that of Earth's magnetic field)?
A student makes a short electromagnet by winding 440 turns of wire around a wooden cylinder...
A student makes a short electromagnet by winding 440 turns of wire around a wooden cylinder of diameter d = 2.7 cm. The coil is connected to a battery producing a current of 5.9 A in the wire. (a) What is the magnitude of the magnetic dipole moment of this device? (b) At what axial distance z >> d will the magnetic field have the magnitude 7.3 µT (approximately one-tenth that of Earth's magnetic field)?
A student makes a short electromagnet by winding 200 turns of wire around a wooden cylinder...
A student makes a short electromagnet by winding 200 turns of wire around a wooden cylinder of diameter d = 5.00 cm. The coil is connected to a battery producing a current of 3.00 A in the wire. What is the magnitude of the magnetic dipole moment of this device? 4.712A*m^2 Submit Answer Incorrect. Tries 3/10 Previous Tries At what axial distance z >>d will the magnetic field have the magnitude 5.00 uT (approximately one-tenth that of Earth's magnetic field?
Chapter 29, Problem 035 The figure shows wire 1 in cross section; the wire is long...
Chapter 29, Problem 035 The figure shows wire 1 in cross section; the wire is long and straight, carries a current of 4.08 mA out of the page, and is at distance di = 2.67 cm from a surface. Wire 2, which is parallel to wire 1 and also long, is at horizontal distance d2 = 5.30 cm from wire 1 and carries a current of 6.98 mA into the page. What is the x component of the magnetic force...
A circular coil has a 8.24 cm radius and consists of 39.0 closely wound turns of...
A circular coil has a 8.24 cm radius and consists of 39.0 closely wound turns of wire. An externally produced magnetic field of magnitude 3.08 mT is perpendicular to the coil. (a) If no current is in the coil, what magnetic flux links its turns? (b) When the current in the coil is 5.53 A in a certain direction, the net flux through the coil is found to vanish. What is the inductance of the coil? (a) Number Enter your...
A square wire loop with 1.7 m sides is perpendicular to a uniform magnetic field, with...
A square wire loop with 1.7 m sides is perpendicular to a uniform magnetic field, with half the area of the loop in the field as shown in the figure. The loop contains an ideal battery with emf Script uppercase E. = 19 V. If the magnitude of the field varies with time according to B = 0.040 - 0.85 t, with B in teslas and t in seconds, what are (a) the net emf in the circuit and (b)...
A long copper wire is wound around a hollow cardboard cylinder to create a solenoid of...
A long copper wire is wound around a hollow cardboard cylinder to create a solenoid of length 25.8 cm. When 4 A of current flows through the coil, a magnetic field of magnitude 2.25 mT is detected at the center of solenoid. Use this information to determine the number of turns (or loops) of the solenoid. Number of Turus: Enter an integer or decimal number more..
Question 2 --/2 Our big lecture-table solenoid has 560 turns, each with 60 mm diameter, spaced...
Question 2 --/2 Our big lecture-table solenoid has 560 turns, each with 60 mm diameter, spaced tightly to only be 160 mm Long (left-to-right). The standard power-supply only needs 10.2 Volt to push 6.0 A current thru the solenoid wire, clockwise as seen from the right When turning off the power supply, we adjust the current to zero in 125 millisec. * read this * → [a) show that the magnetic field in the solenoid space used to be 0.02639...
QUESTION 2 Our big lecture-table solenoid has 560 turns, each with 60 mm diameter, spaced tightly...
QUESTION 2 Our big lecture-table solenoid has 560 turns, each with 60 mm diameter, spaced tightly to only be 160 mm Long (left-to-right) The standard power supply only needs 10 2 Volt to push 6.0 A current thru the solenoid wire, clockwise as seen from the right When turning off the power supply, we adjust the current to zero in 125 millisec * read this - (a) show that the magnetic field in the solenoid space used to be 0.02639...
A student makes a short electromagnet by winding 200 turns of wire around a wooden cylinder of diameter d = 5.00 cm. The coil is connected to a battery producing a current of 3.00 A in the wire. What is the magnitude of the magnetic dipole moment of this device? 4.712A*m^2 Submit Answer Incorrect. Tries 3/10 Previous Tries At what axial distance z >>d will the magnetic field have the magnitude 5.00 uT (approximately one-tenth that of Earth's magnetic field?
Chapter 29, Problem 035 The figure shows wire 1 in cross section; the wire is long and straight, carries a current of 4.08 mA out of the page, and is at distance di = 2.67 cm from a surface. Wire 2, which is parallel to wire 1 and also long, is at horizontal distance d2 = 5.30 cm from wire 1 and carries a current of 6.98 mA into the page. What is the x component of the magnetic force...
A long copper wire is wound around a hollow cardboard cylinder to create a solenoid of length 25.8 cm. When 4 A of current flows through the coil, a magnetic field of magnitude 2.25 mT is detected at the center of solenoid. Use this information to determine the number of turns (or loops) of the solenoid. Number of Turus: Enter an integer or decimal number more..
Question 2 --/2 Our big lecture-table solenoid has 560 turns, each with 60 mm diameter, spaced tightly to only be 160 mm Long (left-to-right). The standard power-supply only needs 10.2 Volt to push 6.0 A current thru the solenoid wire, clockwise as seen from the right When turning off the power supply, we adjust the current to zero in 125 millisec. * read this * → [a) show that the magnetic field in the solenoid space used to be 0.02639...
QUESTION 2 Our big lecture-table solenoid has 560 turns, each with 60 mm diameter, spaced tightly to only be 160 mm Long (left-to-right) The standard power supply only needs 10 2 Volt to push 6.0 A current thru the solenoid wire, clockwise as seen from the right When turning off the power supply, we adjust the current to zero in 125 millisec * read this - (a) show that the magnetic field in the solenoid space used to be 0.02639...
