In an RC series circuit, ε = 12.0 V, R = 1.08 MΩ, and C =...

In an RC series circuit, ε = 12.0 V, R = 1.08 MΩ, and C = 2.13 µF. (a) Calculate the time constant. (b) Find the maximum charge that will appear on the capacitor during charging. (c) How long does it take for the charge to build up to 17.7 µC?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

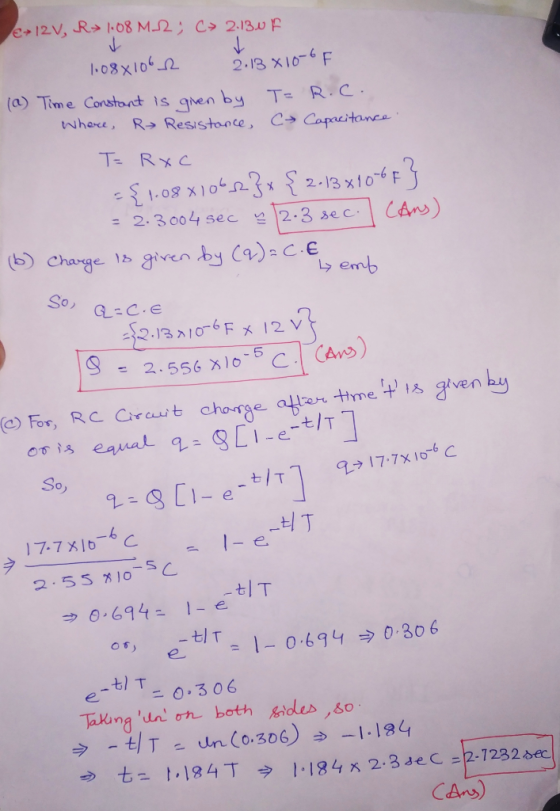

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
In an RC series circuit, ε = 12.0 V, R = 1.08 MΩ, and C =...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Consider a series RC circuit as in the figure below for which R = 2.00 MΩ,...

    Consider a series RC circuit as in the figure below for which R = 2.00 MΩ, C = 2.00 µF, and ε = 25.0 V. (a) Find the time constant of the circuit. s (b) What is the maximum charge on the capacitor after the switch is thrown closed? µC (c) Find the current in the resistor 10.0 s after the switch is closed. µA

  • Consider a series RC circuit as in the figure below for which R = 9.00 MΩ,...

    Consider a series RC circuit as in the figure below for which R = 9.00 MΩ, C = 9.00 µF, and e m f = 29.0 V. Consider a series RC circuit as in the figure below for which R = 9.00 MΩ, C = 9.00 µF, and = 29.0 V. (a) Find the time constant of the circuit. 1(No Response) s (b) Find the maximum charge on the capacitor after the switch is thrown closed. 2(No Response) µC (c)...

  • In an RC series circuit, emf E = 12.0 V, resistance R = 1.57 MS2, and...

    In an RC series circuit, emf E = 12.0 V, resistance R = 1.57 MS2, and capacitance C = 1.84 uF. Calculate the time constant. 2.89 s You are correct. Previous Tries Your receipt no. is 157-6375 Find the maximum charge that will appear on the capacitor during charging. 2.21x10-5 c You are correct. Your receipt no. is 157-63 ) 52.62 Previous Tries How long does it take for the charge to build up to 16.9 PC? 3.75s Submit Answer...

  • Consider a series RC circuit as in the figure below for which R = 3.00 MΩ,...

    Consider a series RC circuit as in the figure below for which R = 3.00 MΩ, C = 4.00 µF, and ε = 31.0 V. (a) Find the time constant of the circuit. (b) What is the maximum charge on the capacitor after the switch is thrown closed? (c) Find the current in the resistor 10.0 s after the switch is closed. S CE R w + 3

  • In an RC series circuit, V = 24 0 V, resistance R = 22.0 K ohm,...

    In an RC series circuit, V = 24 0 V, resistance R = 22.0 K ohm, and capacitance C = 4.7 muF. (a) Calculate the time constant. (b) Find the maximum charge that will appear on the capacitor during charging. C) How long does it take for the capacitor to reach to its 50% of its maximum charge?

  • For a charging capacitor in an RC circuit with R = 100 kΩ and C =...

    For a charging capacitor in an RC circuit with R = 100 kΩ and C = 1 µF, and in series with a battery with emf E = 12 V, (a) how long does it take for the capacitor to charge up to 80% of its final charge? (b) What is the current in the circuit at that point in time?

  • Consider a series RC circuit for which R = 2.5 MΩ, C = 8.5 μF, and...

    Consider a series RC circuit for which R = 2.5 MΩ, C = 8.5 μF, and e m f = 28 V. Find the charge on the capacitor 14 s after the switch is closed.

  • Consider a series RC circuit for which R = 2.5 MΩ, C = 7.0 μF, and...

    Consider a series RC circuit for which R = 2.5 MΩ, C = 7.0 μF, and e m f = 32 V. Find the charge on the capacitor 11 s after the switch is closed. μC

  • Consider a series RC circuit as in the figure below for which R = 2.40 MΩ,...

    Consider a series RC circuit as in the figure below for which R = 2.40 MΩ, C = 6.80 μF, and = 32.0 V. The circuit is a rectangular loop. The bottom side of the loop has a battery labeled emf ℰ, oriented with the positive terminal to the right of the negative terminal. The right side has a resistor R. The top side contains an open switch S. The left side has a capacitor C. (a) Find the time...

  • Consider an RC circuit with E = 12.0 V ,R = 180 Ω , and C...

    Consider an RC circuit with E = 12.0 V ,R = 180 Ω , and C = 45.8 μF . (a) Find the time constant for the circuit. (b) Find the maximum charge on the capacitor. (c) Find the initial current in the circuit.
