A capacitor is connected to an ac generator that has a frequency of 2.4 kHz and...

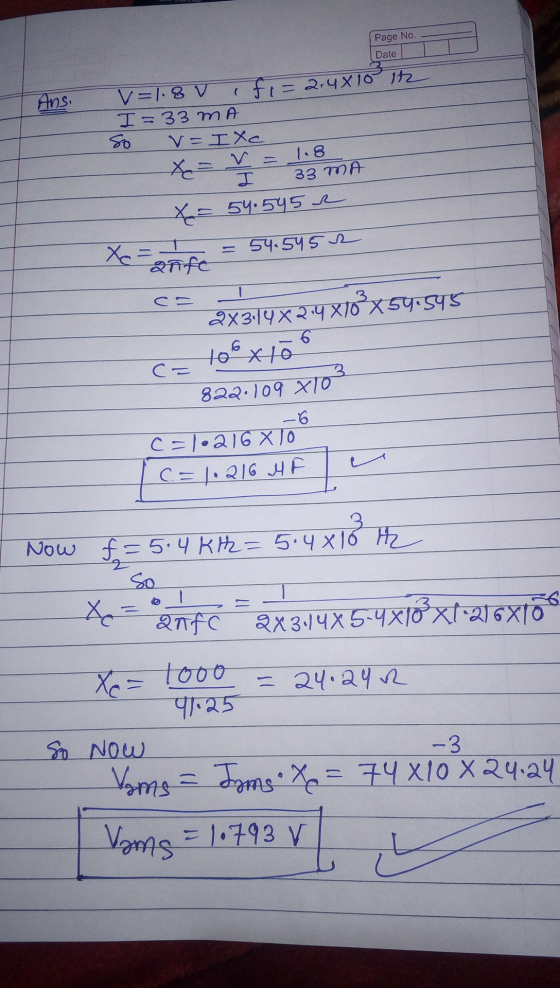

A capacitor is connected to an ac generator that has a frequency of 2.4 kHz and produces a rms voltage of 1.8 V. The rms current in the capacitor is 33 mA. When the same capacitor is connected to a second ac generator that has a frequency of 5.4 kHz, the rms current in the capacitor is 74 mA. What rms voltage does the second generator produce?
Homework Answers
Add Answer to:
A capacitor is connected to an ac generator that has a frequency
of 2.4 kHz and...
A capacitor is connected across the terminals of an ac generator that has a frequency of...
A capacitor is connected across the terminals of an ac generator that has a frequency of 444 Hz and supplies a voltage of 25 V. When a second capacitor is connected in parallel with the first one, the current from the generator increases by 0.19 A. Find the capacitance of the second capacitor.
A capacitor is connected across the terminals of an ac generator that has a frequency of...
A capacitor is connected across the terminals of an ac generator that has a frequency of 460 Hz and supplies a voltage of 26 V. When a second capacitor is connected in parallel with the first one, the current from the generator increases by 0.18 A. Find the capacitance of the second capacitor. F
An ac generator has a frequency of 7.9 kHz and a voltage of 41 V. When...
An ac generator has a frequency of 7.9 kHz and a voltage of 41 V. When an inductor is connected between the terminals of this generator, the current in the inductor is 47 mA. What is the inductance of the inductor? L =
An ac generator has a frequency of 5.5 kHz and a voltage of 30 V. When...
An ac generator has a frequency of 5.5 kHz and a voltage of 30 V. When an inductor is connected between the terminals of this generator, the current in the inductor is 30 mA. What is the inductance of the inductor? L= ?
A 120 μF capacitor is connected to an ac generator with an rms voltage of 17.0...
A 120 μF capacitor is connected to an ac generator with
an rms voltage of 17.0 V and a frequency of 130.0 Hz .
Constants I Periodic Table Part A A 120 μΡ capacitors connected to an ac generator with an rms voltage of 17.0 V and a frequency of 130.0 Hz What is the rms current in this circuit?
A 0.37 μF capacitor is connected across an AC generator that produces a peak voltage of...
A 0.37 μF capacitor is connected across an AC generator that produces a peak voltage of 9.50 V . A)What is the peak current through the capacitor if the emf frequency is 100 Hz? B)What is the peak current through the capacitor if the emf frequency is 100 kHz?
A circuit consists of a 2.00-kHz generator and a capacitor. When the rms voltage of the...
A circuit consists of a 2.00-kHz generator and a capacitor. When the rms voltage of the generator is 0.700 V , the rms current in the circuit is 0.450 mA . (a) What is the reactance of the capacitor at 2.00 kHz? (b) What is the capacitance of the capacitor? (c) If the rms voltage is maintained at 0.700 V , what is the rms current at 4.00 kHz? (d) If the rms voltage is maintained at 0.700 V ,...
A capacitor is connected across an ac generator whose frequency is 860 Hz and whose peak...
A capacitor is connected across an ac generator whose frequency is 860 Hz and whose peak output voltage is 120 V. The rms current in the circuit is 2.5 A. (a) What is the capacitance of the capacitor? (b) What is the magnitude of the maximum charge on one plate of the capacitor? Note: The ac current and voltage are rms values and power is an average value unless indicated otherwise.
A 21 nF capacitor is connected across an AC generator that produces a peak voltage of...
A 21 nF capacitor is connected across an AC generator that produces a peak voltage of 4.0 V. At what frequency f is the peak current 44 mA?
A 100 μF capacitor is connected to an ac generator with an rms voltage of 23.0...
A 100 μF capacitor is connected to an ac generator with an rms voltage of 23.0 V and a frequency of 140.0 Hz . a) What is the Current rms
A capacitor is connected across the terminals of an ac generator that has a frequency of 460 Hz and supplies a voltage of 26 V. When a second capacitor is connected in parallel with the first one, the current from the generator increases by 0.18 A. Find the capacitance of the second capacitor. F
A 120 μF capacitor is connected to an ac generator with
an rms voltage of 17.0 V and a frequency of 130.0 Hz .
Constants I Periodic Table Part A A 120 μΡ capacitors connected to an ac generator with an rms voltage of 17.0 V and a frequency of 130.0 Hz What is the rms current in this circuit?
