Consider two concentric insulating cylinders of infinite length. The inner cylinder is solid with radius R,...

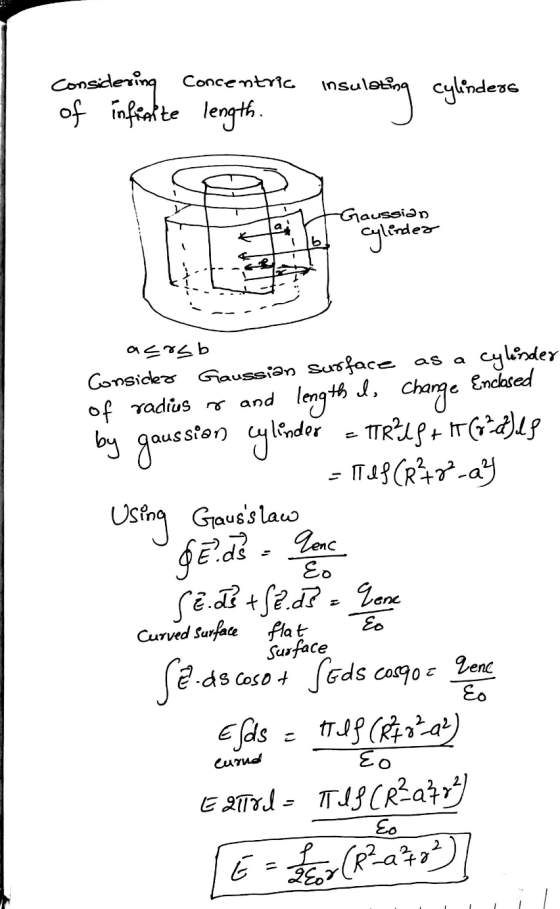

Consider two concentric insulating cylinders of infinite length. The inner cylinder is solid with radius R, while the outer cylinder is a hollow shell with inner radius a and outer radius b. Both cylinders have the same volume charge density of +ρ. Using Gauss’s Law, find the electric field as a function of r (where r = 0 at the central axis) in the interval a ≤ r < b. Note: Your final equation should be in terms of given parameters of ρ, a, b, R, and r.
Homework Answers
