A uniform electric field of magnitude 5.1 N/C passes through a circle of radius 15 cm.What...

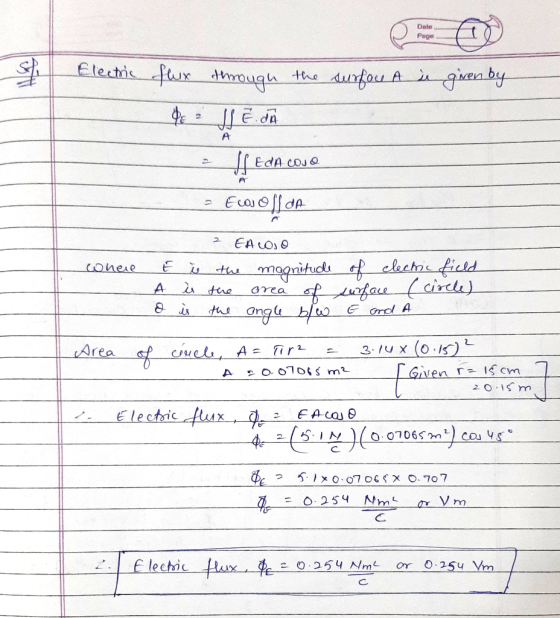

A uniform electric field of magnitude 5.1 N/C passes through a circle of radius 15 cm.What is the electric flux through the circle when its face is at 45∘ to the field lines?
Homework Answers
Add Answer to:
A uniform electric field of magnitude 5.1 N/C passes through a
circle of radius 15 cm.What...
A uniform electric field of magnitude 6.6 N/C passes through a circle of radius 13 cm....
A uniform electric field of magnitude 6.6 N/C passes through a circle of radius 13 cm. A) What is the electric flux through the circle when its face is perpendicular to the field lines? Express your answer using two significant figures. B) What is the electric flux through the circle when its face is at 45∘ to the field lines? Express your answer using two significant figures. C) What is the electric flux through the circle when its face is...
Q1) A uniform electric field of magnitude 8x 10 N/C passes through a circle of radius...
Q1) A uniform electric field of magnitude 8x 10 N/C passes through a circle of radius 13 cm. What is the electric flux through the circle when its face is (a) perpendicular to the Geld lines, (b) at 30° to the field lines, and (c) parallel to the field lines?
A flat circle of radius 0.18 is placed in a uniform electric field of magnitude 5.13×102...
A flat circle of radius 0.18 is placed in a uniform electric field of magnitude 5.13×102 N/C. What is the electric flux through the circle when its face is 45° to the field lines?
A flat circle of radius 20 cm is placed in a uniform electric field of magnitude...
A flat circle of radius 20 cm is placed in a uniform electric field of magnitude 5.7×102 N/C . What is the electric flux through the circle when its face is at 30 degrees to the field lines?
please sir, write clearly by hand Q1) A uniform electric field of magnitude 8x 102 N/C...
please sir, write clearly by hand
Q1) A uniform electric field of magnitude 8x 102 N/C passes through a circle of radius 13 cm. What is the electric flux through the circle when its face is (a) perpendicular to the Geld lines, (b) at 30° to the field lines, and (c) parallel to the field lines?
An uniform electric field, E with a magnitude of Eo N passes through a square surface...
An uniform electric field, E with a magnitude of Eo N passes through a square surface at an angle of a 41.1 degrees relative to a line on the surface, as shown in the figure below. The square measures 2m × 2m, and the flux through the surface is measured to be 24.72 m, what is the magnitude of a the electric field, Eo?
An uniform electric field, E. with a magnitude of passes through a square surface at an...
An uniform electric field, E. with a magnitude of passes through a square surface at an angle of α-32.5 degrees relative to a line on the surface, as shown in the figure below. The square measures 2m x 2m, and the flux through the surface is measured to be 21.4 What is the magnitude of the electric field, Eo? N-m
An uniform electric field, E with a magnitude of Eo passes through a square surface at...
An uniform electric field, E with a magnitude of Eo passes through a square surface at an angle of θ-56.7 degrees relative to a line on the surface, as shown in the figure below. The square measures 2m × 2m , and the flux through the surface is measured to be 23.6N.m^, What is the magnitude of the electric field, E)?
14-16 A time-varying uniform electric field exists inside a circle of radius r and is polarized...
14-16
A time-varying uniform electric field exists inside a circle of radius r and is polarized perpendicular to the page. Its strength is given by E(t) = E_0 sin(omega). Let r = 0.45 m, E_0 = 4.00 v, and omega = 200 rad/s. Find the maximum magnitude of the electric flux through the circle. a) 2.54 V middot m b) 2.01 V middot m c) 1.54 V middot m d) 1.13 V middot m Find the amplitude of the magnetic...
distance C.Calculate the electric field in A solid metal sphere or radiis 4.0m carries a total...
distance C.Calculate the electric field in A solid metal sphere or radiis 4.0m carries a total charge of 5,0 from the sphere's center of (a) 3.0m (Stand 6.0m (pt), How would the answers differ in (a) and (h) ir the sphere were a thin shell (opt) 2. A uniform electric field of magnitude 400 N/C passes through a circle of radius 10 cm. Calculate the electrolux through the circle when its face is (a) perpendicular to the field lines (5prs),...
Q1) A uniform electric field of magnitude 8x 10 N/C passes through a circle of radius 13 cm. What is the electric flux through the circle when its face is (a) perpendicular to the Geld lines, (b) at 30° to the field lines, and (c) parallel to the field lines?
please sir, write clearly by hand
Q1) A uniform electric field of magnitude 8x 102 N/C passes through a circle of radius 13 cm. What is the electric flux through the circle when its face is (a) perpendicular to the Geld lines, (b) at 30° to the field lines, and (c) parallel to the field lines?
An uniform electric field, E with a magnitude of Eo N passes through a square surface at an angle of a 41.1 degrees relative to a line on the surface, as shown in the figure below. The square measures 2m × 2m, and the flux through the surface is measured to be 24.72 m, what is the magnitude of a the electric field, Eo?
An uniform electric field, E. with a magnitude of passes through a square surface at an angle of α-32.5 degrees relative to a line on the surface, as shown in the figure below. The square measures 2m x 2m, and the flux through the surface is measured to be 21.4 What is the magnitude of the electric field, Eo? N-m
An uniform electric field, E with a magnitude of Eo passes through a square surface at an angle of θ-56.7 degrees relative to a line on the surface, as shown in the figure below. The square measures 2m × 2m , and the flux through the surface is measured to be 23.6N.m^, What is the magnitude of the electric field, E)?
14-16
A time-varying uniform electric field exists inside a circle of radius r and is polarized perpendicular to the page. Its strength is given by E(t) = E_0 sin(omega). Let r = 0.45 m, E_0 = 4.00 v, and omega = 200 rad/s. Find the maximum magnitude of the electric flux through the circle. a) 2.54 V middot m b) 2.01 V middot m c) 1.54 V middot m d) 1.13 V middot m Find the amplitude of the magnetic...
distance C.Calculate the electric field in A solid metal sphere or radiis 4.0m carries a total charge of 5,0 from the sphere's center of (a) 3.0m (Stand 6.0m (pt), How would the answers differ in (a) and (h) ir the sphere were a thin shell (opt) 2. A uniform electric field of magnitude 400 N/C passes through a circle of radius 10 cm. Calculate the electrolux through the circle when its face is (a) perpendicular to the field lines (5prs),...
