I need pseudocode based on the depth-first search to find the longest path in a DAG, assuming all edges have the same weight.

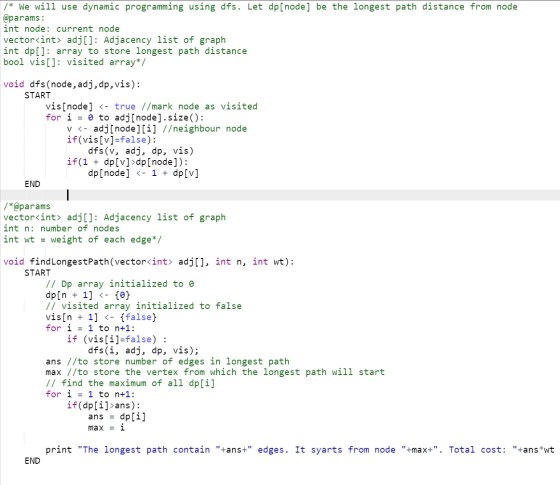

Pseudo Code:
/* We will use dynamic programming using dfs. Let dp[node] be
the longest path distance from node
@params:
int node: current node
vector<int> adj[]: Adjacency list of graph
int dp[]: array to store longest path distance
bool vis[]: visited array*/
void dfs(node,adj,dp,vis):
START
vis[node] <- true //mark node as visited
for i = 0 to adj[node].size():
v <- adj[node][i] //neighbour node
if(vis[v]=false):
dfs(v, adj, dp, vis)
if(1 + dp[v]>dp[node]):
dp[node] <- 1 + dp[v]
END
/*@params
vector<int> adj[]: Adjacency list of graph
int n: number of nodes
int wt = weight of each edge*/
void findLongestPath(vector<int> adj[], int n, int wt):
START
// Dp array initialized to 0
dp[n + 1] <- {0}
// visited array initialized to false
vis[n + 1] <- {false}
for i = 1 to n+1:
if (vis[i]=false) :
dfs(i, adj, dp,
vis);
ans //to store number of edges in longest path
max //to store the vertex from which the longest path
will start
// find the maximum of all dp[i]
for i = 1 to n+1:
if(dp[i]>ans):
ans = dp[i]
max = i
print "The longest path contain "+ans+" edges. It
syarts from node "+max+". Total cost: "+ans*wt
END
