A 33 m string has a linear mass density of 0.01 kg/m and is under a...

A 33 m string has a linear mass density of 0.01 kg/m and is under a tension of 19 N. (a) Find the frequencies of the lowest four harmonics if the string is fixed at both ends. f1 = Hz f2 = Hz f3 = Hz f4 = Hz (b) Find the frequencies of the lowest four harmonics if the string is fixed at one end and attached to a long, thin, massless thread at the other end.

f1 = Hz

f3 = Hz

f5 = Hz

f7 = Hz

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

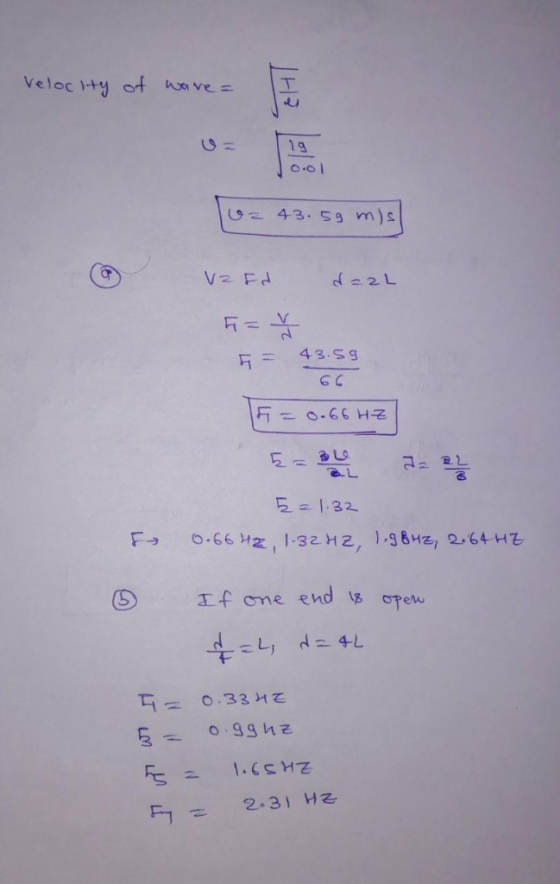

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 33 m string has a linear mass density of 0.01 kg/m and is under a...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A string is fixed at both ends. The mass of the string is 0.0010 kg and...

    A string is fixed at both ends. The mass of the string is 0.0010 kg and the length is 2.4 m. The string is under a tension of 210 N. The string is driven by a variable frequency source to produce standing waves on the string. Find the wavelengths and frequencies of the first four modes of standing waves. Express all wavelengths rounded to two decimal places and all frequencies rounded to one decimal place. λ1=____ m λ2=___ m λ3=_____...

  • A string with a mass density of 4.5 ✕ 10-3 kg/m is under a tension of...

    A string with a mass density of 4.5 ✕ 10-3 kg/m is under a tension of 400 N and is fixed at both ends. One of its resonance frequencies is 195 Hz. The next higher resonance frequency is 260 Hz. (a) What is the fundamental frequency of this string? Hz (b) Which harmonics have the given frequencies? (Enter 1 for the first harmonic, 2 for the second harmonic, etc.) 195 Hz 260 Hz (c) What is the length of the...

  • A string with a mass density of 4.2 x 10-3 kg/m is under a tension of...

    A string with a mass density of 4.2 x 10-3 kg/m is under a tension of 305 N and is fixed at both ends. One of its resonance frequencies is 1200 Hz. The next higher resonance frequency is 1350 Hz. (a) What is the fundamental frequency of this string? Hz (b) Which harmonics have the given frequencies? (Enter 1 for the first harmonic, 2 for the second harmonic, etc.) 1200 Hz 1350 Hz (C) What is the length of the...

  • A 2.8 m long wire having a mass of 0.14 kg is fixed at both ends...

    A 2.8 m long wire having a mass of 0.14 kg is fixed at both ends and is under tension of 37 N. When the nth harmonic is excited, there is a node 0.56 m from one end. (a) What is n? n = (b) What are the frequencies of the first three allowed modes of vibration? f1 = Hz f2 = Hz f3 = Hz

  • A string of linear density 6.0 g/m is under a tension of 180 N. Find the...

    A string of linear density 6.0 g/m is under a tension of 180 N. Find the frequencies of the first three harmonics? ( v=sqrt(Ft/m/L)) 3) A string of linear density 6.0 g/m is harmonics? (v FmL)) (6 pts) under a tension of 180 N. Find the frequencies of the first 3 child sees a flash of lightning and hears the rumple of thunder 5.00 seconds later. How fa

  • The lowest string of a certain guitar is 64 cm long and has a mass density...

    The lowest string of a certain guitar is 64 cm long and has a mass density of 6.3 g/m. The string is fixed at its ends by the bridge and the nut of the guitar. (a) What tension in the string is required to tune it so that its fundamental frequency matches the E2 musical note at 82.41 Hz? Give an answer in both N and lbs. (b) The effective string length can be shortened by pressing your finger down...

  • PON TEACHER PRACTICE ANOTHER A string with mass density of 1.9 x 10 kg/m is under...

    PON TEACHER PRACTICE ANOTHER A string with mass density of 1.9 x 10 kg/m is under a tension of 400 N and is fixed at both ends. One of its resonance frequencies is 405 Hz. The next higher resonance frequency is 40 Hz. (a) Vhat is the fundamental frequency of this string? Hz ( Which monies have the given frequencies? (Enter 1 for the first harmonic, 2 for the second harmonic, etc.) 45 Hz 40 HE (c) What is the...

  • A string with a mass density ? = 4.50×10-3kg/m is under a tension of F =...

    A string with a mass density ? = 4.50×10-3kg/m is under a tension of F = 224 N and is fixed at both ends. One of its resonance frequencies is 178.0 Hz. The next higher resonance frequency is 222.5 Hz. a)What is the fundamental frequency of this string? D)Now, suppose the same string is detached at one end and connected by a ring to a frictionless post, so that it can move freely. Find the wavelength of the first (fundamental)...

  • 2. Suppose you have a string with linear mass density 4.5 g/m, with two fixed ends...

    2. Suppose you have a string with linear mass density 4.5 g/m, with two fixed ends 10 Suppose you have a string with linear mass density 4.5 g apart. What is the velocity of a wave on the string if the tension of the string is supplied by a hanging mass of 275 g? 3. For the previous question, what are the three lowest frequencies that you could observe a standing wave?

  • A string has a linear density of 6.00 × 10-3 kg/m and is under a tension...

    A string has a linear density of 6.00 × 10-3 kg/m and is under a tension of 290 N. The string is 2.3 m long, is fixed at both ends, and is vibrating in the standing wave pattern (3rd harmonic). Determine the frequency of the traveling waves that make up the standing wave.
